Hydraulic Modular Platform Trailer

Supro Trailer produce heavy duty modular platform trailer to combine with Nicolas modular platform trailer, Goldhofer modular platform trailer, Cometto modular platform trailer and Scheuerle modular platform trailer


Goldhfoer Modular platform Trailer

Goldhofer multi axle modular platform trailer


Nicolas Modular Platform Trailer

Nicolas multi axle modular platform trailer

Supro Multi Axle - HydraulicModular Platfrom Trailer

Supro Trailer has own design ability on the Multi axle- hydraulic modular platform trailer. We make the hydraulic suspension be more bigger than Nicolas hydraulic modular trailer. And the height of the modular platform be more bigger! The height of the hydraulic modular platform is 2070+/-350mm.

So the loading capacity of Supro modular platform trailer is more bigger! And it could load 50 tons cargo per axle line!

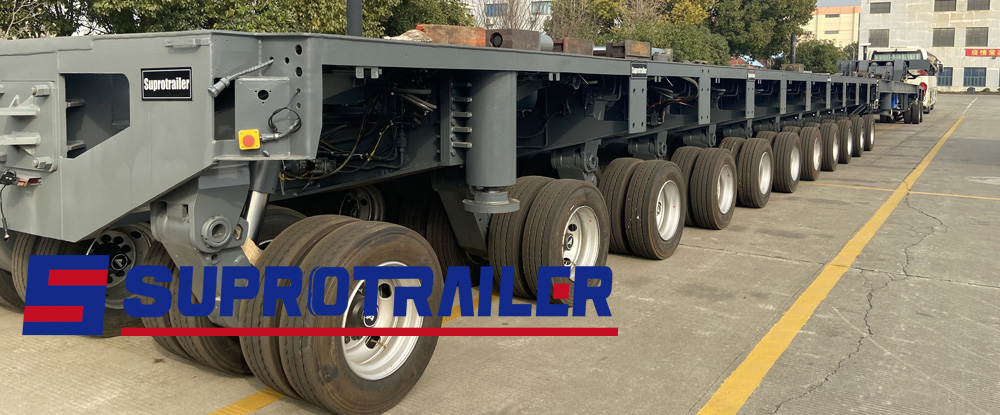

Multi axle hydraulic modular platform trailer

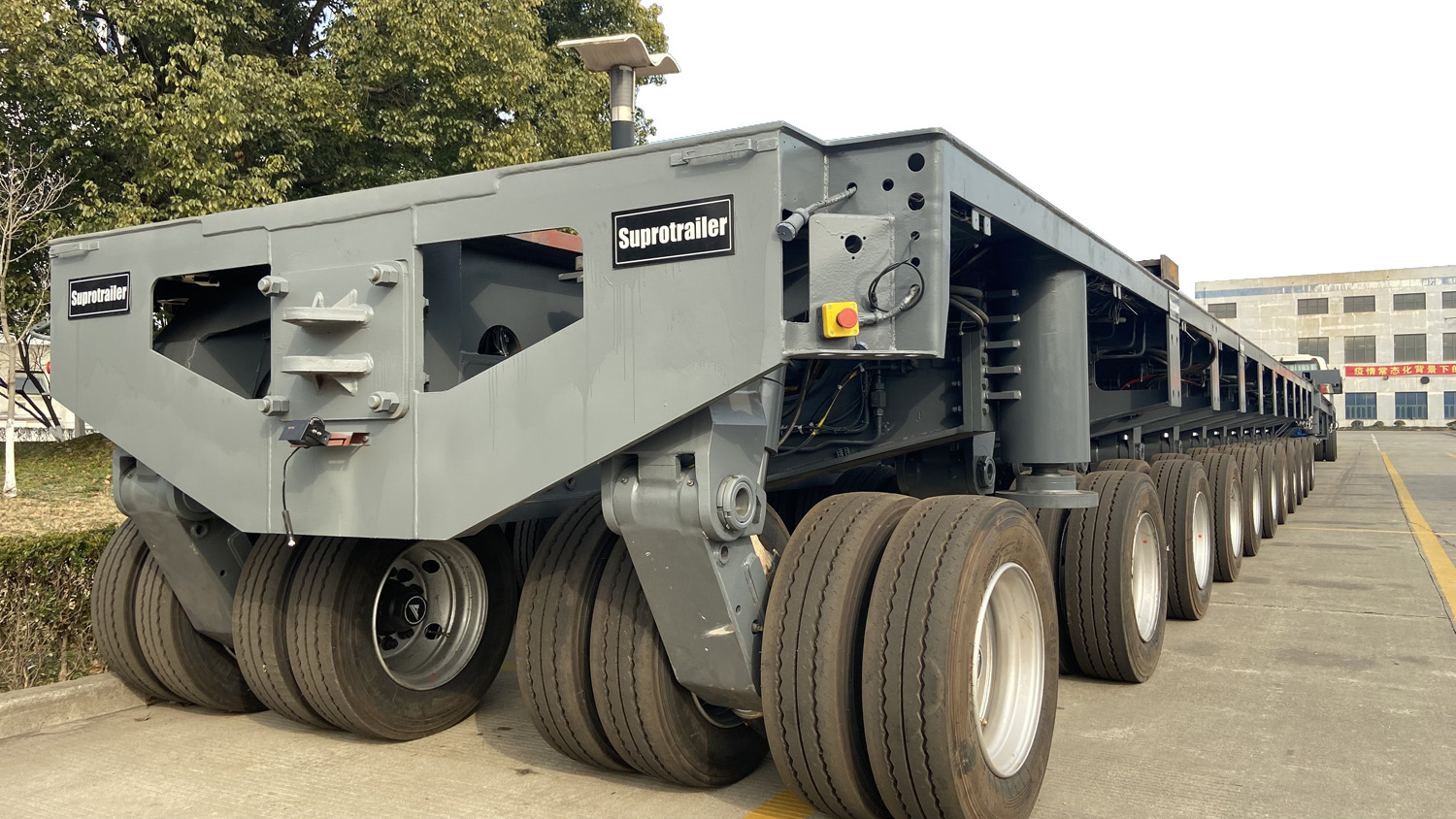

multi axle modular platform trailer

Advatages of Supro Hydraulic Modular platform Trailer

1. Good passing ability! The height of the Supro Modular trailer is more bigger than other hydraulic modular trailers. Supro hydraulic modular trailer could meet much more hard road cause the lifting distance of the hydraulic suspension is more bigger.


2. The loading capacity of the Supro hydraulic modular trailer is more bigger! So it need more fewer axles than other hydraulic modular trailer of the same weight cargo!

Once it combine with heavy duty trailer such as "Girder bridge", and Supro hydraulic modular trailer could short the total distance of the whole modular transportation.

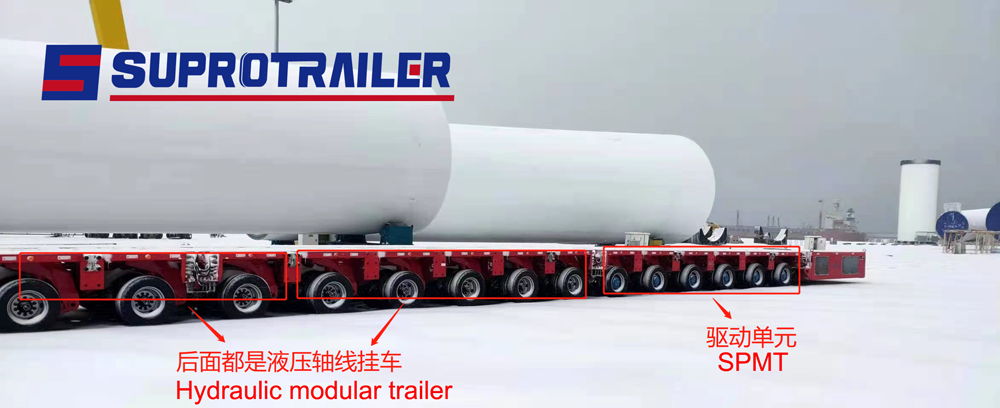

modular transportation


3. Hydraulic gooseenck of the Supro hydraulic modular trailer. Supro hydraulic modular trailer also could use towbar and hydraulic gooseneck to be Full moudlar platform trailer and Semi hydraulic modular platform trailer.

multi axle hydraulic modular trailer


4. CE certification of Supro Hydraulic modular trailer. Supro trailer not only can design own structure of Hydraulic modular trailer, but also Supro hydraulic modular trailer could get though the CE certification of high standard Hydraulic modular trailer.

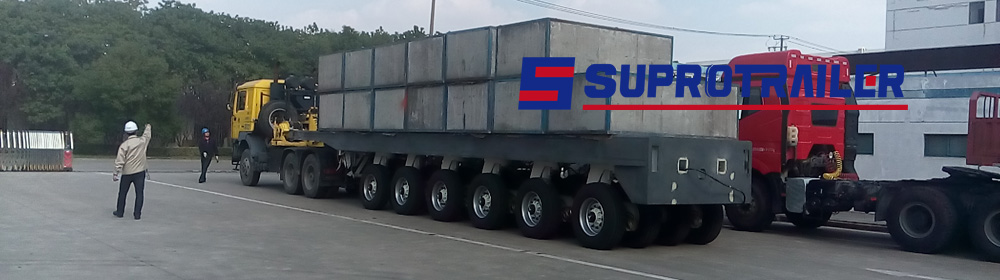

Multi axle hydraulic modular platform transportation

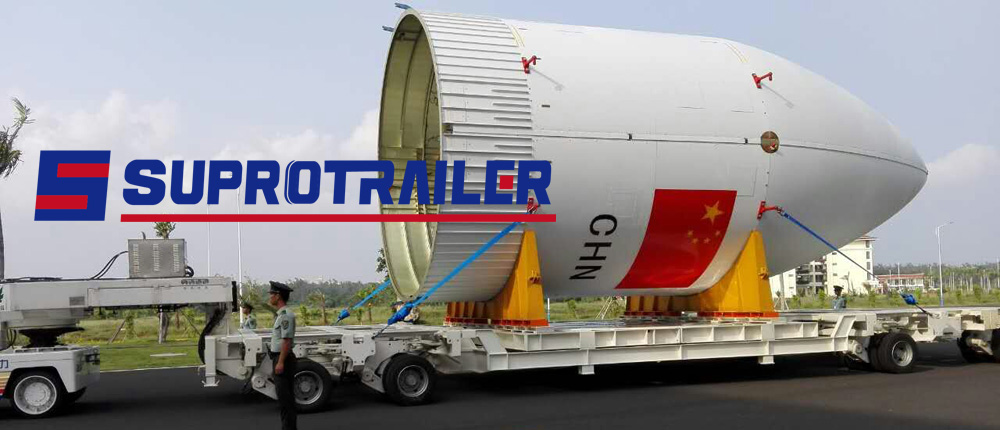

5. Supro Hydraulic modular trailer for China Rockets transport. Supro trailer provided high stanrdand hydraulic modular trailer and design the hydraulic modular platform trailer against on cargo special dimension and weight!

hydraulic modular trailer

Supro Hydraulic Modular Trailer with 450 tons Girder bridge

Specifications of Supro Hydraulic Modular Trailer

Heavy duty trailers

Drawing of Supro Hydraulic Modular Trailer

Hydraulic multi axle modular trailer

multi axle hydraulic modular trailer

Main configurations of the Supro Hydraulic Modular Trailer

1. Axles distance -------------------------------------1820mm

2. Wheel distance ------------------------------------1030/1970mm

3. Tyre amount ----------------------------------------8pcs/per line

4. Tyre specification ----------------------------------10.00R20

5. Rim specification -----------------------------------7.50-20

6. Approach angle ------------------------------------>20 degrees

7. Departure angle -----------------------------------> 30 degrees

8. Min. ground clearance ---------------------------198mm ( cargo platform 1750mm)

9. Cargo platform width -----------------------------3600mm

10. Cargo platform height ---------------------------2100+350/ -350mm

12. Steering structure --------------------------------Whole wheels hydraulic steering or manual operatioin steering.

13. Suspension ----------------------------------------Hydraulic suspension

14. Hydraulic modular platform supporting ------- 3 points supporting points or 4 points supporting points

15. Braking system ------------------------------------ Double pipes control and Double shoe braking.

16. Empty loading capacity --------------------------50km/h

17. Modular platform lifting distance ---------------700mm

18. First wheel steering angle -----------------------50 degrees

19. Hydraulic parts ------------------------------------- Use Europe brands valves and sealings.
