Air suspension lowboy trailer, make the middle drop deck touch the ground!

❒When we do the oversize load business, and always meet some caves and bridge which has limited passing height. We can change the travelling road to the destination, but the cost is more expensive! Supro Trailer produces air suspension for the lowboy trailer which has 100mm adjustable height that can make the middle drop deck travelling touch on the ground! But please be well noted, the air suspension do not allow weight overload.

Specifications of the air suspension lowboy trailer:

1. Structure: 3 axles lowboy trailer

2. Dimension: 13m*3m*0.85m ( middle drop deck bed 6m length)

3. Dead weight: 10 Tons

4. Loading capacity: 50 tons

5. King pin: 50# and 90# be option

6. Suspension: Air suspension

7. Steel spring: NaN

8. Rear ladder(ramp): NaN

9. Axle No./ weight/ brand: 3 axles *13T Chinese axle

10. Tire specs: 8.25R22.5

11. Rim: 6.0R22.5

12. Number of Tire: 24pcs

13. Main beam: Heavy duty and extra durability designed; Opting for high tensile steel Q345B, welding by automatic Submerged-Arc processes.500mm Height "I" beam, Top Flange 18mm, width 200mm; Middle Flange 10mm; Bottom Flange 16mm, width 200mm.

14. Side beam: 30# “I” beam

15. Platform: 4 mm chequer plate

16. Landing Gear: JOST Standard 28ton

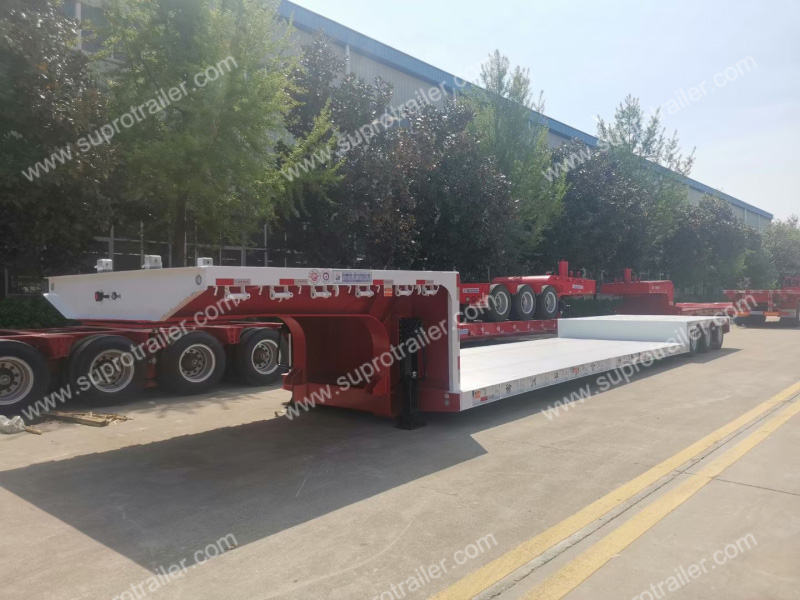

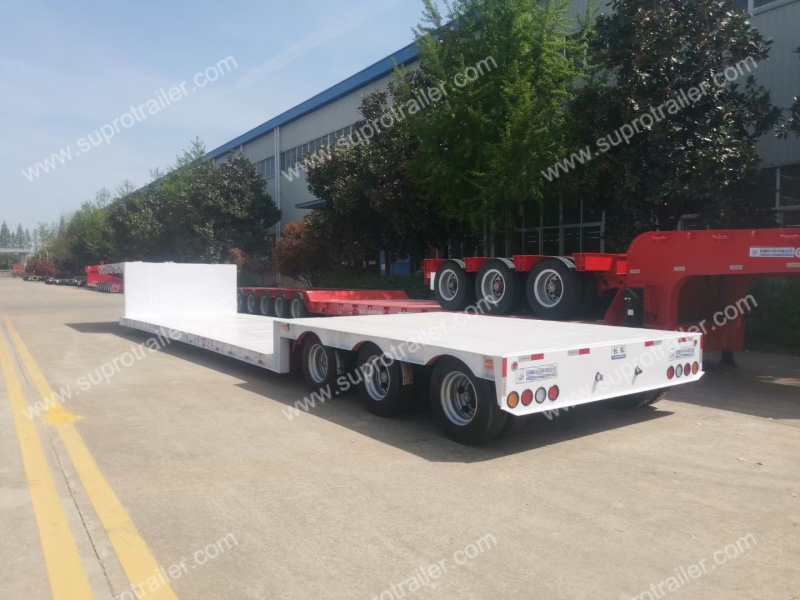

Photos of the Air suspension lowboy trailer▼
