Windmill Euqipment Transporter

For the windmill equipment transport. Supro Trailer produce "Extendable Flatbed Trailer" and "Windmill Blade Adapter" for wind blade transport.

For the windmill tower transport. Supro traile produce Windmill tower adapter and Extendable tank cargo trailer.

Windmill Tower Adapter

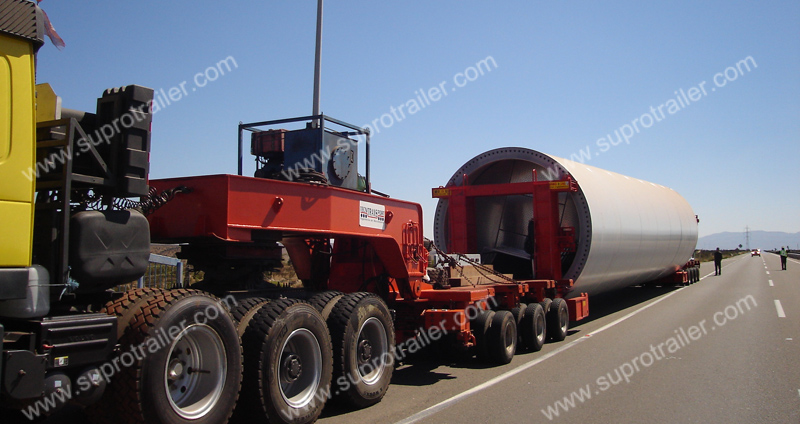

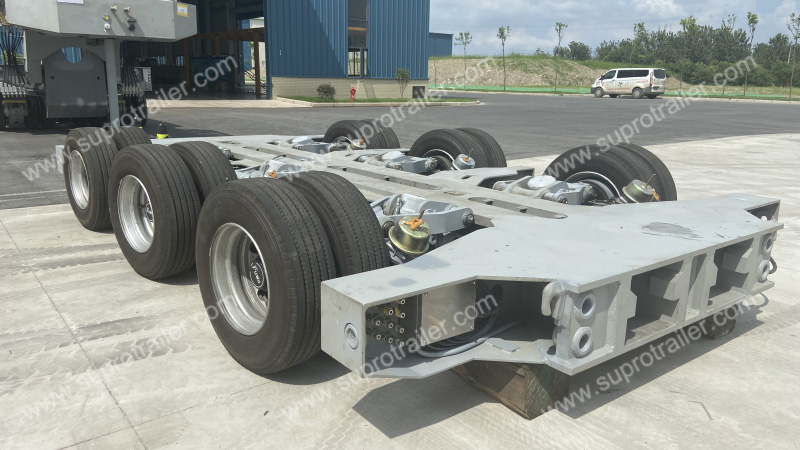

1.1 Windmill tower adapter combine with Hydraulic modular trailer. The adapter could combine with "Nicolas modular trailer", and "Goldhofer modular trailer".

windmill tower adapter

windmill tower trailer

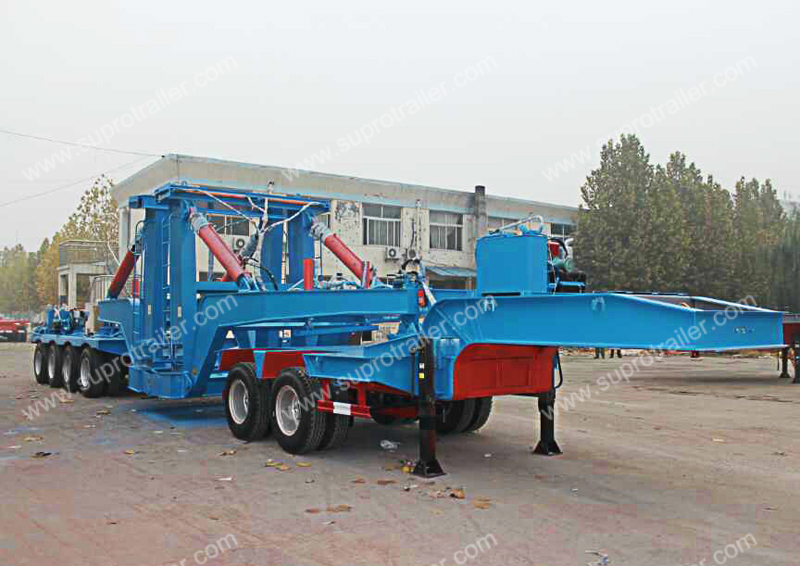

1.2 Supro design an adapter to combine with normal flatbed trailer. And the cost of the whole trailer is more cheaper than Hydraulic modular trailer- Windmill tower adapter.

windmill tower transporter

windmill tower trailer

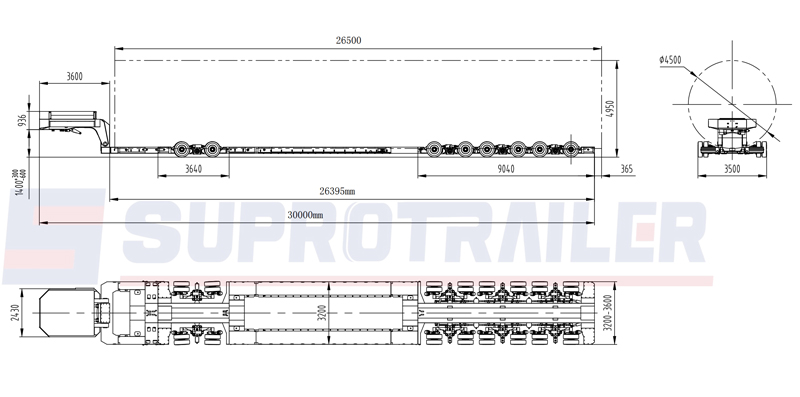

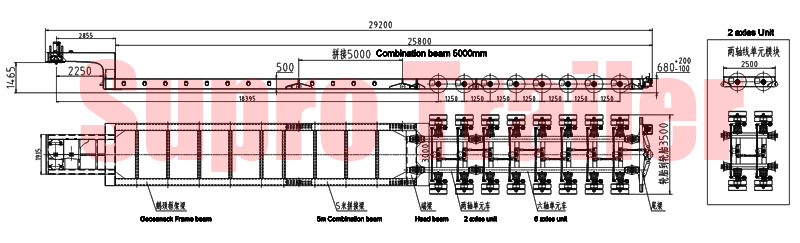

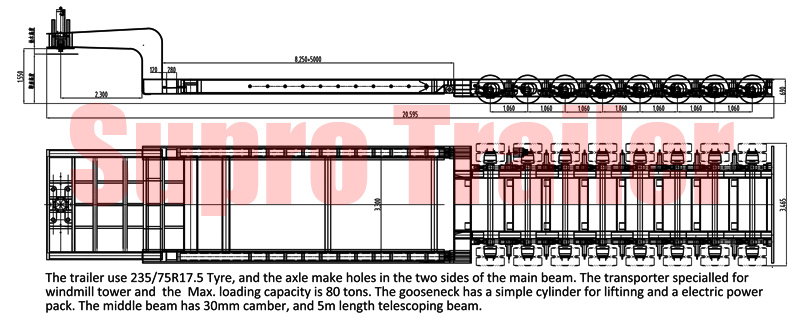

Windmill Tower Extendable Semi Trailer

windmill tower extendable trailer

windmill tower extendable trailer

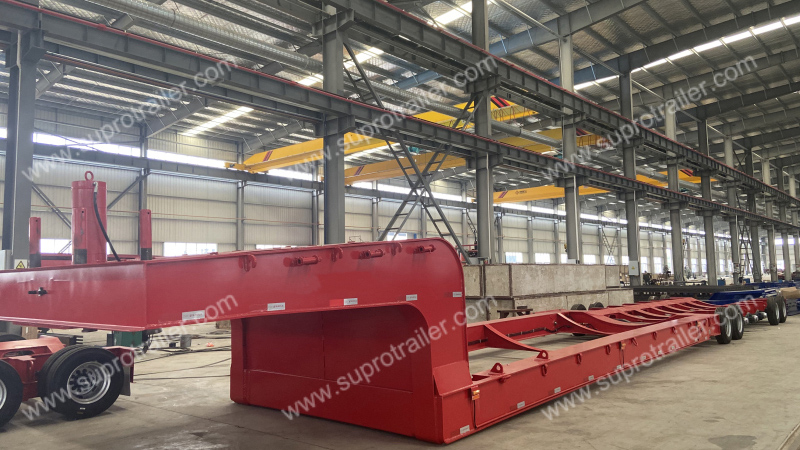

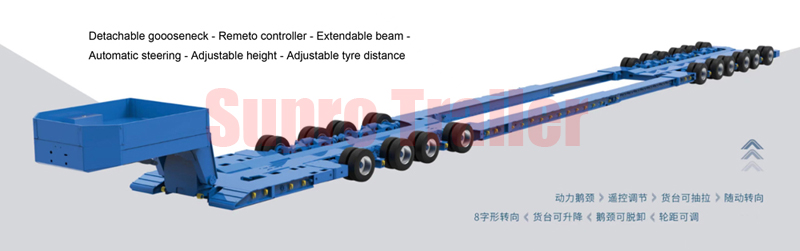

Extendable Flatbed Trailer

Extendable trailer for windmill blade

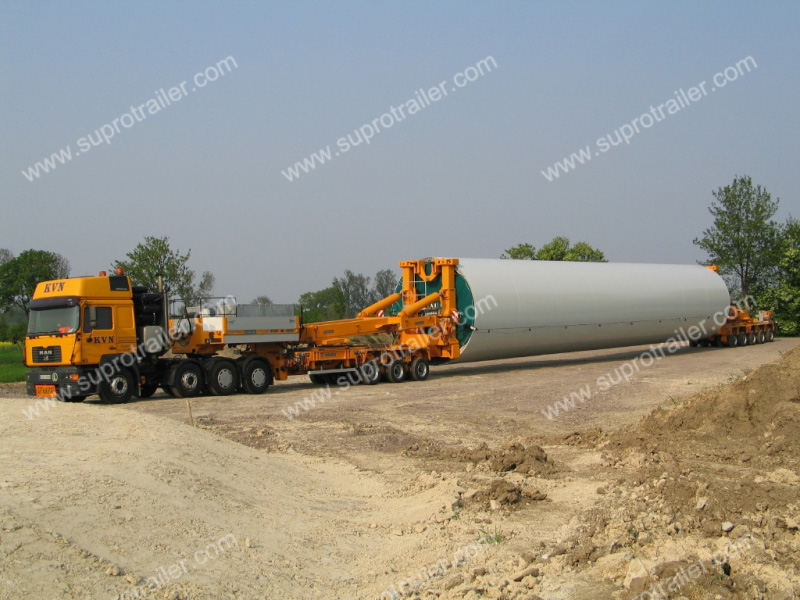

Windmill Blade Adapter

windmill turbine blade adapter

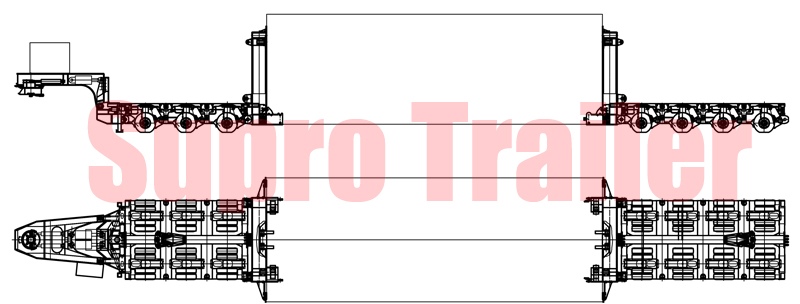

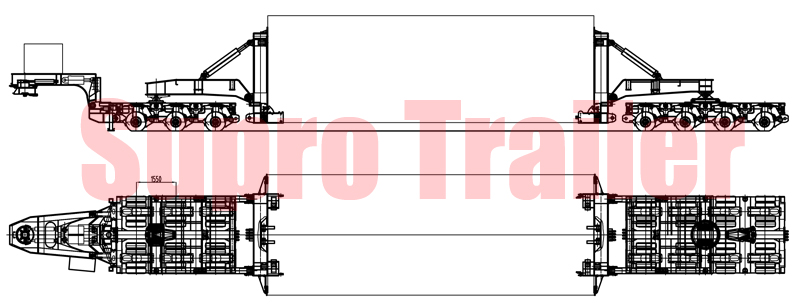

Drawing of the Hydraulic modular trailer with Adapter

hydraulic modular trailer drawing

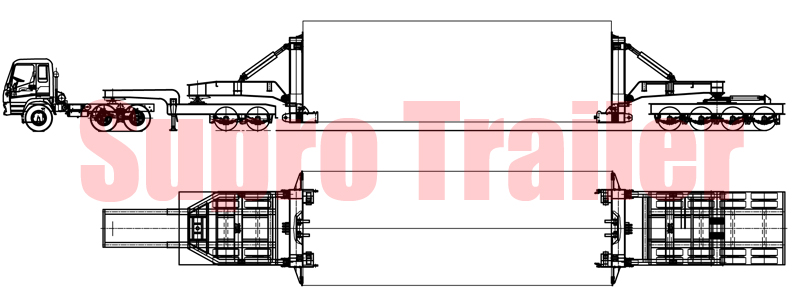

Drawing of Windmill Tower Adapter

drawing of windmill tower adapter



Specifications of the whole trailer

1. Payload  at 20km/h-------------------74 tons

2. Axle lines -------------------------------4

3. Axle distance --------------------------1500mm

4. Bogie distance ------------------------580/1760mm

5. Tyre quantity -------------------------16

6. Tyre specification ---------------------215/75R17.5

7. Rim specification ----------------------6.00 (with reinforced rim)

8. Steering system -----------------------Hydro Mechanical steering

9. Suspension -----------------------------Hydraulic suspension with three supports

10. Brake system -------------------------Dual line circuit

11. Loaded speed ------------------------20km/h

12. Platform/Bed height -----------------1090(+220/-280)mm

13. Dead weight --------------------------27000kg

14. Fifth wheel load (Max) ---------------28000kg

15. Axle load -------------------------------20 tons @ 5km/h

16. Max. turn radius ----------------------12410mm inside/ 43245mm outside
