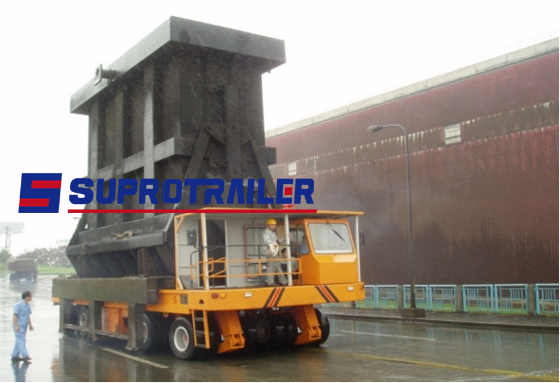

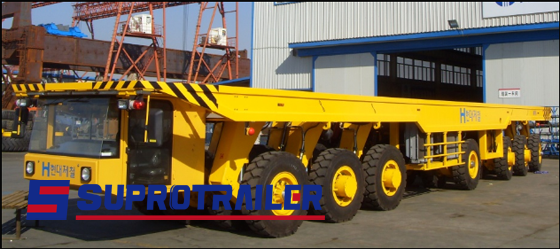

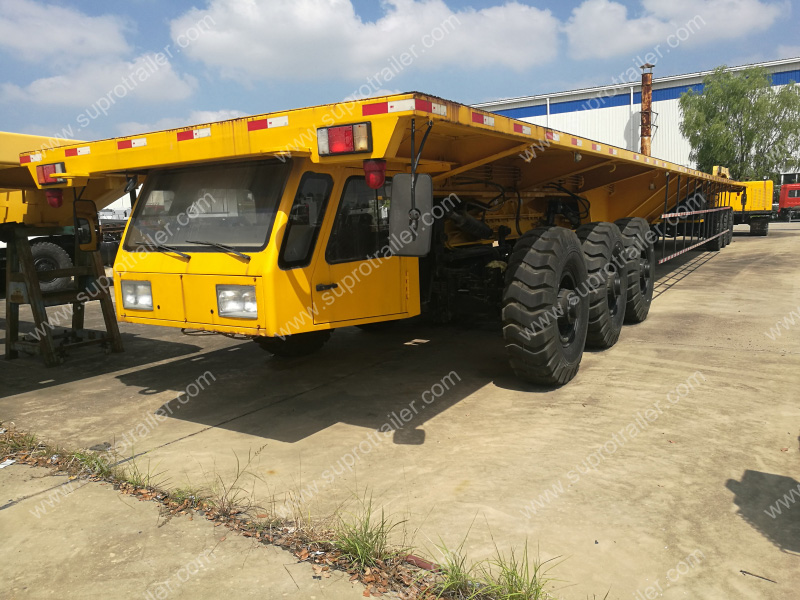

Shipyard transporter, Self propelled trailer (SPMT)

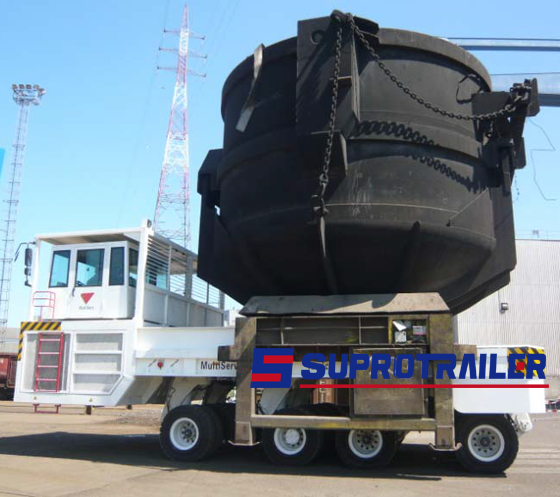

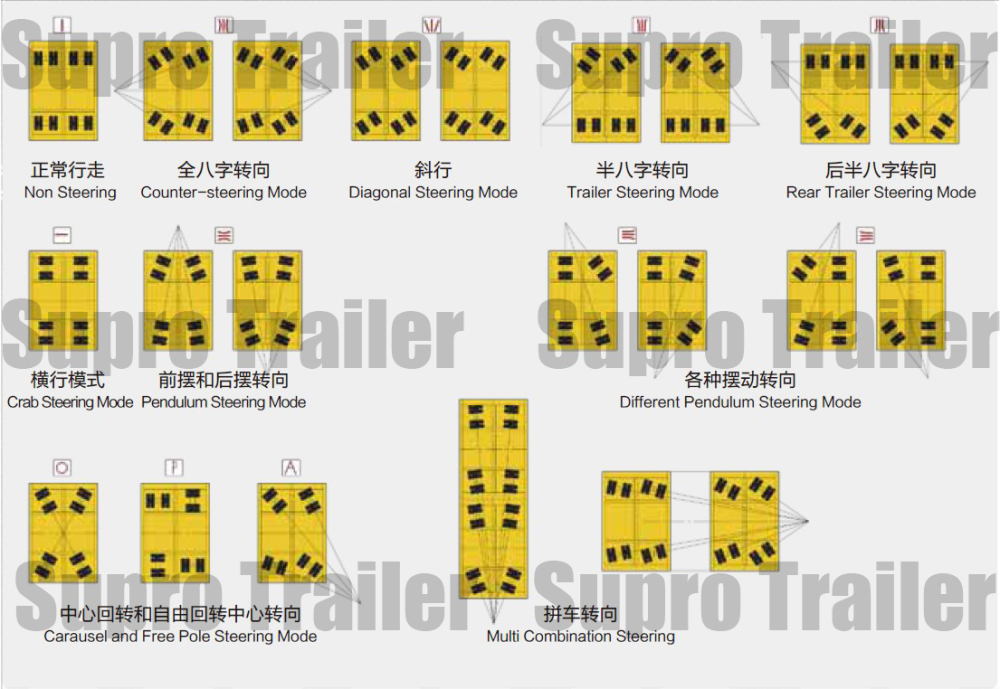

Multi axle trailer shipyard transporter, is a hydraulic suspension, hydraulic drive, the electronic hydraulic hybrid multi-mode driver steering hosting platform can lift, carrying capacity is generally more than 75t self propelled trailer, self propelled modular trailer (spmt) special vehicles. The series each of the steps in the process of modern shipbuilding and other heavy component job field regional transportation transport equipment, electronic hydraulic independent steering technology, can move forward, after traveling any direction and angle.The development of the standard, heavy-duty flat-panel truck from the design, development, testing, testing, packaging, shipyard transporter can be based on the technical standards. The design parameters and the main function of the serialization and unity, and contribute to the sustainable development of the product.

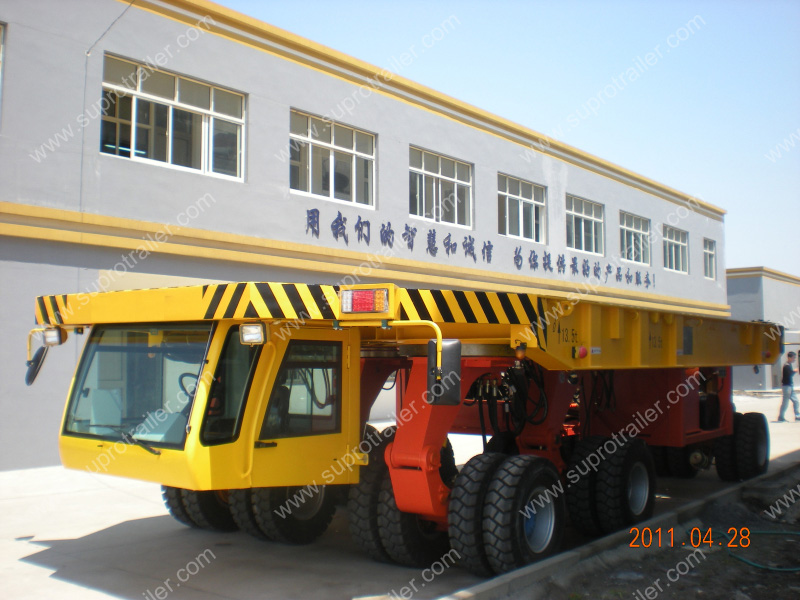

Shipyard transporter, Self propelled modular trailer (spmt)

The multi axle trailer shipyard transporter, self propelled trailer (spmt) is an important transport equipment, modern ship construction process can be realized also a variety of modes of driving (steering mode), carrying platform can lift, carrying capacity is generally in more than 75T overloaded transporter special heavy duty trailers. The main parameters in the preparation process to comply with the basic requirements of the special vehicles.

Self propelled trailer (SPMT)

The technical requirements of The multi axle modular, hydraulic platform trailer, shipyard transporter embodies small quantities, multi-species production of customer orders to meet user demand principles.The multi axle hydraulic modular trailer, shipyard transporter, has been successfully broke into the international market, the standard should be prepared in line with international practice.The main content: to require the multi axle hydraulic modular trailer/ shipyard transporter common technical requirements, test methods, inspection rules, signs, packaging, transport and storage.

Advatanges of Supro Trailer.

1.Abundant Experience on Hydraulic modular trailer. We started to produce heavy duty trailer since 1942 year, and we produced the first modular trailer in China. Our modular trailer can combine with Goldhofer THP/SL, Nicolas MDED, Scheuerle, Cometto etc.

2.Advanced technology. Supro Trailer has owned design on modular trailer. The load capacity can reach 50 tons per axle lines. This is much higher than Goldhofer modular trailer

3.High quality system. Supro trailer can get throught the CE certification of hydrulic trailer. We exported our trailers to Russia, England, France, Germany etc.

4.Professional technician team. Supro egnineers can design some toolings for your modular trailers. Such as spacer, gird bridge, drop deck bed, loading sharing beam, turntable etc.

5.The cost performance of Supro extendable trailer is much higher than Europe companies. Our price is much better, and the quality is good.

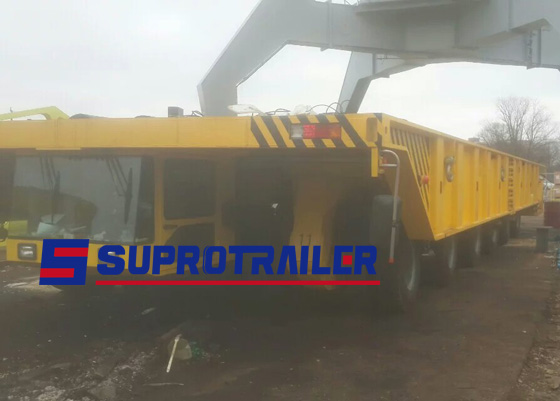

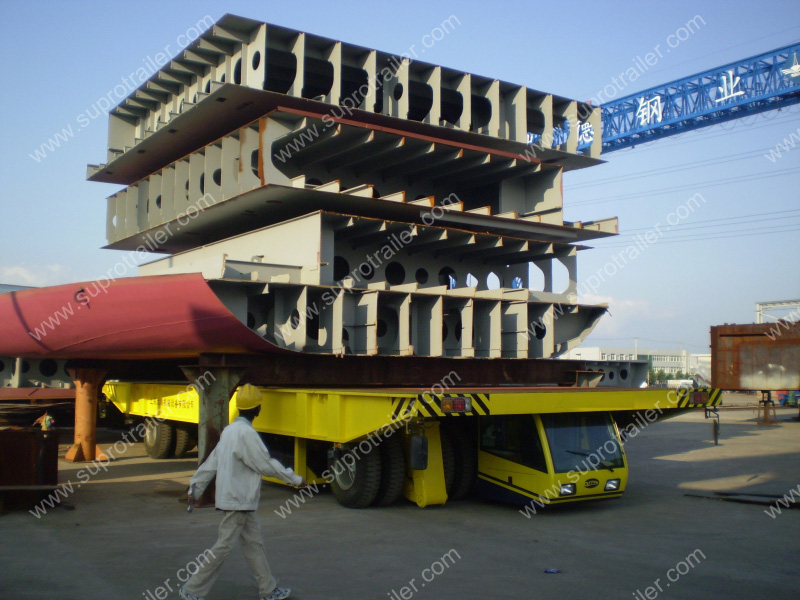

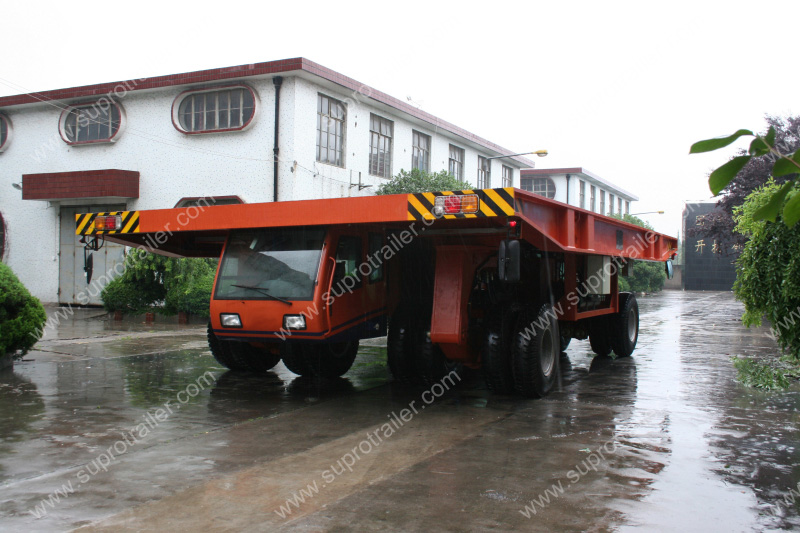

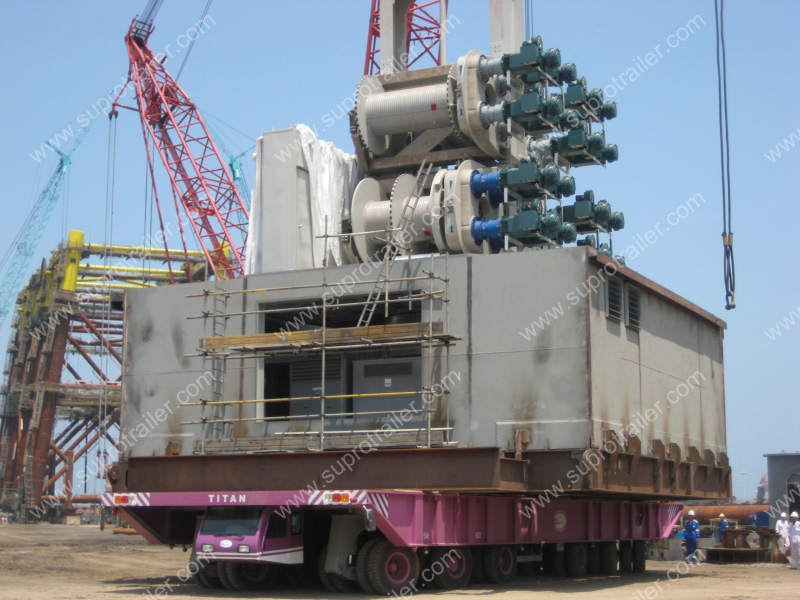

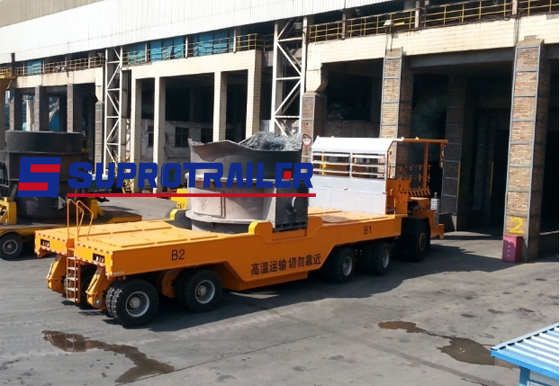

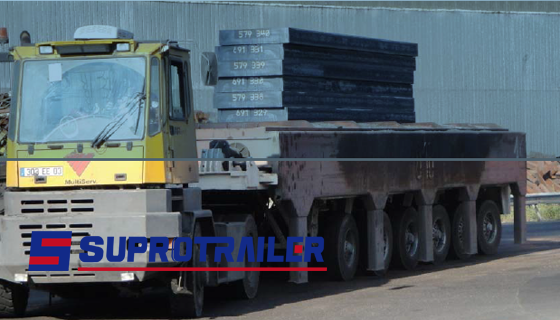

Shipyard Transporter, Self propelled modular trailer (SPMT)

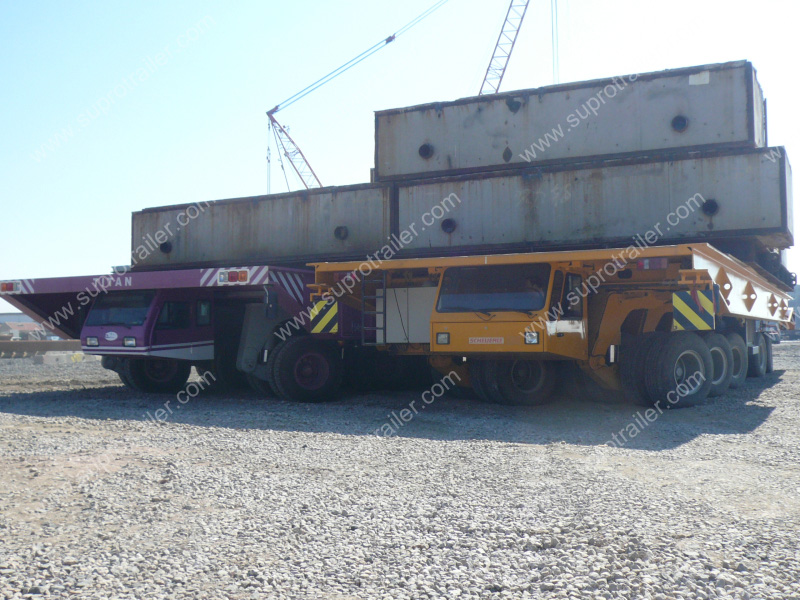

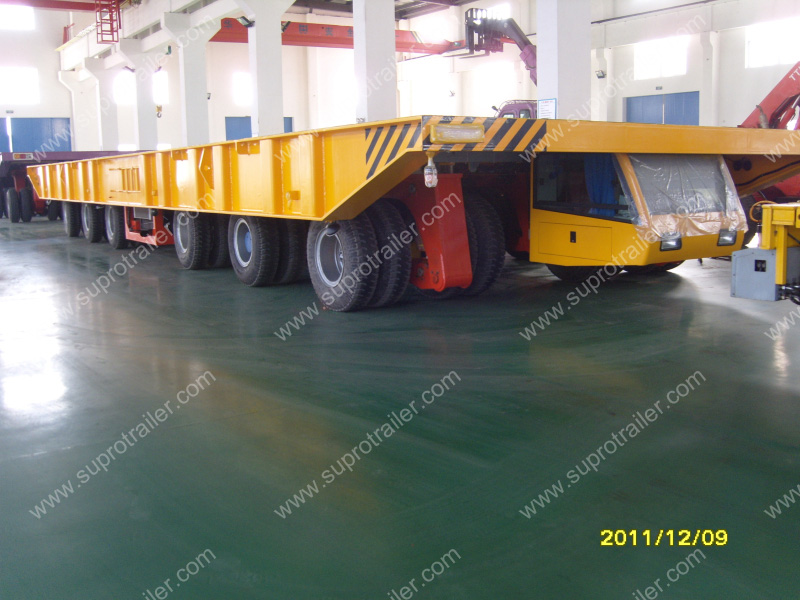

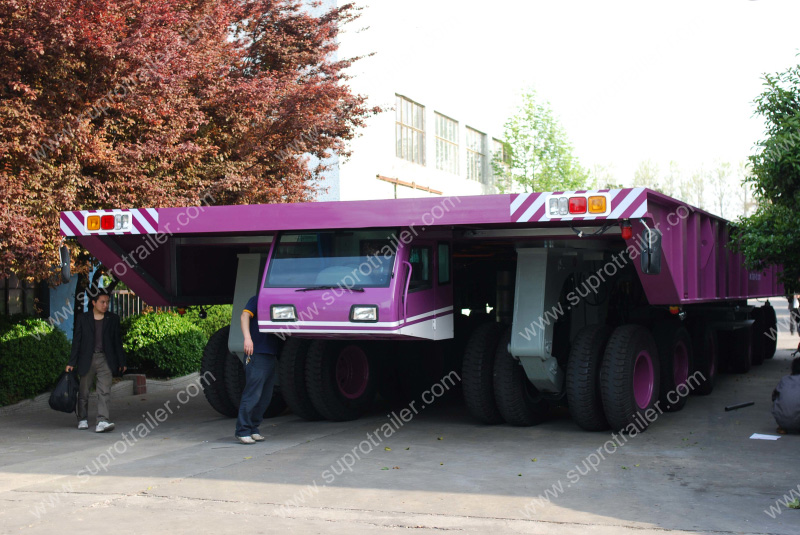

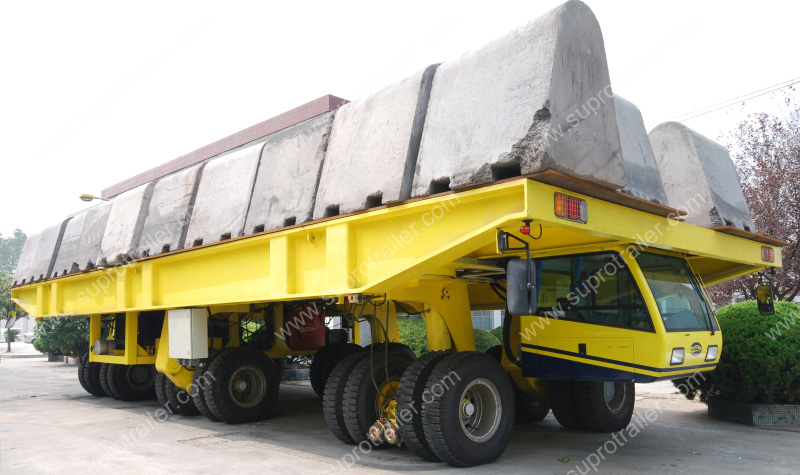

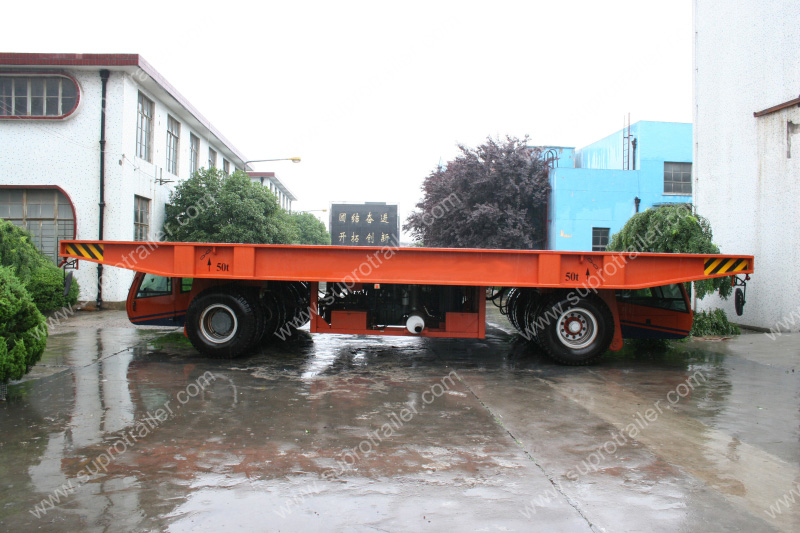

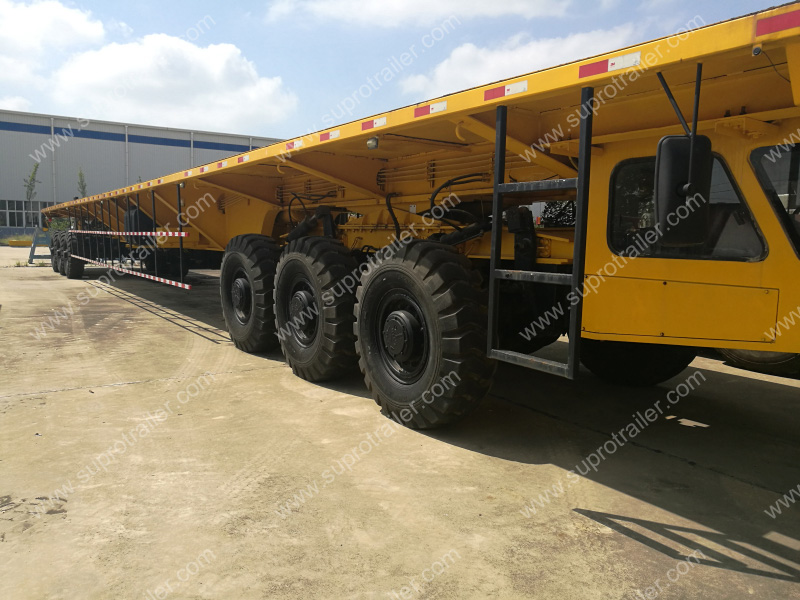

Shipyard transporter commissioning

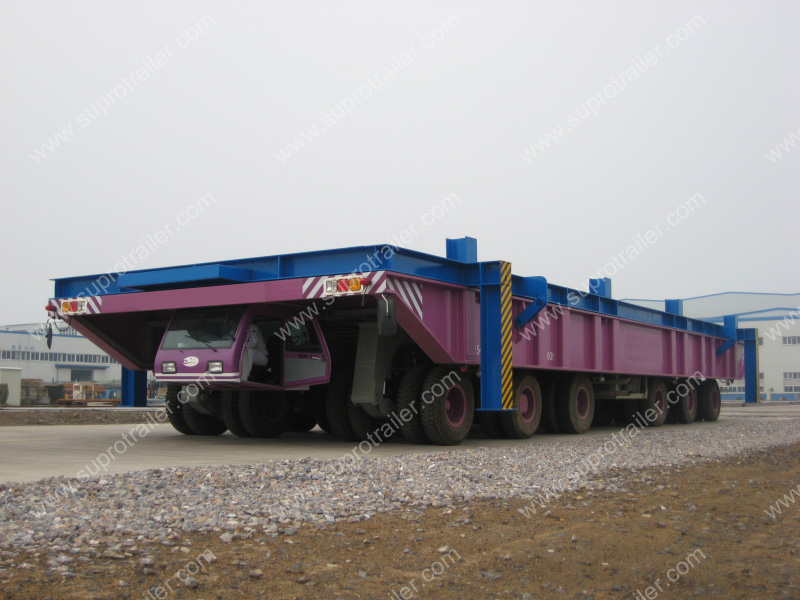

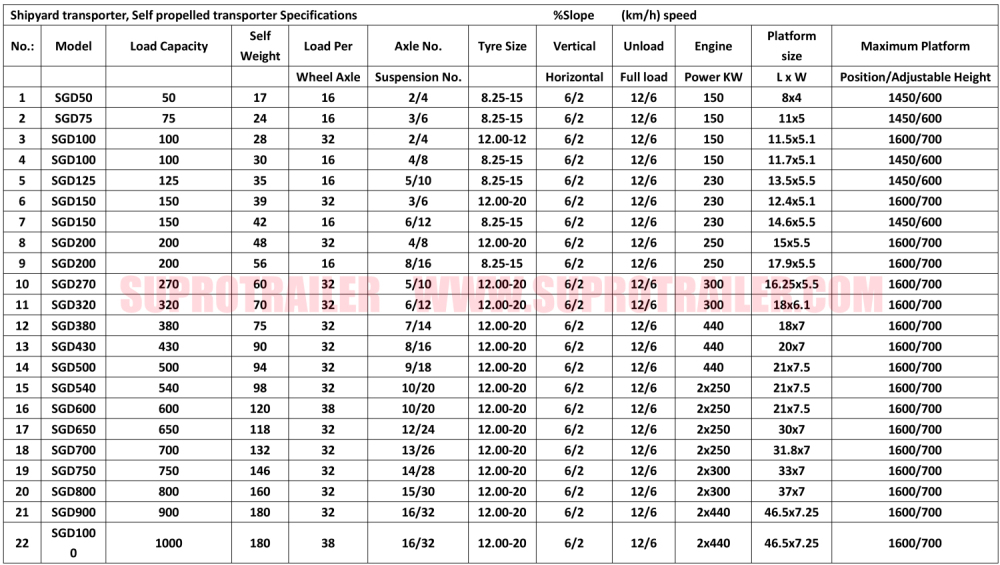

Shipyard transporter Specifications


Shipyard transporter Draft

shipyard transporterspmtself propelled trailer

Shipyard Transporter SGD 12-5-150

Technical payload at 5 km/h

额定载质量(5公里时速下)

Approx 约150,000 kg

Dead  weight of shipyard transporter

整备质量

Approx.  37,000 kg

Gross weight of shipy transporter fully loaded

满负载总质量

Approx. 187,000 kg

Axle lines

轴线数

6

Wheel bogies per axle line

每轴线悬挂架数量

2

Number of wheel bogies

转向架总数量

12

Wheel bogie load

每悬挂架的承载能力

Approx   16,000kg

Driven wheel bogies

驱动悬挂架数量

5

Brake wheel bogies

制动悬挂架数量

7

Tires (pneumatic)

轮胎规格(无内胎)

32x 8.25-15 PR14

Diesel engine DEUTZ

柴油发动机型号 道依茨

Type 6BTA8.3-C215功率:每分钟2,200转时为239 kW = 325 HP

Max. traction

最大牵引力

116kN

Gradient ability fully loaded

纵向爬坡能力

7%

Max. speed loaded

满负载时最大行驶速度

Approx.      5 km/h

Max. speed unloaded

空载时最大行驶速度

Approx.    12 km/h

Platform height lowered

货台最低高度

Approx. 1,450 mm

Lifting stroke wheel bogies

悬挂架的升降行程

Approx.    600 mm

Platform height in driving condition

货台行驶高度

Approx. 1,750 mm

Axle load compensation

轴负荷的补偿行程

± 300 mm

Oscillation angle of pendulum axles

轮轴的横向地面适应最大角度

7 °

Platform length

货台长度

Approx. 15,400 mm

Platform width

货台宽度

Approx.   5,000 mm

Inner turning radius

最小转向半径

0 mm

Outer turning radius

最大转向半径

Approx.8,096 mm

1. 主要配置 Main Specifications

发动机Engine道依茨DEUTZ/康明斯Commins)

电控变量(驱动)主泵 Electronic control variable(Drive) main pump(德REXROTH力士乐/丹麦DANFOSS丹佛斯(原萨奥丹佛斯))
变量(转向)泵Variable(Steering) pump(德REXROTH力士乐/丹麦DANFOSS丹佛斯)
驱动油马达 Drive Oil Motor(德REXROTH力士乐 /丹麦DANFOSS丹佛斯

减速器Reducer(德REXROTH力士乐 /BREVINI维尼)

分动箱Transfer case(德STIEBEL/KTR)

散热器Radiator (德AKG/冰轮)
回转支承Slewing bearing(方圆/牛力士Leonessa)

多路比例换向阀Multi- proportional directional valve(德DANFOSS/REXROTH/HAWE)

轮胎Tyre(国产 朝阳/三角/双钱 China brand)

微电控制系统Micro electrical control system(德REXROTH力士乐/KINEMOTION


Shipyard transporter SGD 4-2-100

Technology Parameter:

1. Rated load capacity:100tons

2. Vehicle dead weight:28tons

3. Axle lines/Suspension: 2/4

4. Drive axle/Dead axle:2/2

5. Speed:

   Empty load:12km/h

   Full load flat road:5km/h

   Full load gradient road:2.5km/h

6. Full load climbing capacity:longitudinal slope-6%, cross slope-2%

7. Minimum cargo platform height: 1.6m

8. Cargo platform lifting distance:  ±0.35m

9. Cargo platform dimension: 5.5*11m

10. Engine power: 160km



Shipyard-Transporter SGD 8-3-100

Technical payload at 5 km/h

额定载质量(5公里时速下)

Approx 约100,000 kg

Dead  weight of shipy transporter

整备质量

Approx.  28,000 kg

Gross weight of transporter fully loaded

满负载总质量

Approx. 128,000 kg

Axle lines

轴线数

4

Wheel bogies per axle line

每轴线悬挂架数量

2

Number of wheel bogies

转向架总数量

8

Wheel bogie load

每悬挂架的承载能力

Approx   16,000kg

Driven wheel bogies

驱动悬挂架数量

3

Brake wheel bogies

制动悬挂架数量

5

Tires (pneumatic)

轮胎规格(无内胎)

32x 8.25-15 PR14

Diesel engine DEUTZ

柴油发动机型号 道依茨

Type 6BTA8.3-C215功率:每分钟2,200转时为160 kW = 215 HP

Max. traction

最大牵引力

116kN

Gradient ability fully loaded

纵向爬坡能力

5%

Max. speed loaded

满负载时最大行驶速度

Approx.      5 km/h

Max. speed unloaded

空载时最大行驶速度

Approx.    12 km/h

Platform height lowered

货台最低高度

Approx. 1,450 mm

Lifting stroke wheel bogies

悬挂架的升降行程

Approx.    600 mm

Platform height in driving condition

货台行驶高度

Approx. 1,750 mm

Axle load compensation

轴负荷的补偿行程

± 300 mm

Oscillation angle of pendulum axles

轮轴的横向地面适应最大角度

7 °

Platform length

货台长度

Approx. 12,000 mm

Platform width

货台宽度

Approx.   5,000 mm

Inner turning radius

最小转向半径

0 mm

Outer turning radius

最大转向半径

Approx.6,500 mm
