Main configurations of the 4 axles 40ft container trailer

1. Structrure:  4 axles / 40ft / Flatbed container trailer

2. Outside dimension: 12500*2500*1560 mm

3. King pin:2.00’’ traction pin, bolts in type

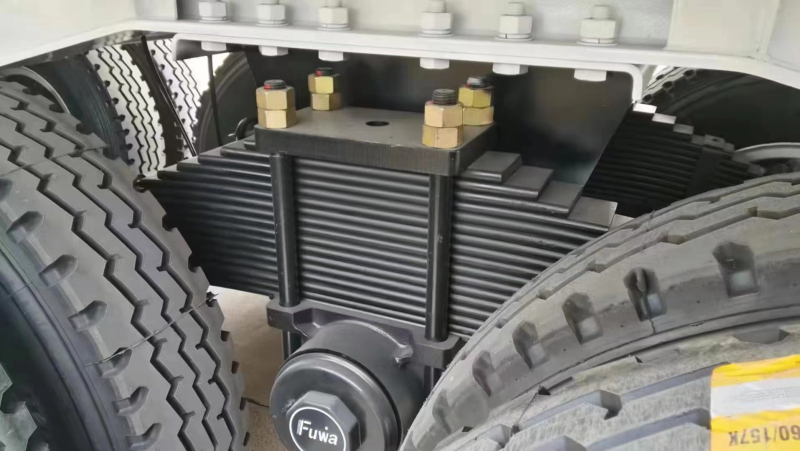

4. Suspension:Mechanical suspension, American design

5. Steel Spring: 6 sets, 10pcs leaf spring

6. Landing gear: 28T, manual operation(Jost can be option)

7. Axle No./ weight/ brand: 3 axles *13T axles, FUWA brand(other brands can be option)

8. Tire specs: 12 pcs of 1100R20-16,Triangle brand

9. Rim: 12 pcs of 8.0 rim

10. Twist locks: 12 set of twist locks

11. Spare Tire Carriers: 2 sets

12. Main beam: Heavy duty and extra durability designed; Opting for high tensile steel Q345B, welding by automatic Submerged-Arc processes.500mm Height "I" beam, Top Flange 12mm; Middle Flange 6mm; Bottom Flange 14mm.

13. Platform: 2.5 mm chequer plate

14. Brake system: 4 double and two single brake chamber

15. Electrical: Voltage: Chinese Standard 24V; Receptacle: 7 ways (7 wire harness); LED light

16. Painting: Color according to the requirement of the buyer

17. Other specifications : Factory standard.

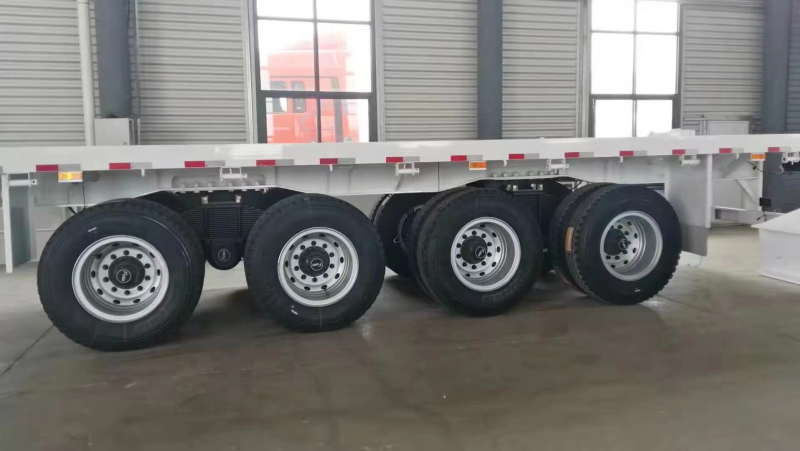

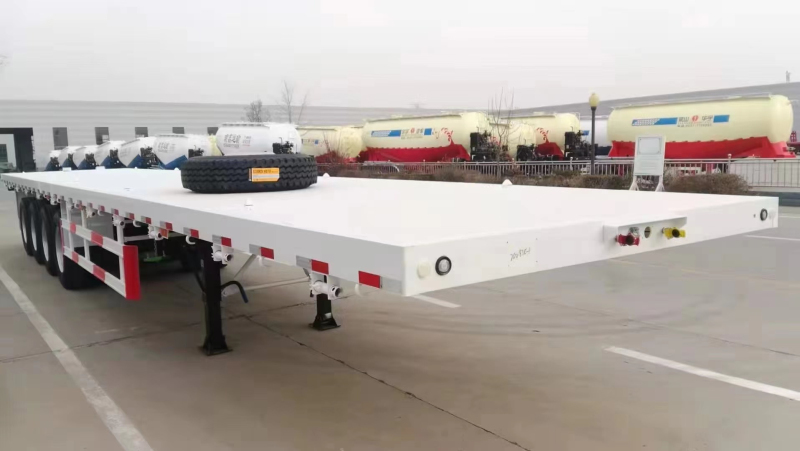

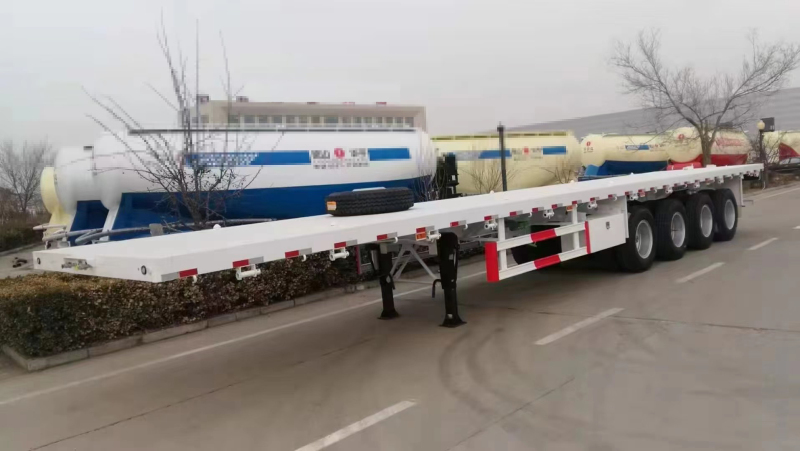

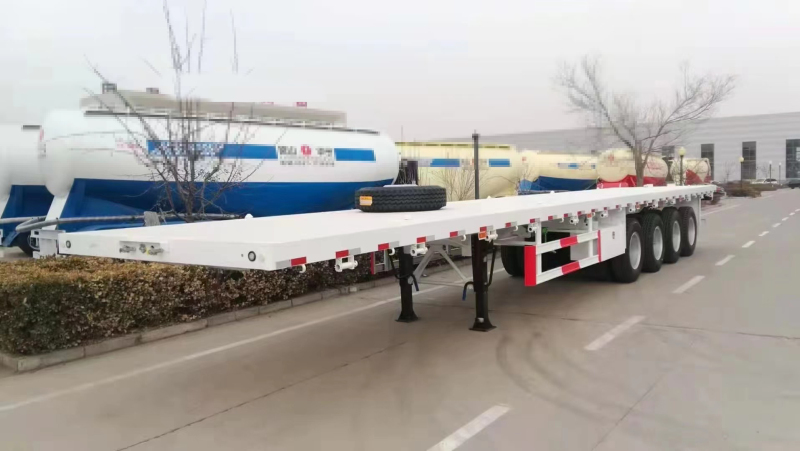

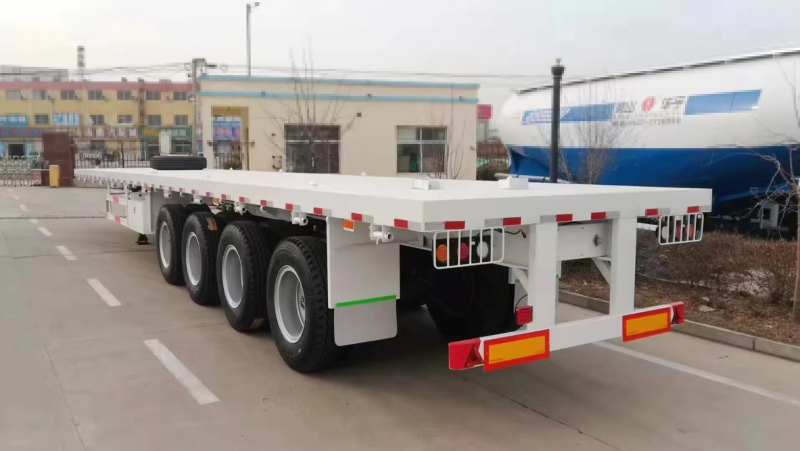

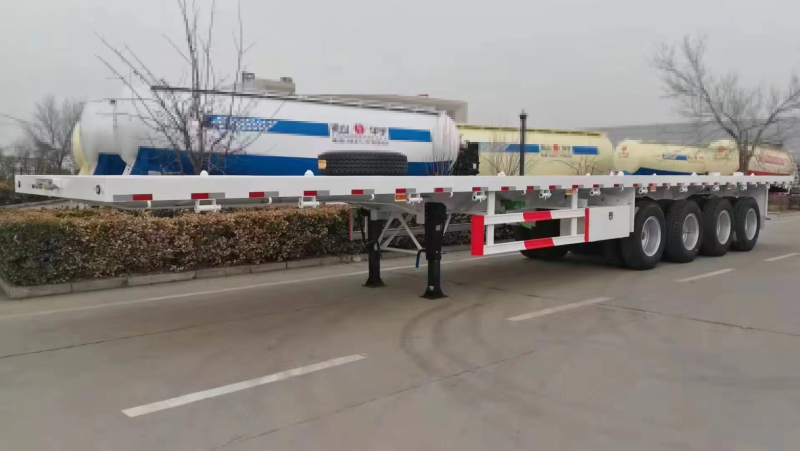

Photos of 4 axles flatbed container trailer
