Oil tank semi trailer

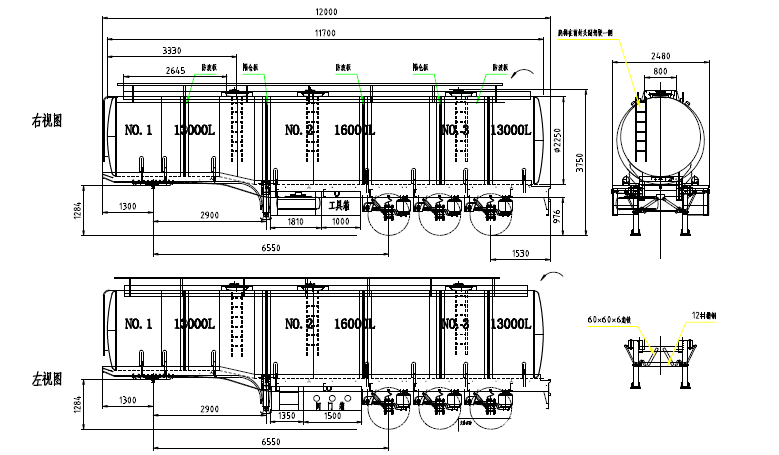

Drawing of the oil tank semi trailer

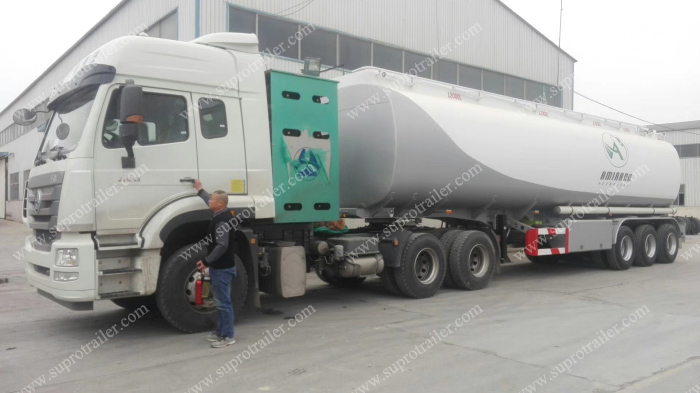

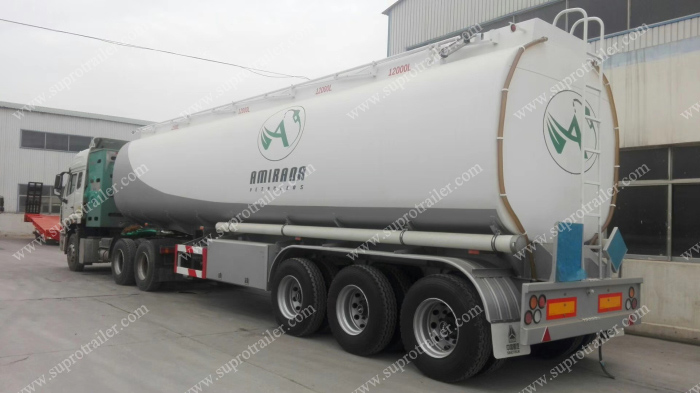

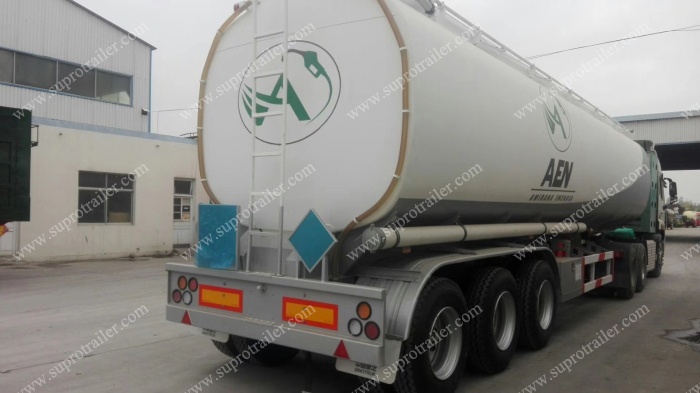

oil tank semi trailer

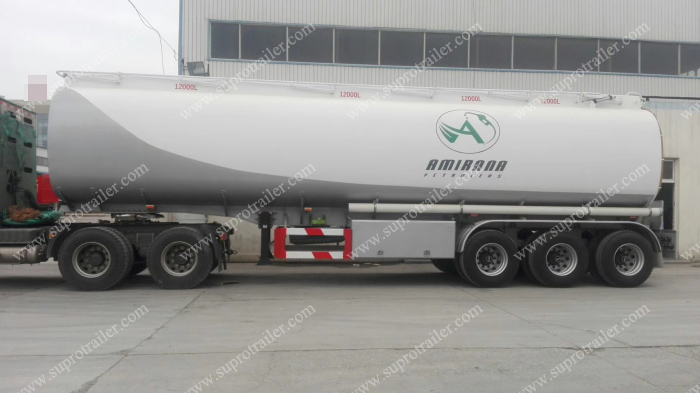

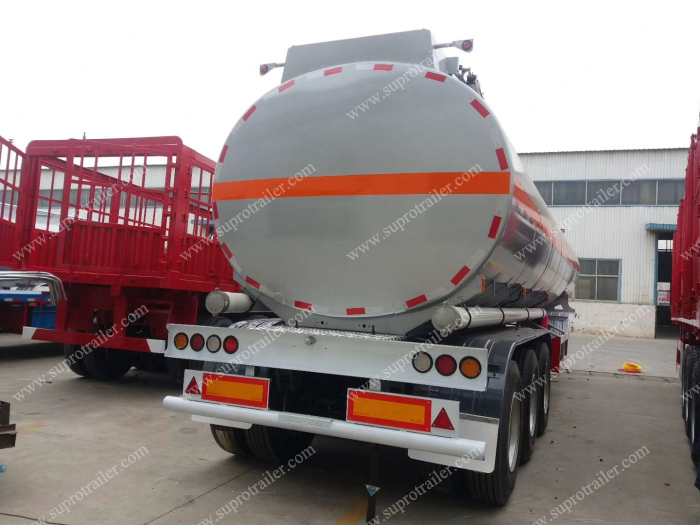

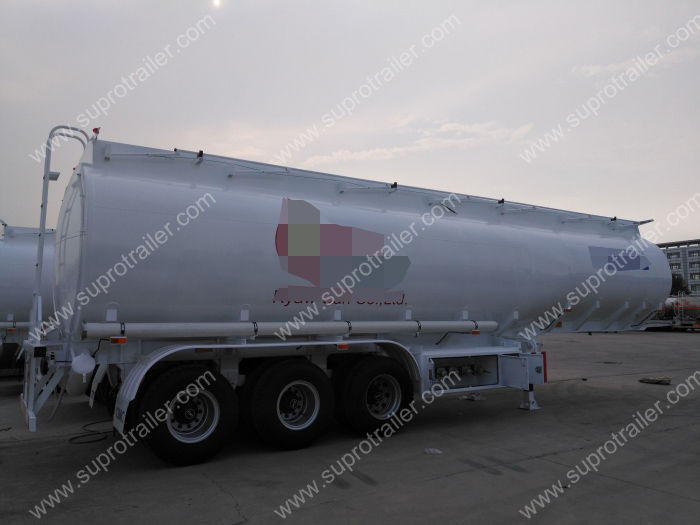

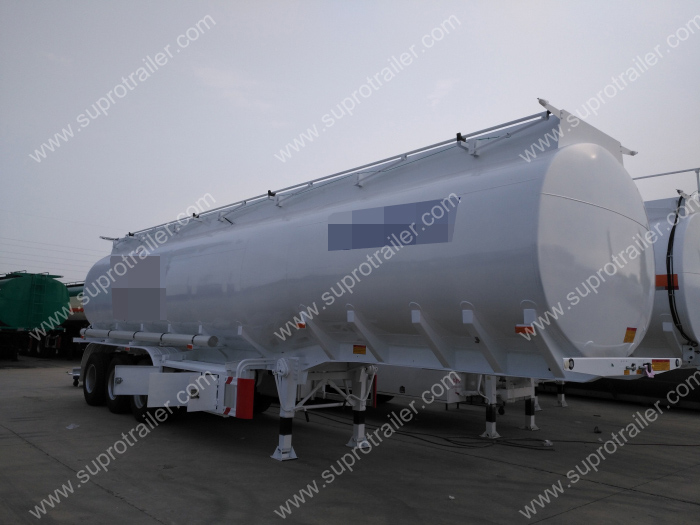

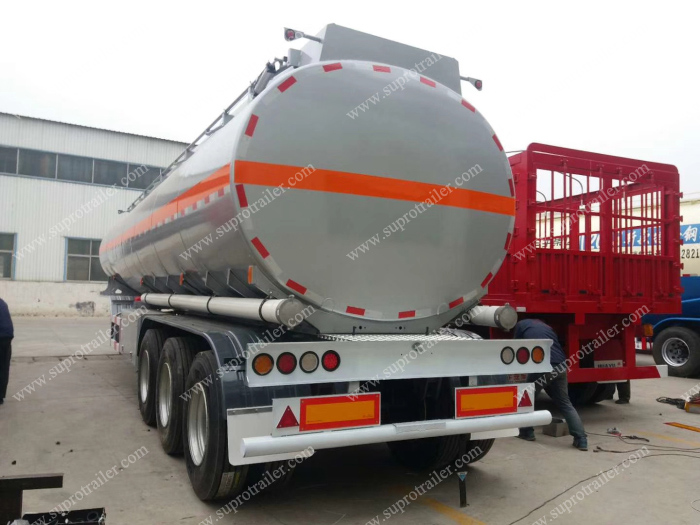

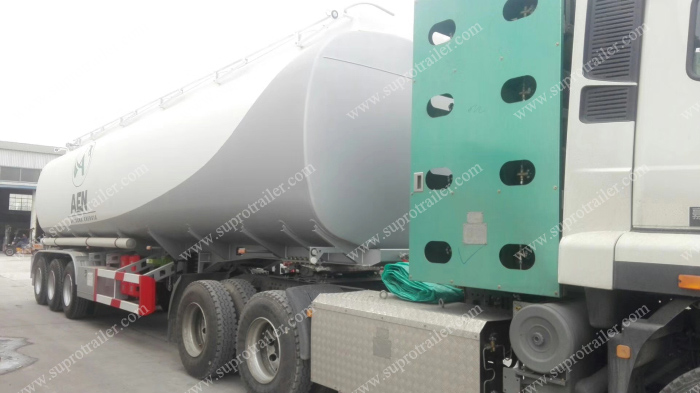

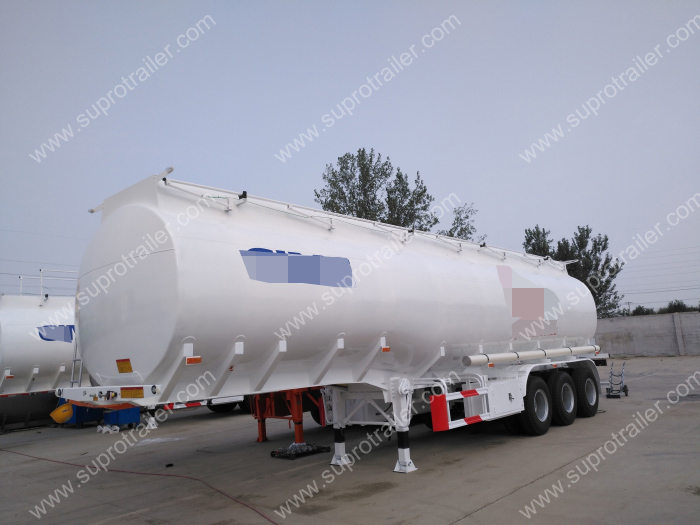

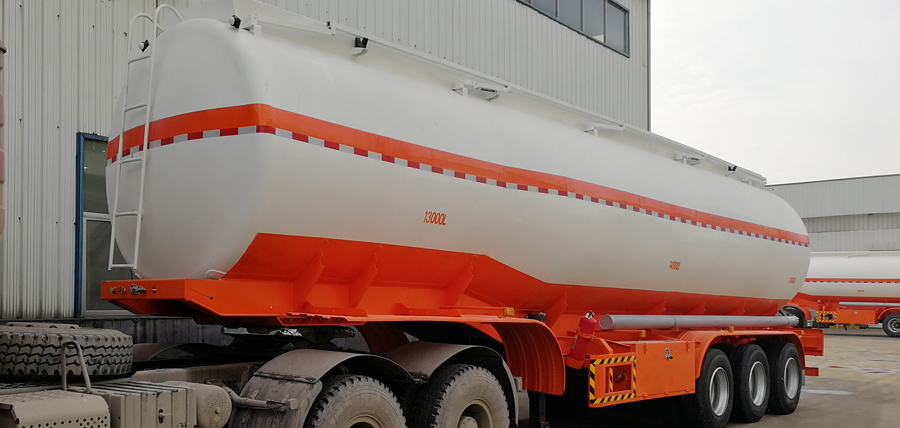

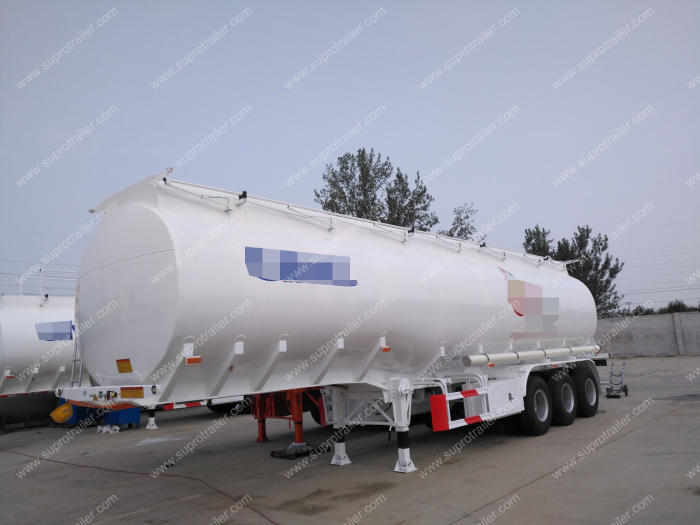

Steel Oil Tank Semi Trailer

luqid tank semi trailer

1.Supro LITERS FUEL TANKER TRAILER with heavy duty and extra durability design,opting for high tensible low carbon alloy Q345B steel.I beam welded by automotive arc-submerge process.

2.The gravity center of Supro tanker trailer is be designed as low as possible to minimize the risks of overturns.More suitable use in African road.

3.With Full braking and electrical systems at home and abroad in accordance with ISO standard, optional ABS system, braking, lighting is absolutely safe and reliable.

4.Quality guarantee ,Some easily broken parts will be delivered with trailers.One year warranty in the steel structure.


Aluminum Tank Semi-Trailer

Aluminum Tanker Semi-Trailer

1.The main frame and tanker body of Supro Tanker semi-trailer are designed by 3D-CAD,reasonable structure,made of high-tensile steel.
2.The tank body welded by automatic welding machine, high strength,smooth and aesthetic.
3.Its surface is processed by sand blasting and derusting, high-grade polyurethane bicomponent paint,excellent adhesion and antiseptic performance;
4.The axle,tyre and other accessories are the well-known products which supplied by the domestic and foreign professional manufacturers.
5.The continuous improvement of structure makes it much accord with practical loading&unloading and using requirements.
6.It’s optional to choose material of pure aluminium, aluminium alloy,stainless steel, to meet different medium requirements

Specifications sheet of the Oil tank semi trailer

Tank Body

Shape

Round or Square

Dimension

12000mm×2490mm×3990mm ( The exact size depends on the final design.)

Tare weight

About 8000kg-12800kg

Total Volume ( m3 )

25m³ -60 m³

Tanker Body Material

5mm or 6mm/ Q235 carbon steel

End Plate

5mm or 6mm /Q235 carbon steel

Manhole Cover

Carbon steel or aluminum alloy API manhole cover, 500mm(diameter)

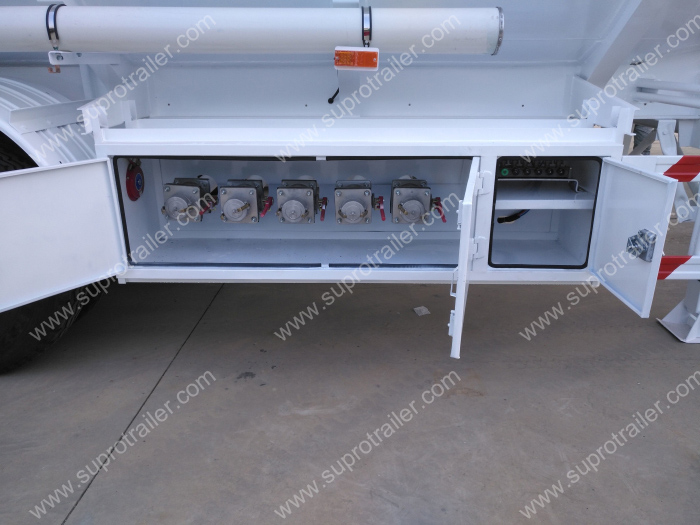

Bottom Valve

Aluminum API Pneumatic Bottom Valve

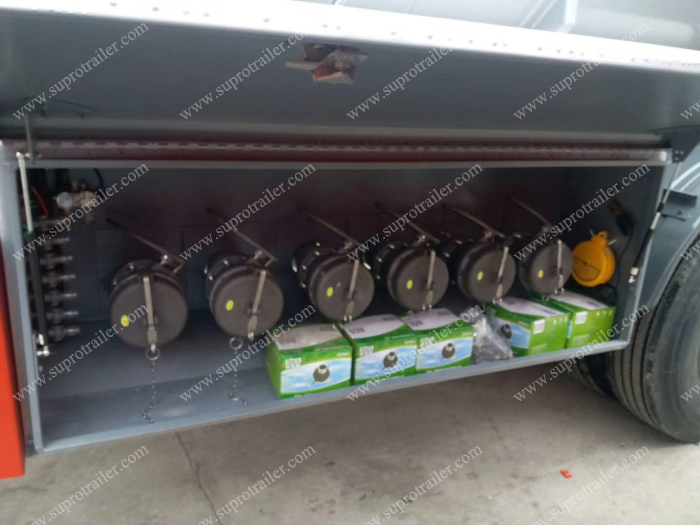

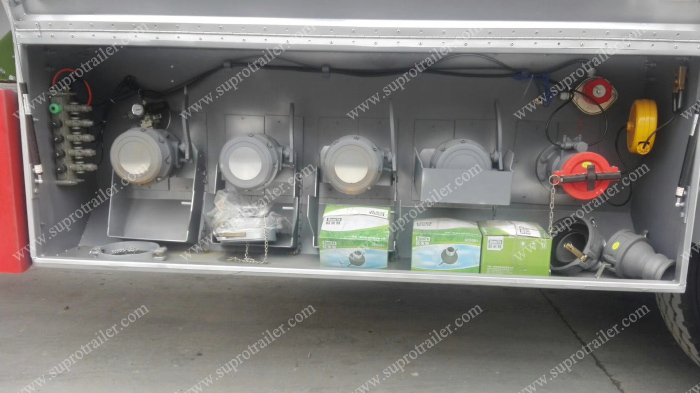

Discharging Valve

Diameter is 3 or 4 inch

Compartments

Optional

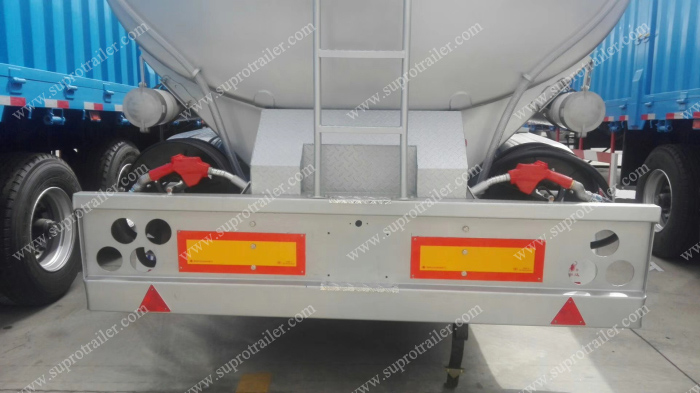

Discharging Pipe

4" rubber hose, 2 pcs , 6m/each

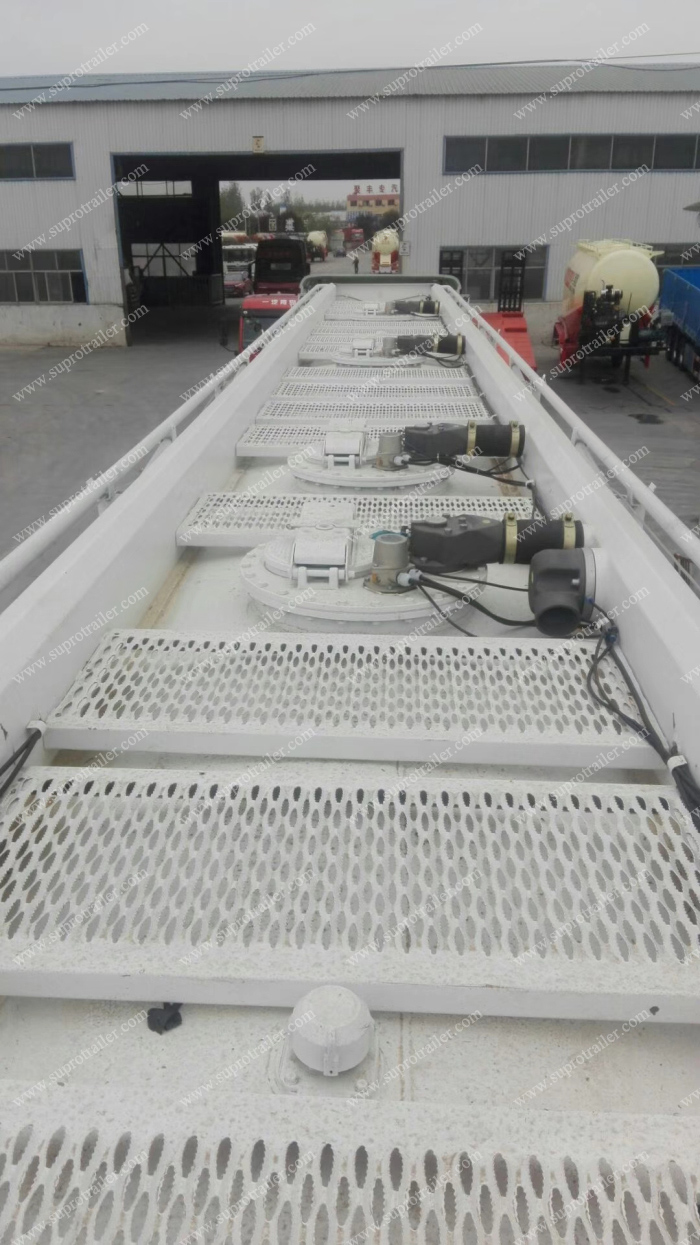

Cat Walk

With (Common model or special design)

Chassis

Main Beams

Welded design or Special design I beam, connected by bolts and nutsQ345 carbon steel material

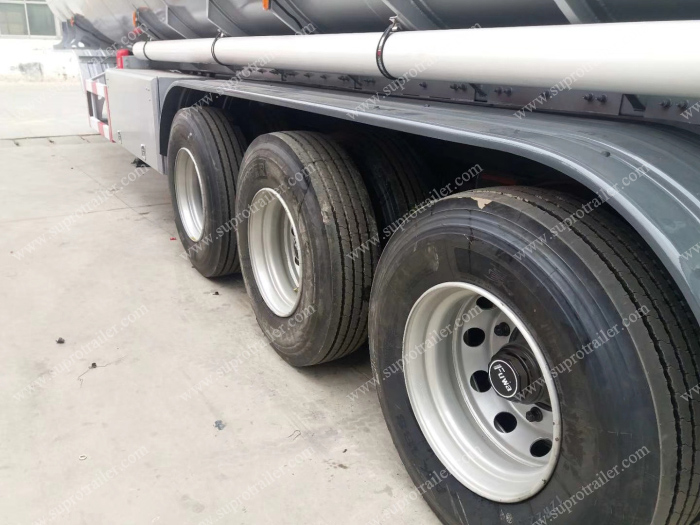

Axle

2 or 3 axles, BPW/FUWA/RUANBEN brand

Landing Gear

JOST (D200T ) or CHINA BRAND 28T

King Pin

JOST 2.00 or 3.5 inch bolt-in king pin

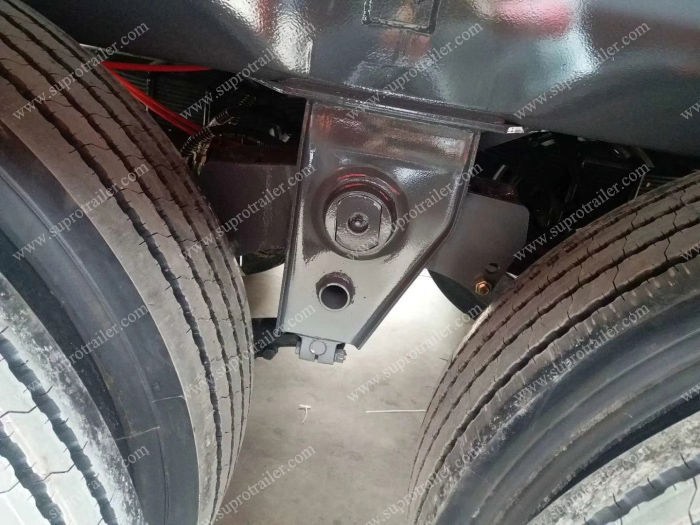

Suspension

Mechanical suspension/Germany or America type /air suspension

Leaf Spring

90(W)mm×13(Thickness)mm×10layers or 10mm×12mm×12 /without

Pneumatic Braking System

WABCO RE 6 relay valve; Spring brake chamber (TKL brand ); one piece of 45L air tank

Rim

9.00-22.5/8.00-20/8.5-20 China Brand

Tire

/12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional

ABS

Optional

Painting

Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats.

Accessories

One standard tool box

Shipping Terms

By bulk cargo ,RORO or 40HQ Containers
