Bulk Cement Tank Semi Trailer

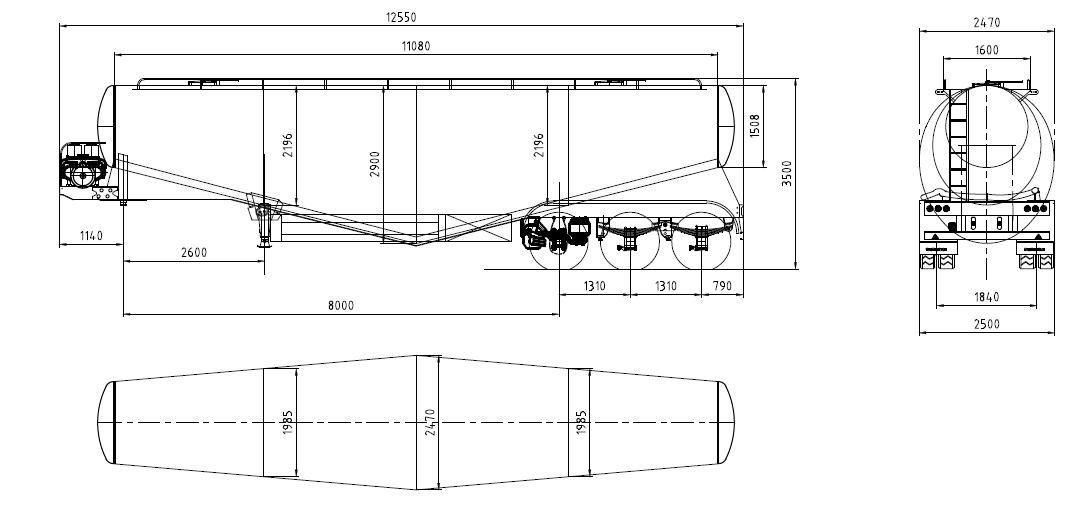

Drawing of the Bulk Cement Tank Semi Trailer

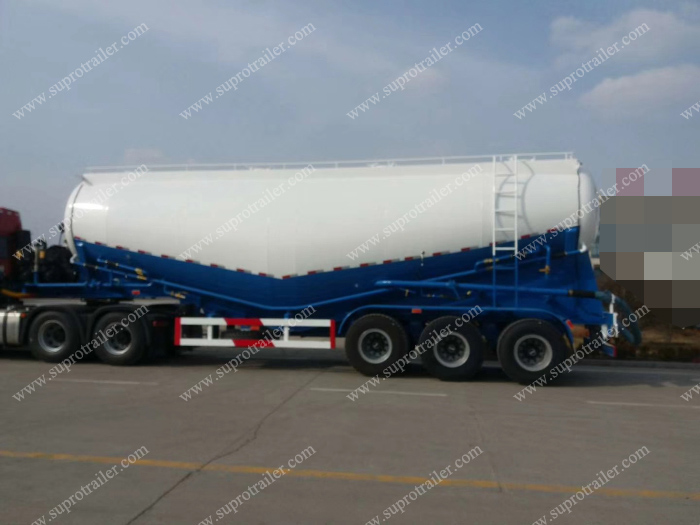

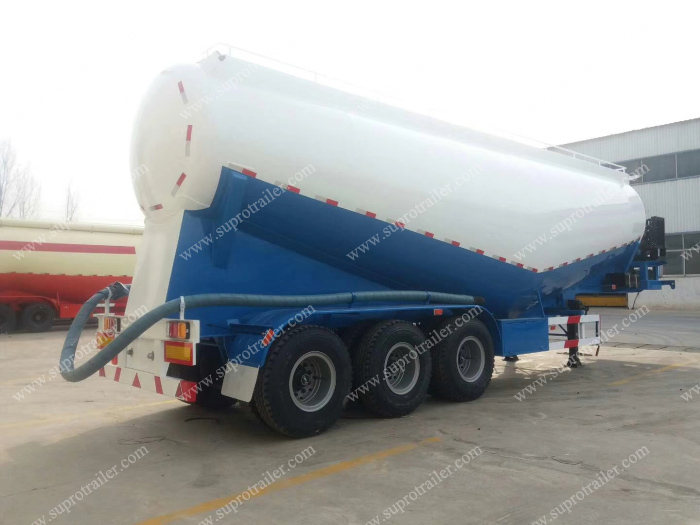

bulk cement tank semi trailer

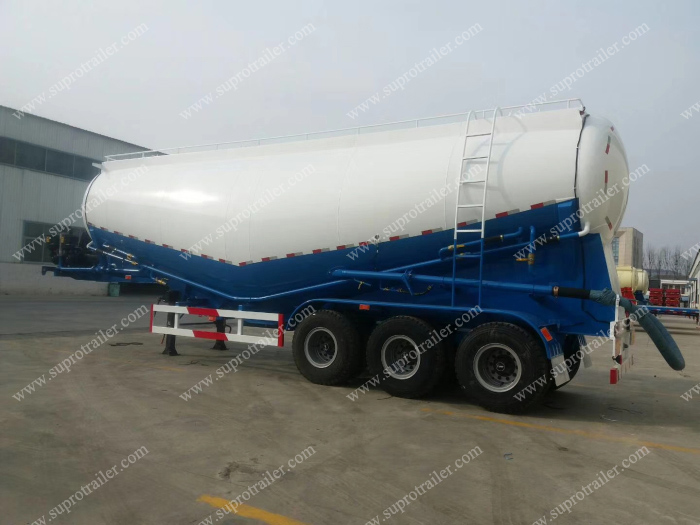

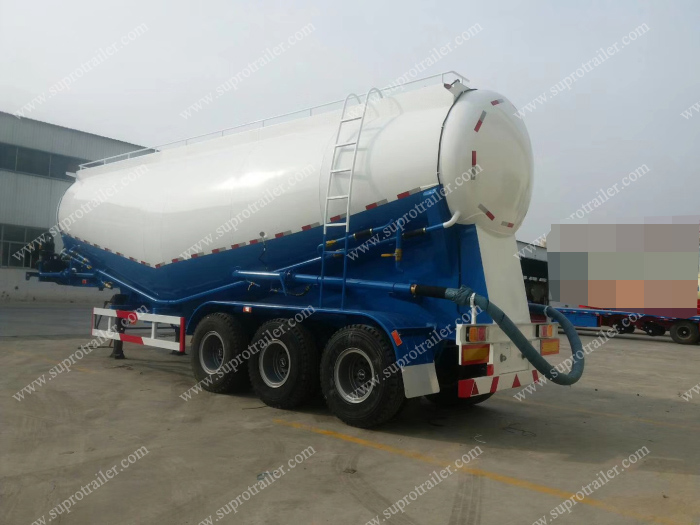

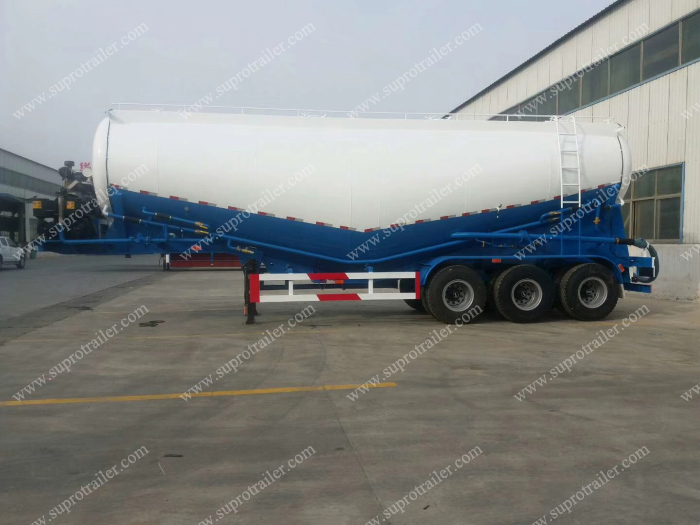

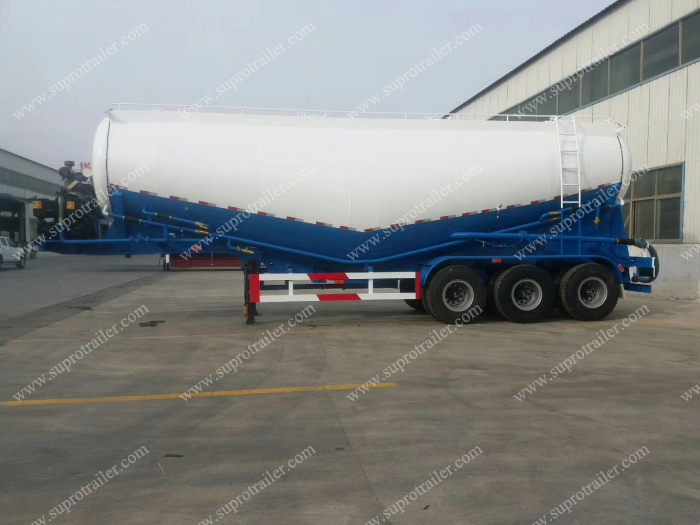

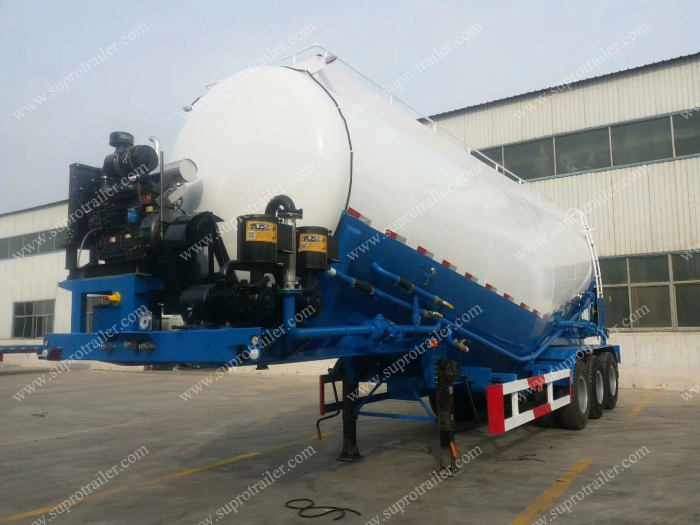

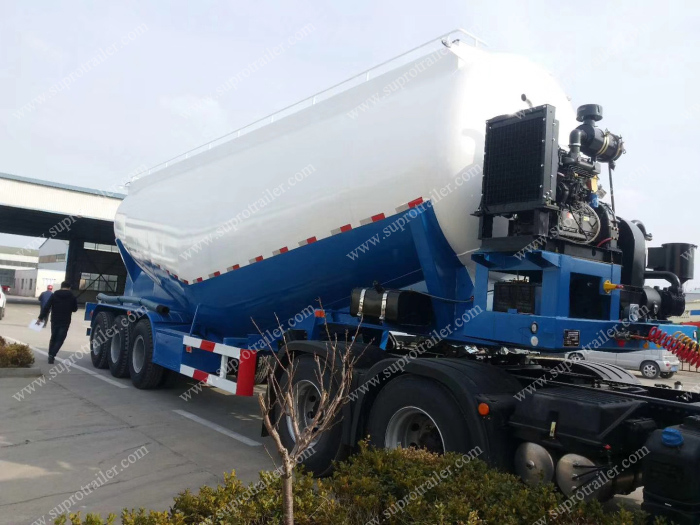

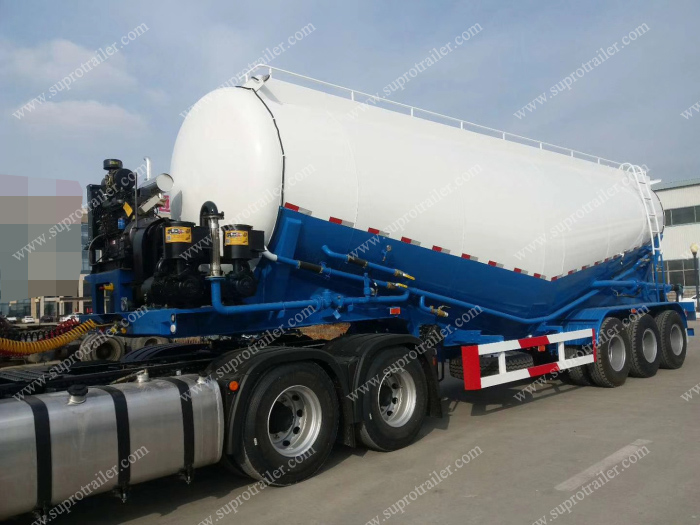

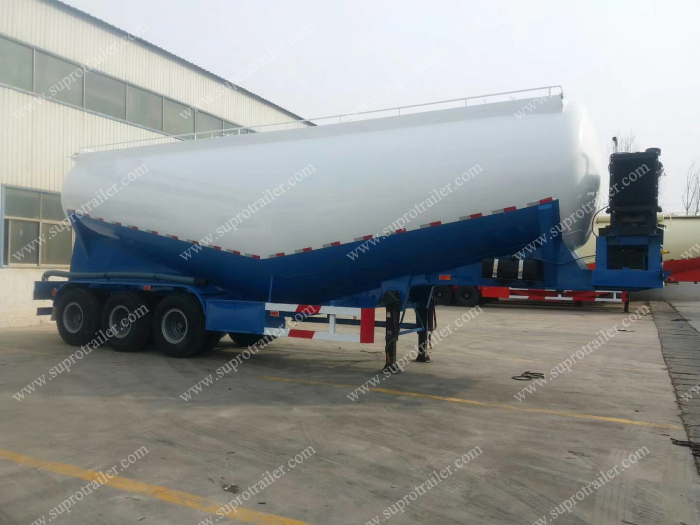

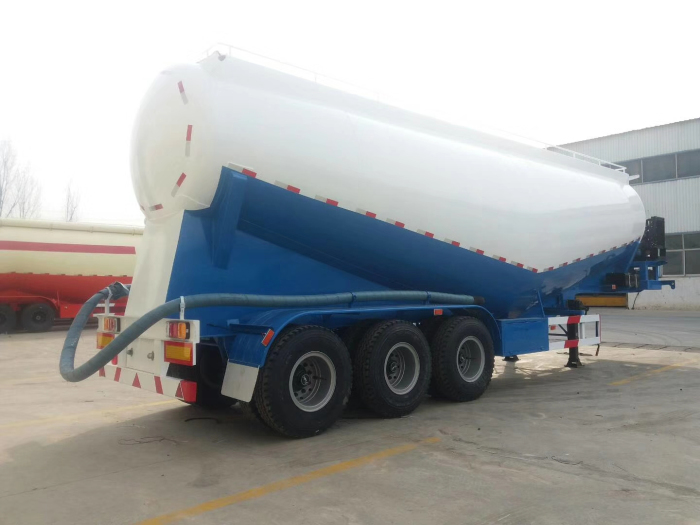

Steel Bulk Cement Tank Semi Trailer

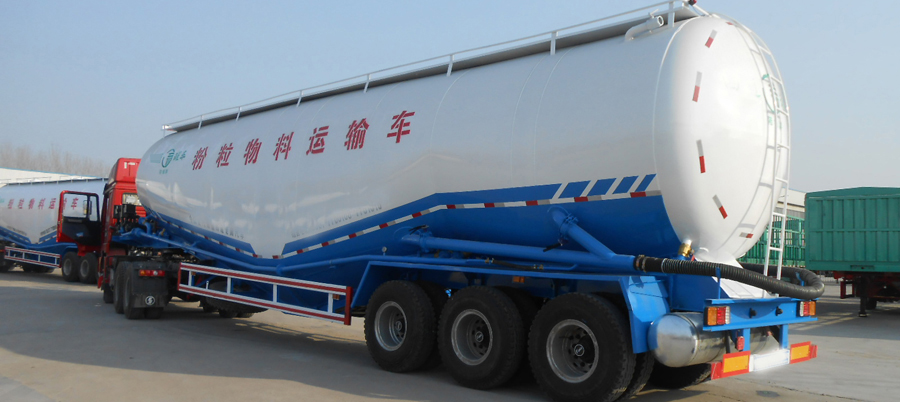

Cement bulk tank semi trailer

1.The tanker body of Supro Bulk cement trailer is made of high-strength and wear-resistant steel,to ensure the longer life span than ordinary material

2.Supro bulk cement trailer Use advanced welding technology and equipment to make sure the high safety and no air leak: Special welding machine to weld the tank body from one side but form smooth, sturdy and uniform welds on both sides.

3.The pipeline system is fitted with reasonable auxiliary blower and anti-wear device to realize smoother unloading process and faster unloading speed.

4.Equipping the famous brand spare parts,such as Bpw axles,Jost landing gear,Weichai engine, WBF air compressor that ensure its durability, save your costs on operation and repair.

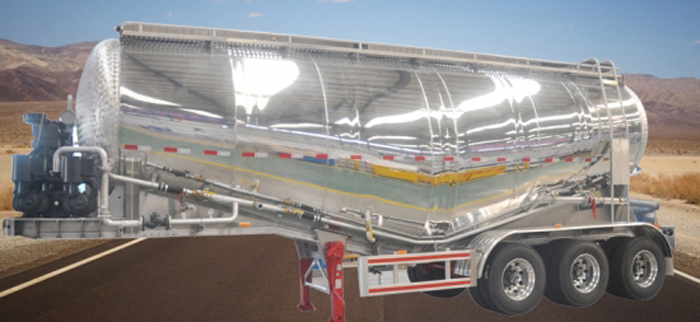

Aluminum Bulk Tanker Semi-Trailer

Aluminum Bulk Tanker Semi-Trailer

1.The tank body of Supro aluminum tanker is made of high-strength and wear-resistant high-leavl aluminum alloy,to ensure the longer life span than ordinary material.

2.Use advanced welding technology and equipment to make sure the high safety and no air leak: Special welding machine to weld the tank body from one side but form smooth, sturdy and uniform welds on both sides.

3.The pipeline system is fitted with reasonable auxiliary blower and anti-wear device to realize smoother unloading process and faster unloading speed.

4.Equipping the famous brand spare parts,such as weichai engine, WBF air compressor that ensure its durability, save your costs on operation and repair.

Specification sheest of the Cement tank semi trailer

Tank Body

Shape

One v-shaped silo, double silo, or triple silo design

Dimension

12000mm×2490mm×3990mm ( The exact size depends on the final design. )

Tare Weight (Semi Trailer)

About 7500kg-15000kg

Total Volume (m3)

30m³ -68 m³

Tanker Body Material

5mm or 6mm/ Q235 carbon steel

End Plate

5mm or 6mm /Q235 carbon steel

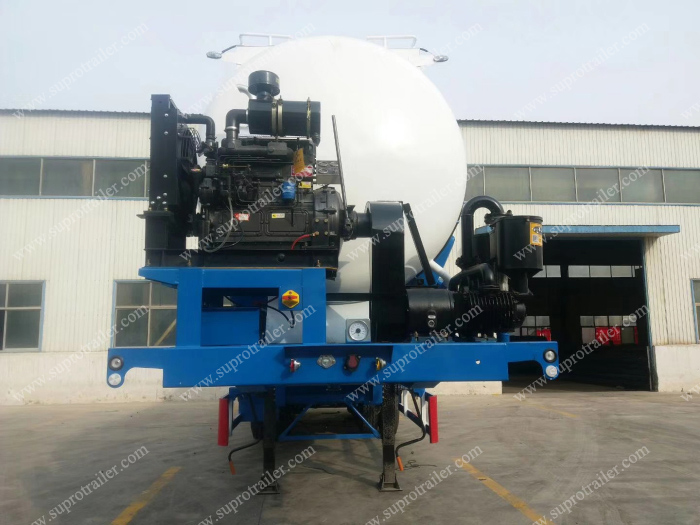

Diesel Engine

WEICHAI, Tianhe 4100/4102 or other brands

Compressor

BOHAI 10m³/12 m³or other brands

Manhole Cover

Carbon steel or Aluminum 500mm(Diameter)

Discharging Valve

Diameter is 3 or 4 inch Material: Aluminum

Discharging Pipe

3 or 4 inch rubber hose, 1pcs, 6m/each

Cat Walk

With (Common model or special design)

Chassis

Main Beams

Welded design, Q345 carbon steel

Axle

2 or 3 axles, 12T/13T/16T, BPW/FUWA/HUAJING brand

Landing Gear

JOST (D200T) or CHINA BRAND 28T

King Pin

JOST 2.00 or 3.5 inch bolt-in king pin

Suspension

Mechanical suspension/Germany or America type /Air Suspension

Leaf Spring

90(W)mm×13(Thickness)mm×10 Layers or 100mm×12mm×12 layers

Pneumatic Braking System

WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber (TKL brand); 45L air tank

Rim

9.00-22.5/8.00-20/8.5-20 Chinese Brand

Tire

12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional

ABS

Optional

Semi Trailer Surface Coating

Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats.

Accessories

One standard tool box

Shipping Terms

By bulk cargo, RORO
