Please visit the link of "Performance Case of our Goldhofer THP/SL" to check more photos and videos.

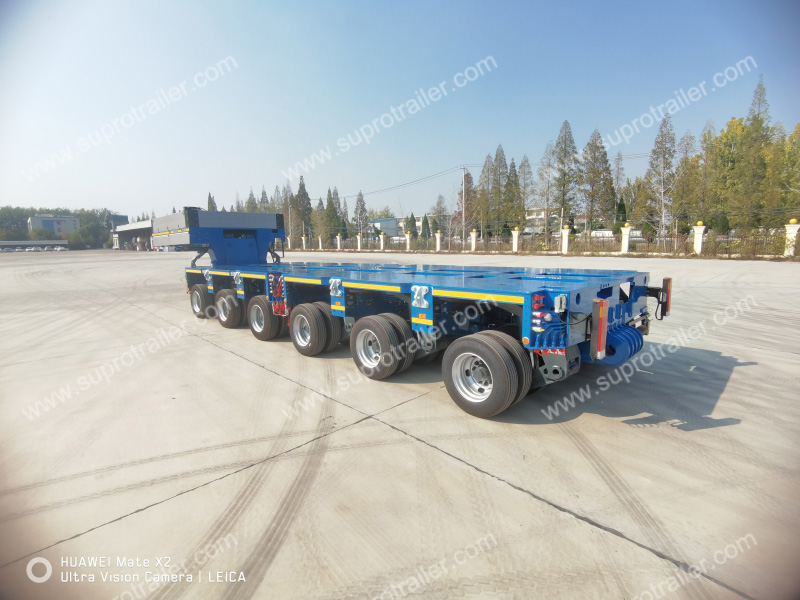

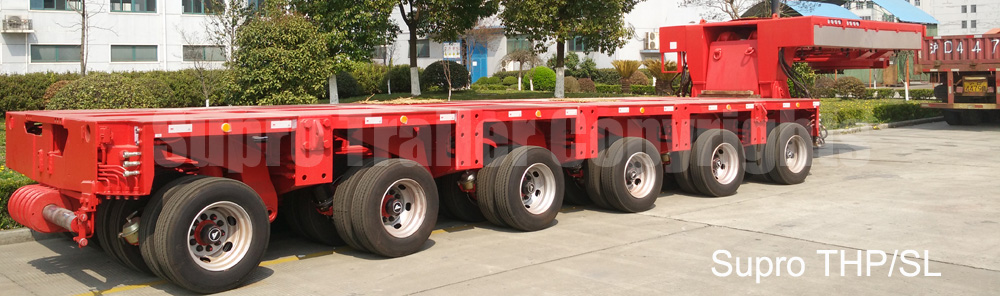

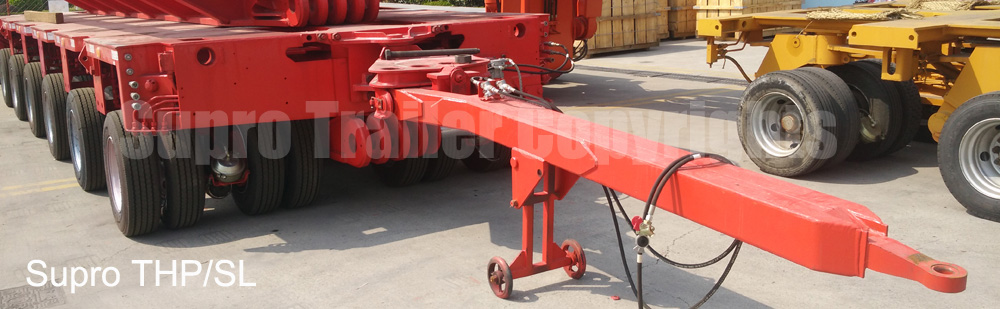

Goldhofer THP/SL - Hydraulic modular trailer

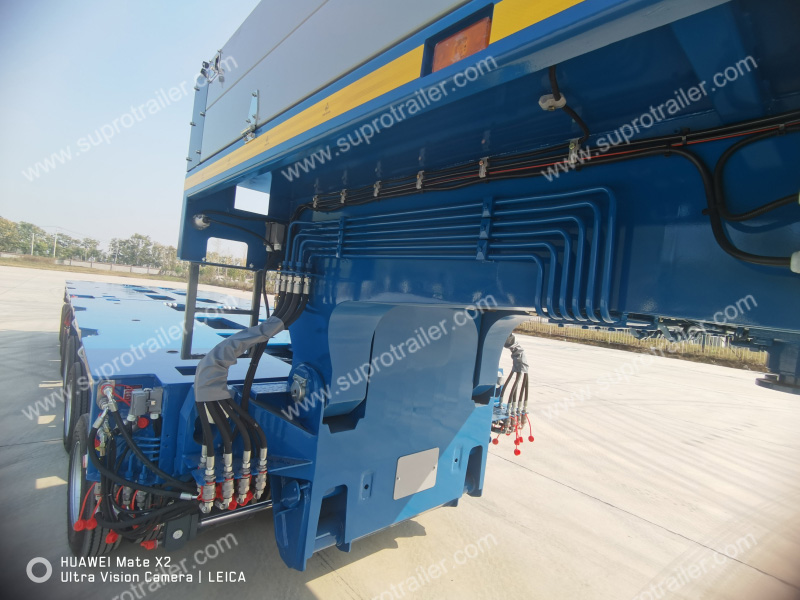

Goldhofer thp sl modular trailer


1. In order to make the Supro THP/SL to combine with Goldhofer THP/SL perfectly, Supro trailer use same brand of the hydraulic parts with Germany Goldhofer trailer.

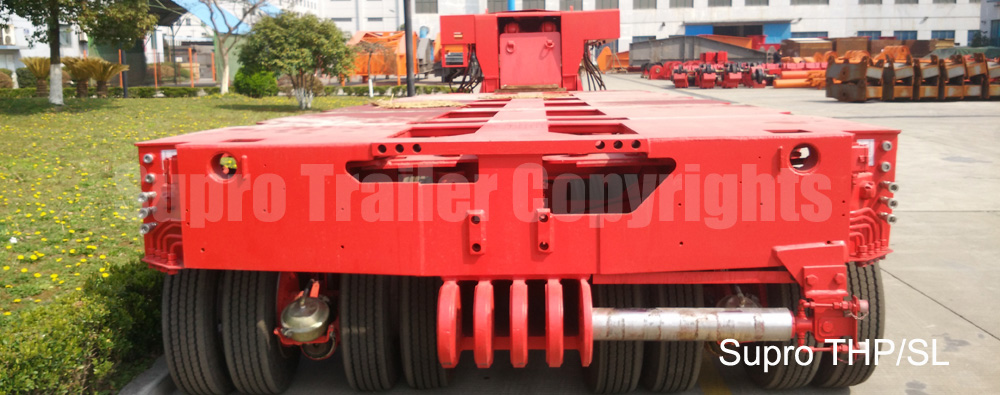

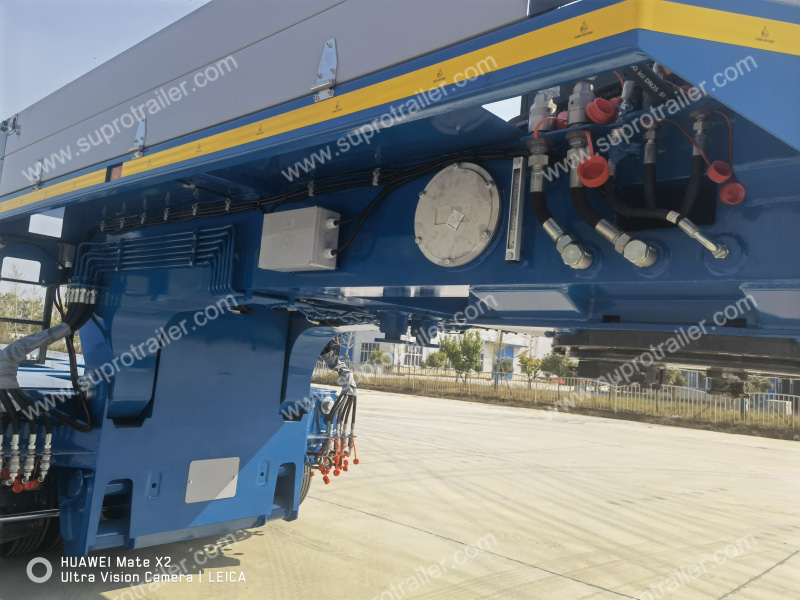

Goldhofer THP/SL


2. The working performance of the Supro THP/SL modular trailer as good as Goldhofer THP/SL modular trailer. It is a very good choice to work with Supro trailer for high cost performance!

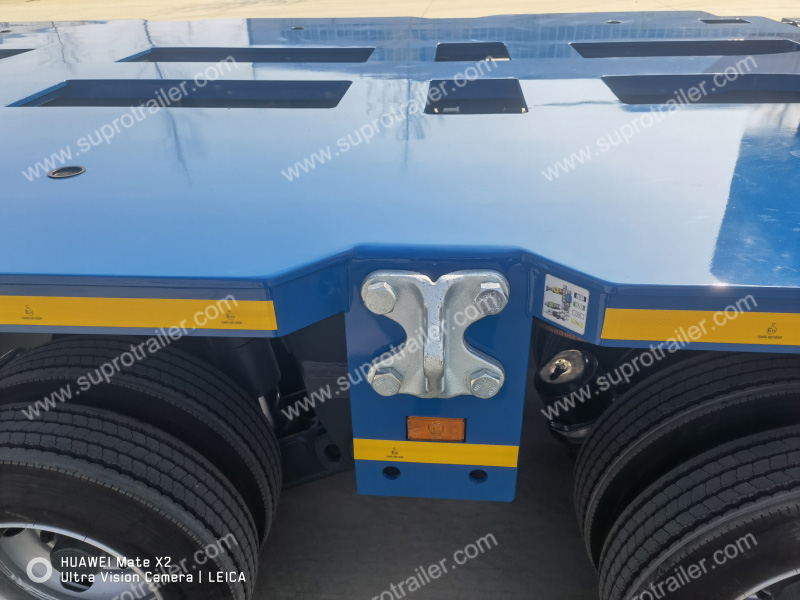

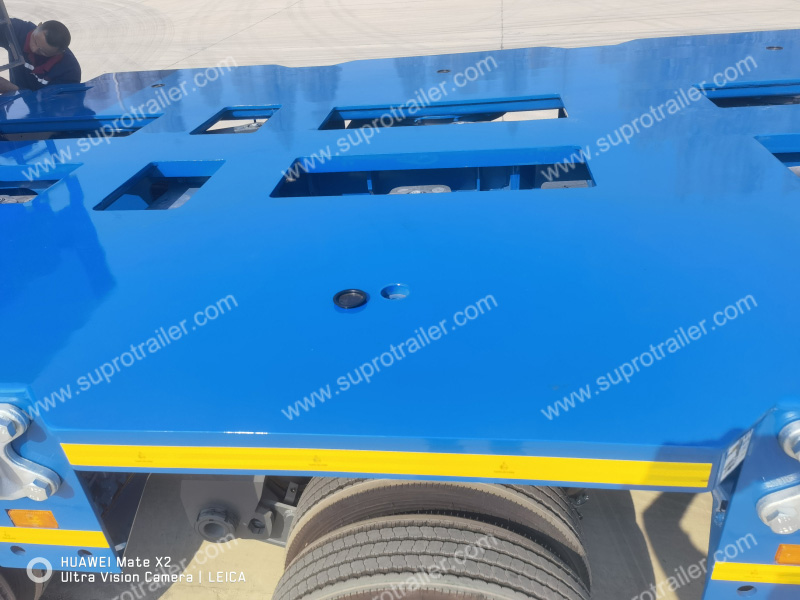

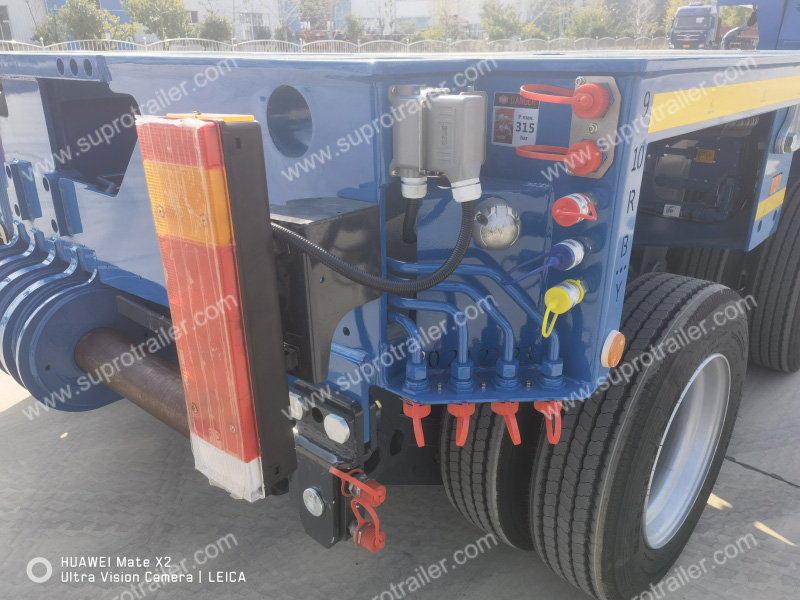

3. For the Goldhofer modular trailer, Supro trailer could combine with Goldhofer THP/SL and Goldhofer THP/H

The difference between the Goldhofer THP/SL and Goldhofer THP/H is the width of the trailer. Goldhofer THP/SL is 3000mm width, and Goldhofer THP/H is 3600mm width. So the loading capacity of Goldhofer THP/H is bigger than Goldhofer THP/SL.

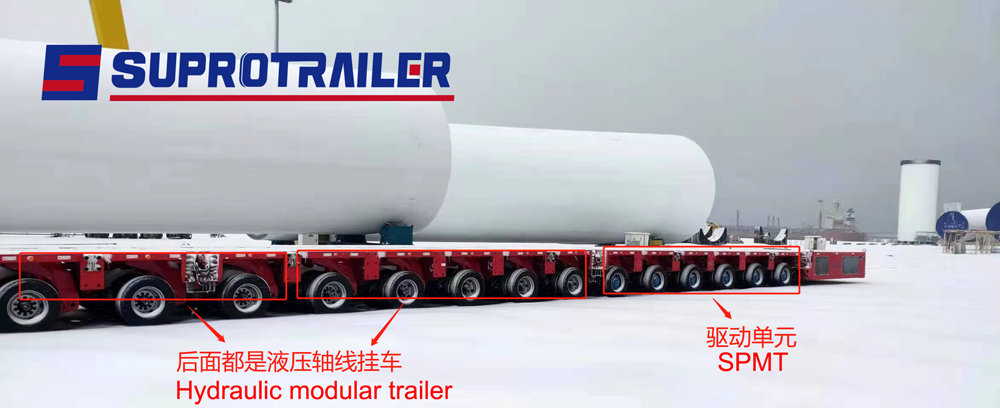

4. Supro Trailer can produce the "Self Propelled Modualr Trailer" to combine with Goldhofer SPMT.

goldhofer self propelled modular trailer

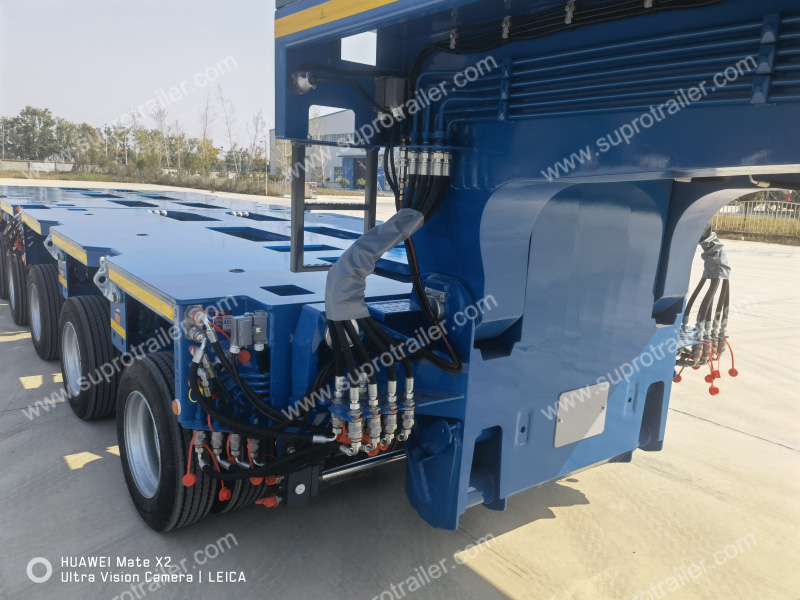

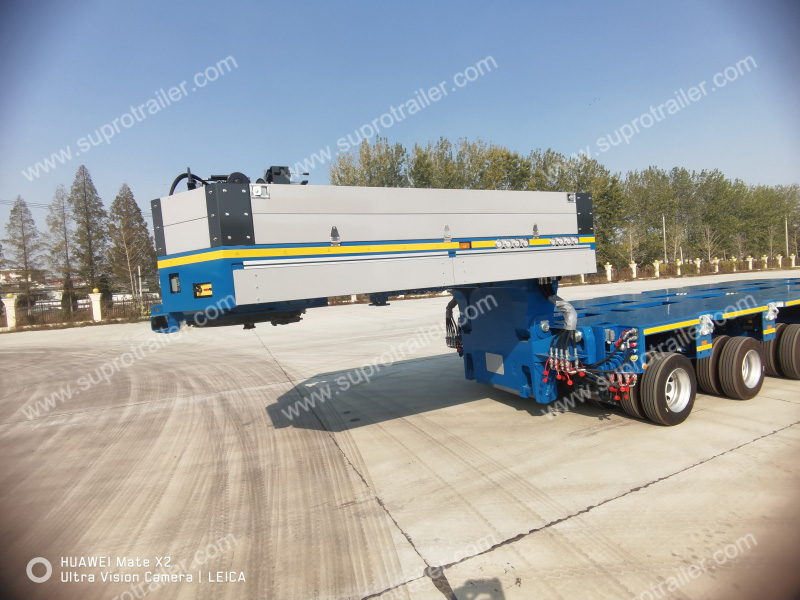

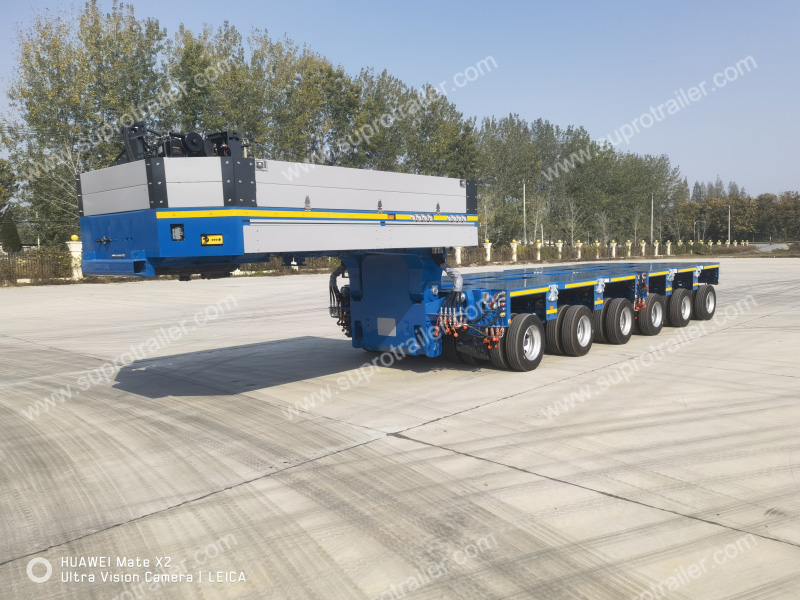

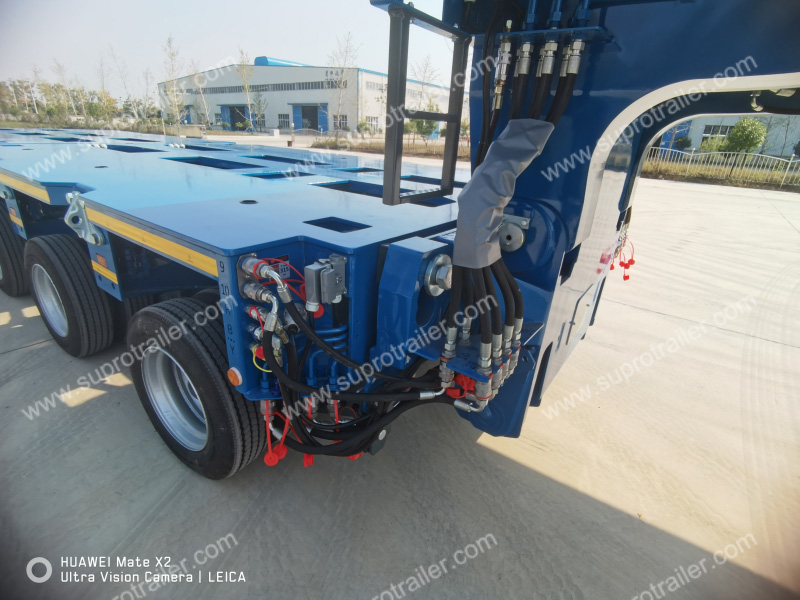

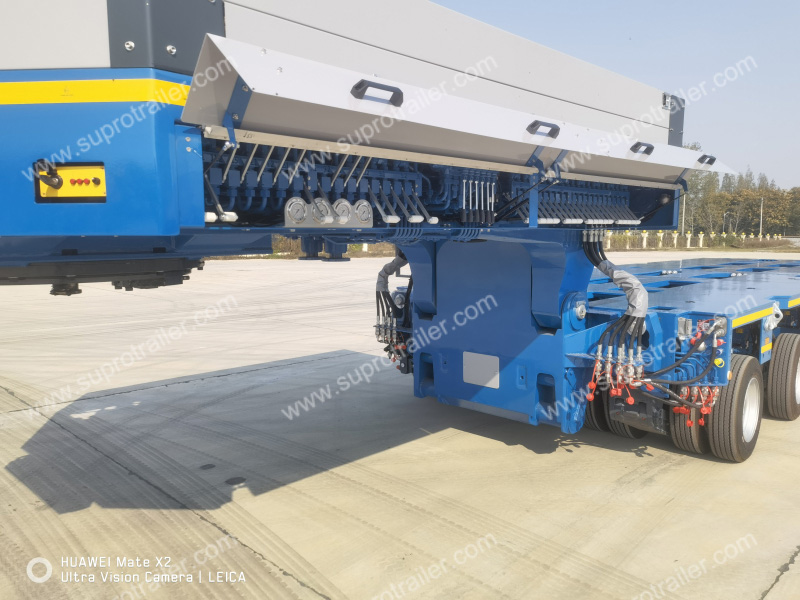

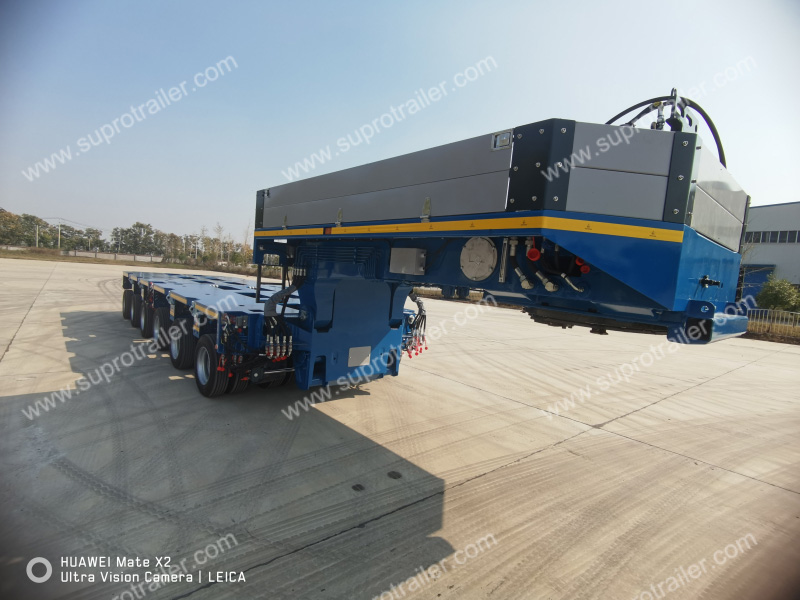

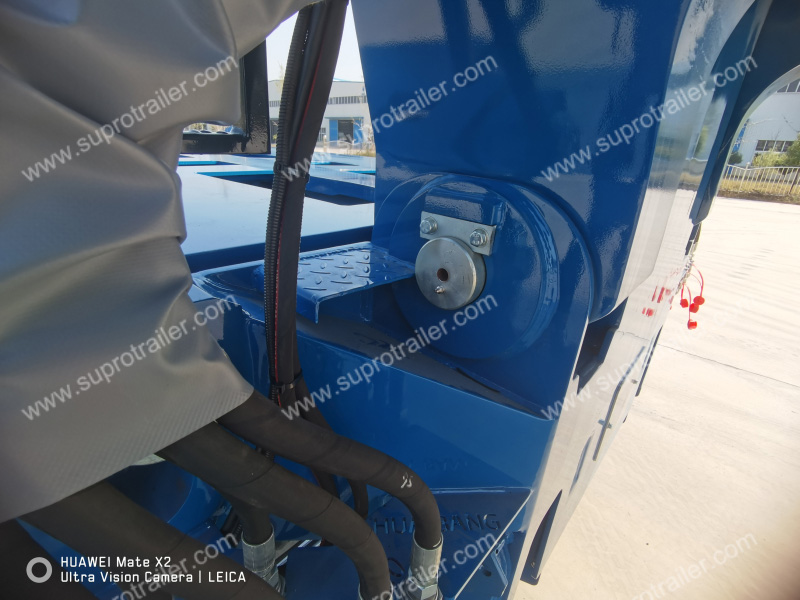

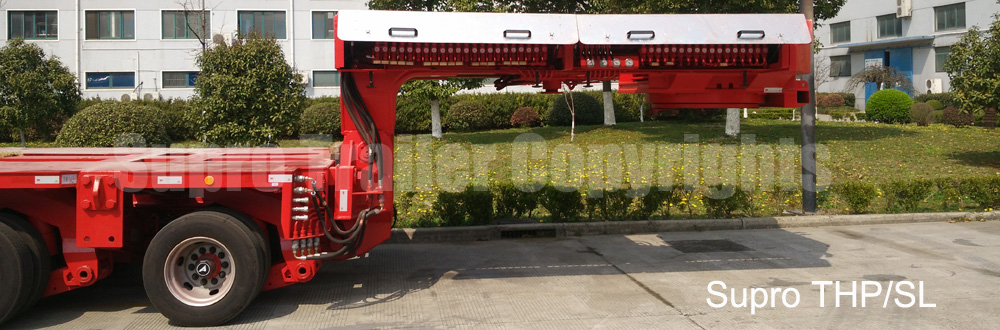

Goldhofer THP/SL Gooseneck

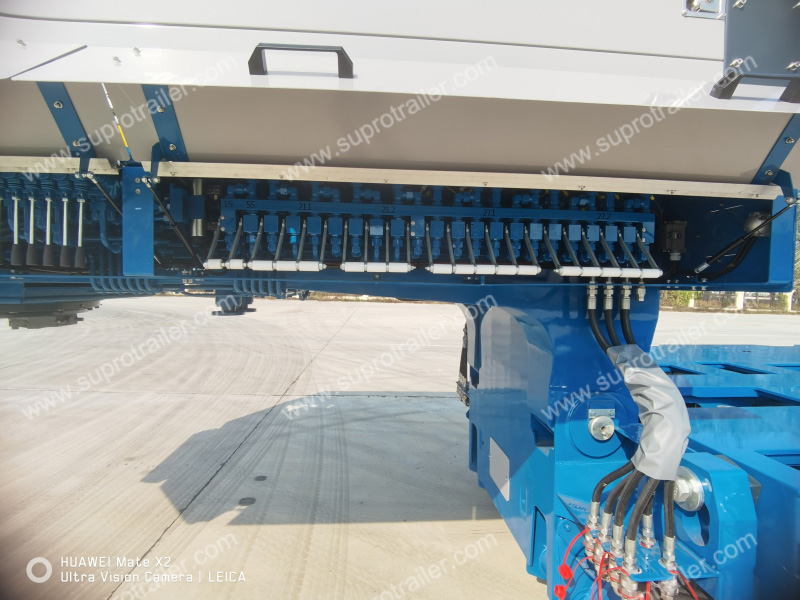

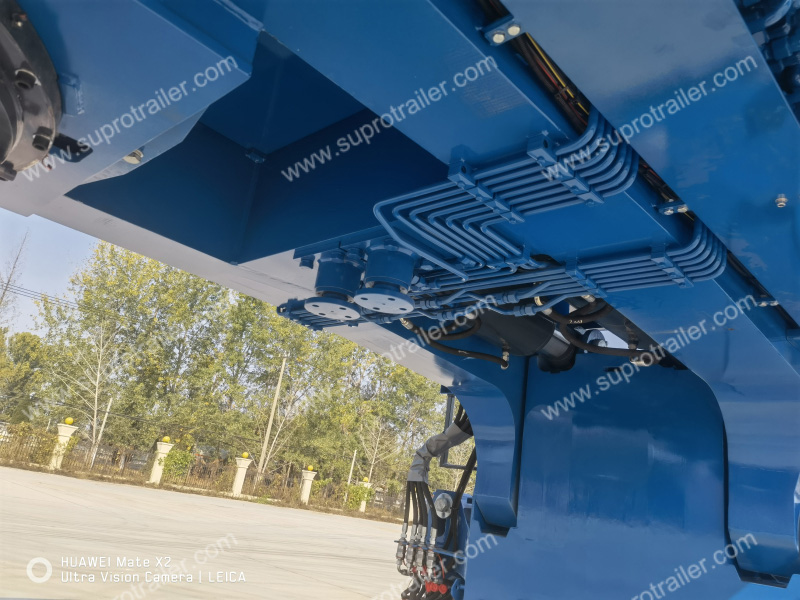

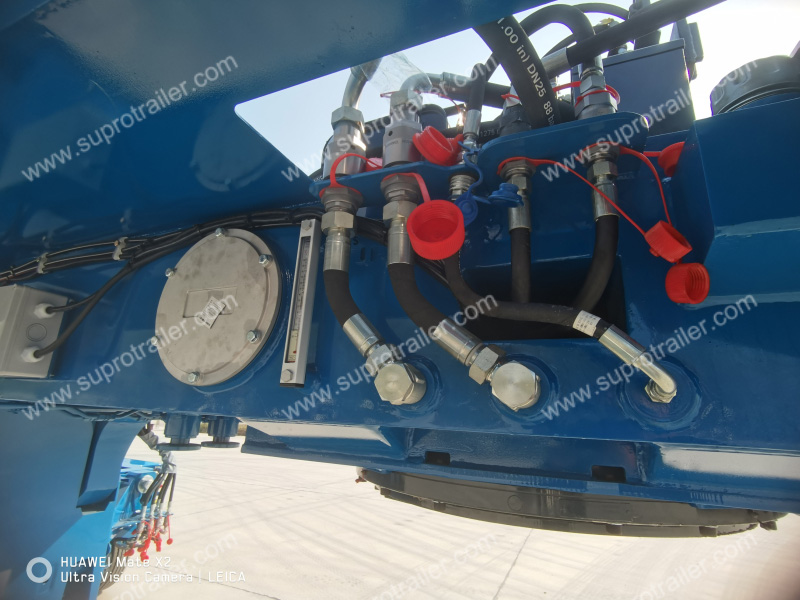

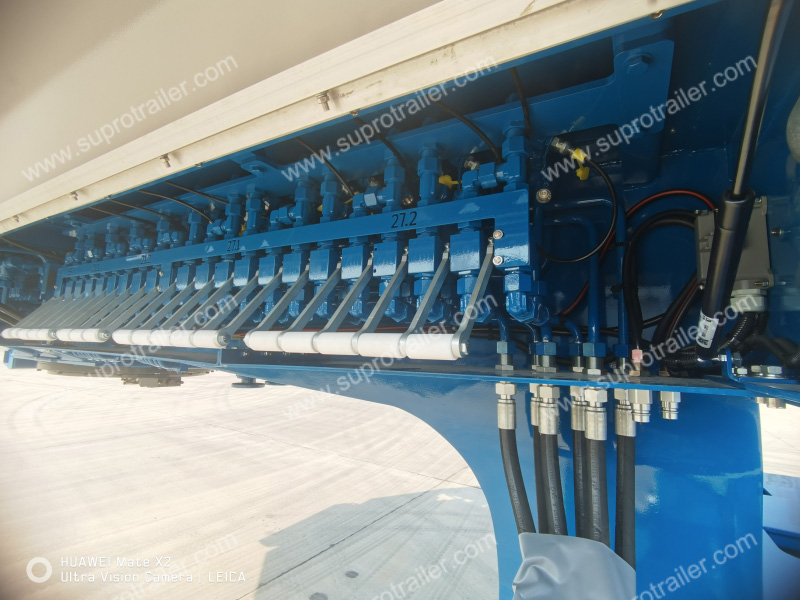

Supro Trailer make the Supro hydraulic gooseneck to same as Goldhofer 100%, even the hydraulic parts, and hydraulic valves. We bought the accessories of gooseneck from Germany goldhofer suppliers!

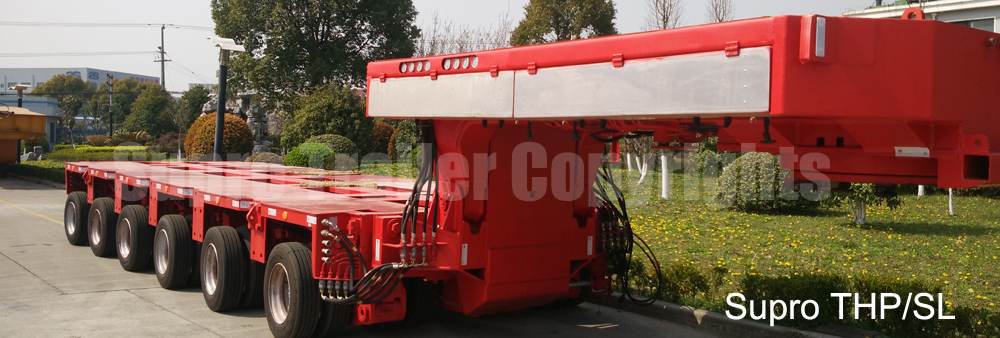

Goldhofer hydraulic gooseneck

Supro Hydraulic modular trailer

1. Supro hydraulic modular trailer has could combine with Goldhofer trailerNicolas trailer, Scheuerle trailer, Cometto trailer etc. And also, Supro trailer has own design on "Supro hydraulic modular trailer"


1.1 Supro Hydraulic modular trailer- Combine Nicolas modular trailer

multi axle hydraulic modular trailer


1.2 Supro Own Deisgn Hydraulic Modular Trailer

multi axle modular trailer


2. Supro trailer has very powerful technician teams on hydraulic modular trailer. And our own deisgn modular trailer get though the CE certification, and exported to France market! Below photo is our "CE Hydraulic modular trailer".

Goldhofer trailer


3. Supro Trailer produce high standard hydraulic modular trailer for China rockets transport. And we design the modular trailer against on the rocket special transport demands.

goldhofer hydraulic modular trailer

Toolings for Hydraulic modular trailer

1. For heavy cargo such as Transformer, we could use "Girder Bridge" to transport the cargo!

Girder bridge trailer


2. Spacer for Hydraulic modular trailer

The Spacer combine with Hydraulic modular trailer to make the cargo platform be more longer. And the lenght of the spacer could be customized as your special demands.

Spacer for hydraulic modular trailer

3. Drop deck bed for Hydraulic modular trailer

The "Drop deck bed" could load Max. 200 tons cargo for Goldhofer THP/SL.

Drop deck bed for Hydraulic modular trailer

3. Bolster for Hydraulic modular trailer

"Bolster/ Turntable" tooling is for long and high strength cago. It can reduce the modular trailer axle amounts, and the steering angle is much more bigger!

bolster for hydraulic modular trailer


4. Windmill Tower Adapter

Supro Trailer produce "Windmill Tower Adapter", and also Supro trailer produce "Windmill Blade Adapter". "Supro Extendable trailer" is also for the windmill blade transport.

Please visit the products of "Supro Windmill Industry Trailer" to check our trailers.

windmill tower adapter for hydraulic modular trailer


Goldhofer THP/SL Commissioning

Goldhofer THP/SL Specifications

2990m Width Supro Trailer Goldhofer THP/SL Multi axle trailer

2990m width ST-GH modular trailer specification
Loading Axle No. Gross WT.(kg) Tare WT.(kg) Rated load./kg No. of Tyre Min.turning radius/mm Out side size /mm
inside outside L W H
45 tons 2 53600 8600 45000 16 450 4070 3000 2900 1175
65 tons 3 77400 12400 65000 24 1500 5800 4500 2900 1175
90 tons 4 106200 16200 90000 32 2600 7600 6000 2900 1175
110 tons 5 130000 20000 110000 40 1500 5800 7500 2900 1175
135 tons 6 158800 23800 135000 48 2000 6700 9000 2900 1175
155 tons 7 182600 27600 155000 56 2600 7600 10500 2900 1175
180 tons 8 211400 31400 180000 64 3100 8500 13000 2900 1175

Tyre size 215/75R17.5 135/135J Rim Tyre 6.0x17.5(10 holes)
Taming mode Full wheel steering of constancy steering Braking system Double pipe braking system/ Double Hoot/Acting on all wheels
Wheelbase (mm) 1500 Track Front/Back 735/1800
Axle capacity 22500 Platform Height 1175 +300/-300

2990mm width Multi axle trailer Speed and Loading table

Speed (km/h)

Loading (tons)

5

45

10

31

15

27

20

25

25

22

30

21

35

20

40

19

60

18

80

17

3600m Width Supro Trailer Goldhofer THP/SL Multi axle trailer

3660m width ST-GH modular trailer specification
Loading Axle No. Gross WT.(kg) Tare WT.(kg) Rated load./kg No. of Tyre Min.turning radius/mm Out side size /mm
inside outside L W H
60 tons 2 7000 10000 60000 16 3135 8397 3200 3600 1175
90 tons 3 105000 15000 90000 24 2694 8397 4800 3600 1175
120 tons 4 139400 19400 120000 32 3355 9432 6400 3600 1175
150 tons 5 175000 25000 150000 40 2012 7365 8000 3600 1175
280 tons 6 210000 30000 180000 48 2696 8397 9600 3600 1175
215 tons 7 244600 34600 210000 56 3355 9432 11200 3600 1175
240 tons 8 278000 38600 240000 64 3355 9432 12800 3600 1175

Tyre size 235/75R17.5-16 143/141J Rim Tyre 6.75x17.5(10 holes)
Taming mode Full wheel steering of constancy steering Braking system Double pipe braking system/ Double Hoot/Acting on all wheels
Wheelbase (mm) 1600 Track Front/Back 815/2280
Axle capacity 30000 Platform Height 1250 +300/-300

3660mm Width Multi axle trailer Speed and Loading table

Speed (km/h)

Loading (tons)

5

45

10

35

15

30

20

27

25

25

30

23

35

21

40

20

60

18

80

17

Draft of Multi axle modular trailer/ Goldhofer THP/SL model

Goldhofer THP SL modular trailer

Goldhofer THP/SL Model Multi axle modular trailer Combination choice:

Multi axle modular traile

Goldhofer THP/SL
