Windmill Blade Transporter

Supro Trailer is a famous heavy transporter manufacturer in the world. And we produce special trailers for the wind power mill equipment transport.

Supro Trailer produce Extendable flatbed trailer,Extendable modular trailer and Windmill blade adapter for the blade transport. Also, we produce windmill tower adapter for the windmill tower transport.

Windmill Blade Adapter

Supro has two stuctures of the Windmill blade adapter. Windmill blade A Generation and Windmill blade B Generation. The difference between the A and B is the oil cylinders position. Gneration A adapter use the big cylinders to raise us the adapter, and the Generation B adapter use the cylinders to pull the adapters.

One adapter could has some Flange plates. And one flange plates could meet 7 specifications of the windmill blade.

More detail information, please check the production information of Windmill Blade Adapter

Windmill Blade Trailer

Supro Trailer produce special low bed trailer and hydraulic modular trailer for the adapter. Because the windmill blade transport should has some balance cargo, so we make the trailer be hollow to be fulling with sands etc.

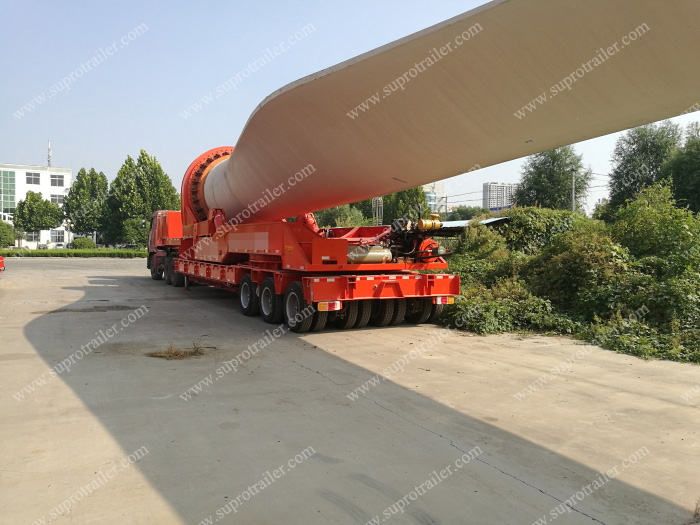

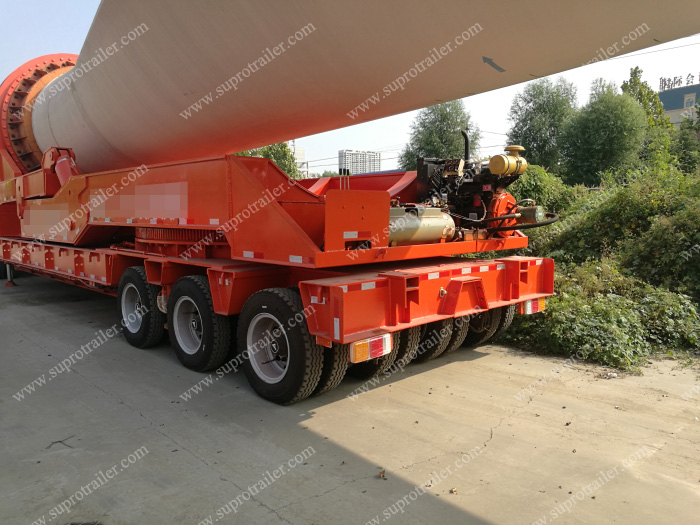

The adapter combined with Hydraulic modular trailer. And the hydraulic modular trailer is customized with some hollow holes, that is for the balance cargo such as sands.

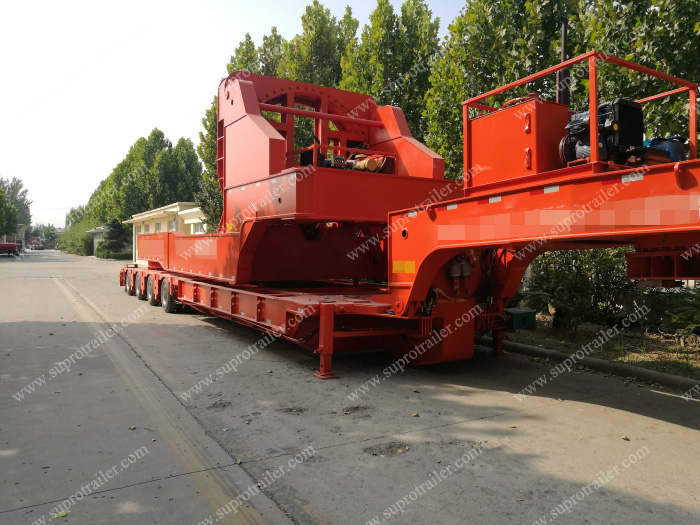

The operation hydraulic system of the adapter.  The operation platform located on the hydraulic modular trailer, and it can achieve steering and raising by the manual operation.

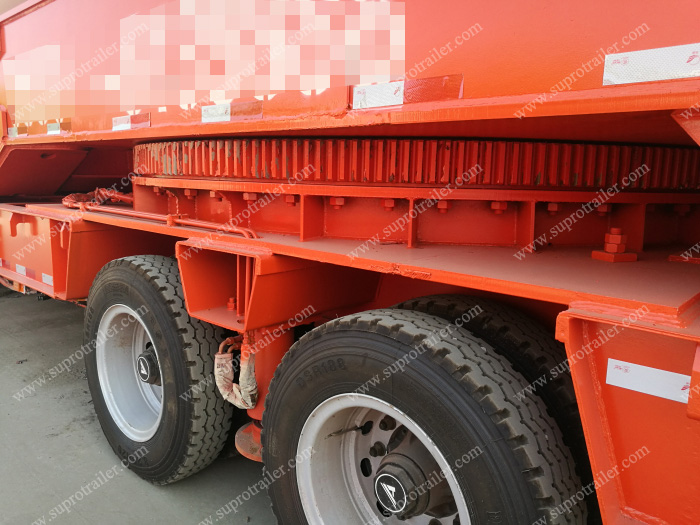

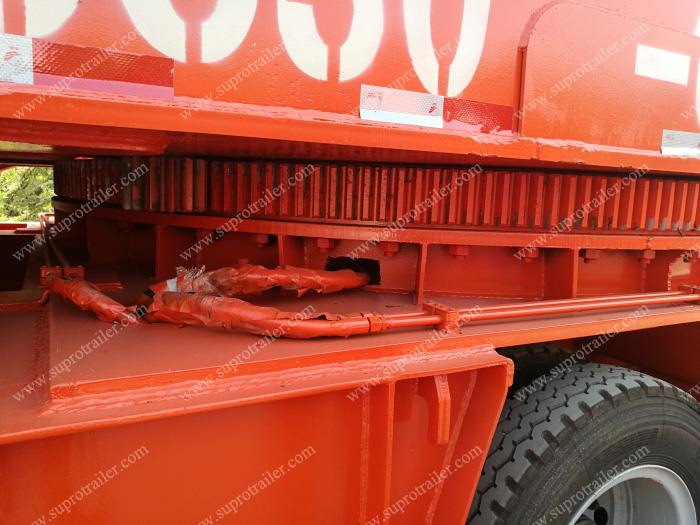

The big steering bering of the adapter

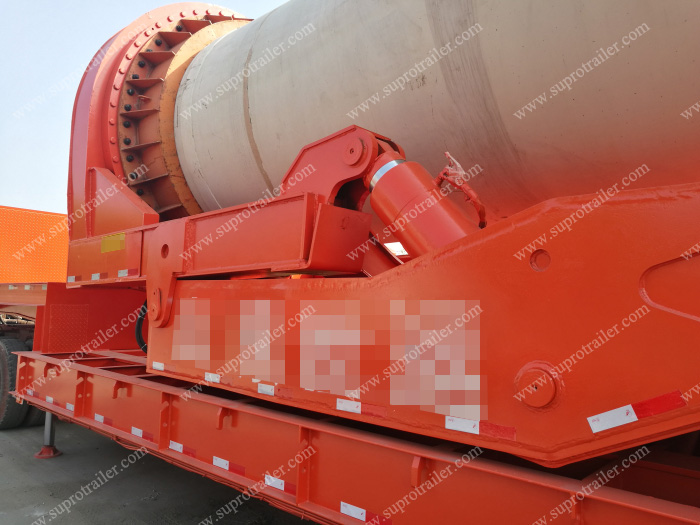

The raising cylinders of the Genrations A adapter, it raise up the adapter. And for the Generation B, the cylinders pull up the adapter.

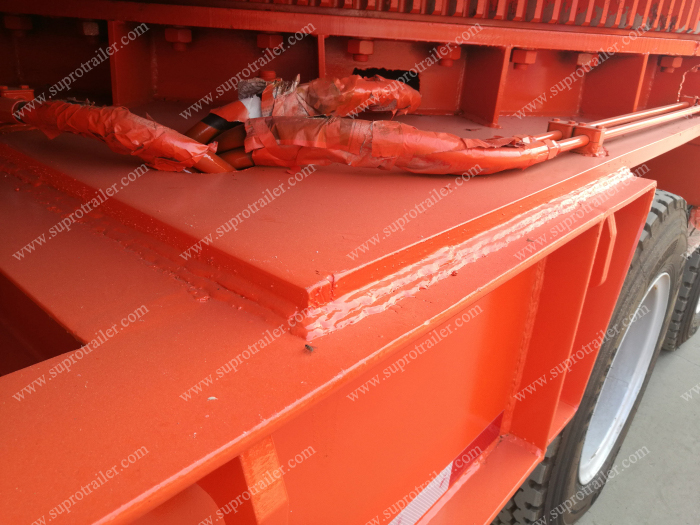

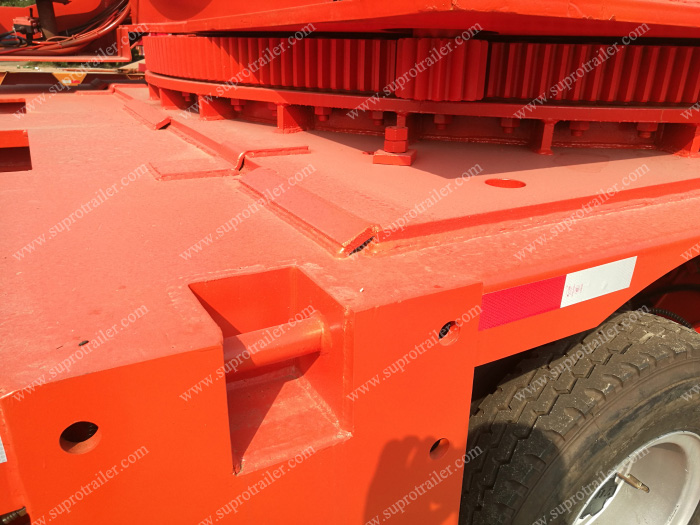

The windmill adapter is welded on the hydraulic modular trailer platform.

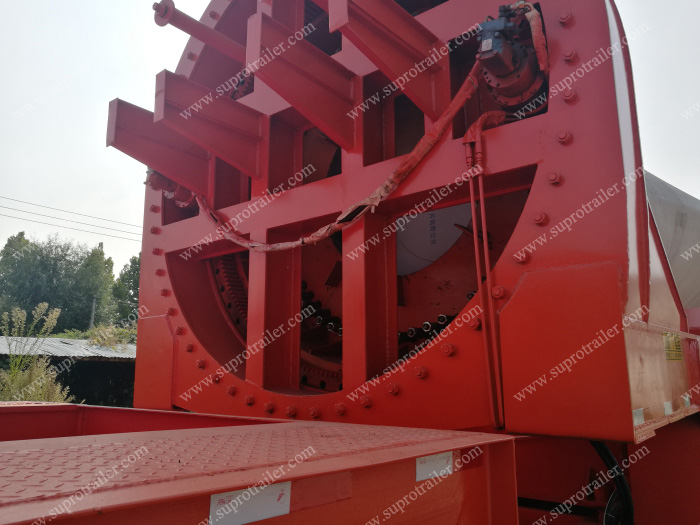

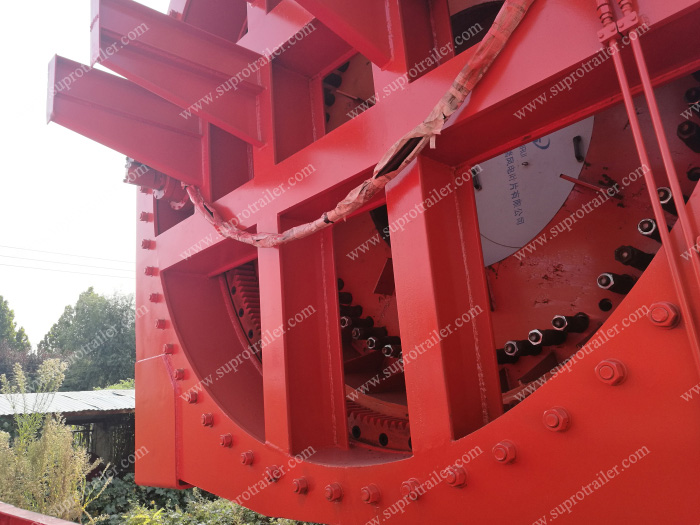

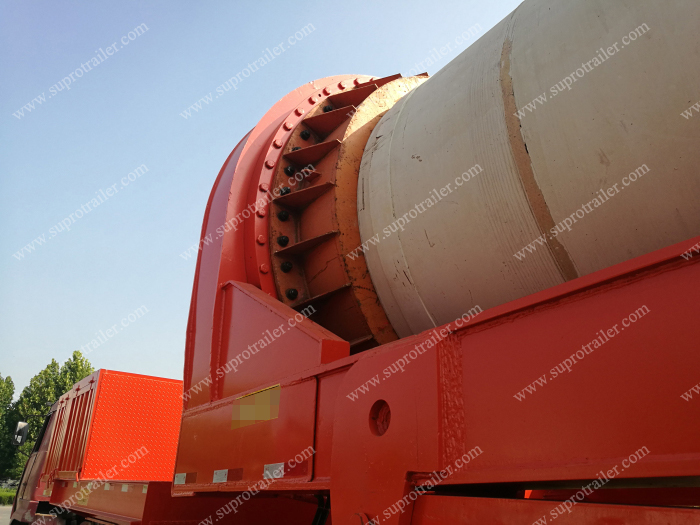

The windmill blade is combined with the adapter though the flange plate. It is fixed by the bolts. And also the flange palte can meet 7 specifications of the adapter, one adapter could combine with different flange plates.

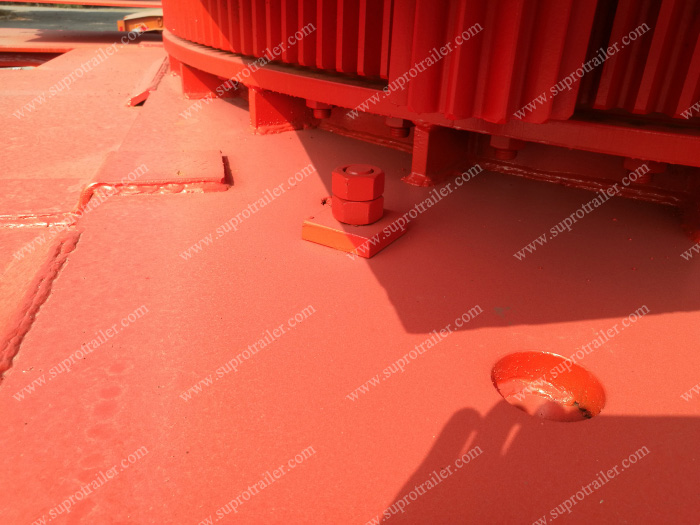

Not only weld the adapter on the hydraulic modular platform, but also it is fixed by the bolts and nolts.

Advatanges of Supro Trailer.

1.Abundant Experience on Hydraulic modular trailer. We started to produce heavy duty trailer since 1942 year, and we produced the first modular trailer in China. Our modular trailer can combine with Goldhofer THP/SL, Nicolas MDED, Scheuerle, Cometto etc.

2.Advanced technology. Supro Trailer has owned design on modular trailer. The load capacity can reach 50 tons per axle lines. This is much higher than Goldhofer modular trailer.

3.High quality system. Supro trailer can get throught the CE certification of hydrulic trailer. We exported our trailers to Russia, England, France, Germany etc.

4.Professional technician team. Supro egnineers can design some toolings for your modular trailers. Such as spacer, gird bridge, drop deck bed, loading sharing beam, turntable etc.

5.The cost performance of Supro extendable trailer is much higher than Europe companies. Our price is much better, and the quality is good.
