Supro Container Trailer

Supro Trailer produce normal container trailers and some special container trailers such as Tipper container trailer, Extendable container trailer and Side loader container trailer.

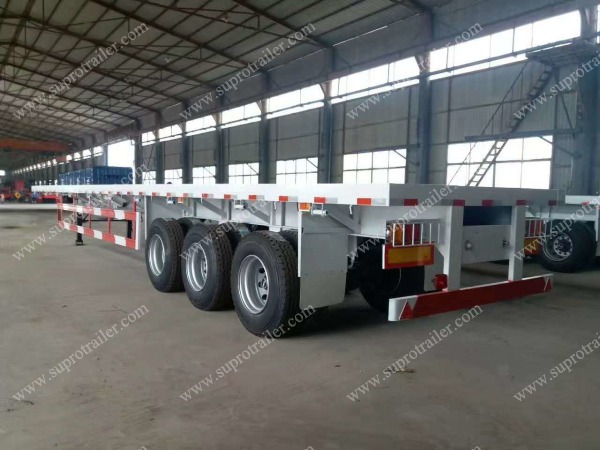

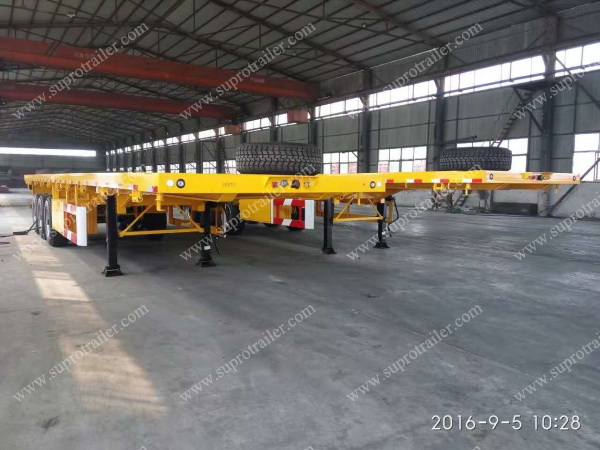

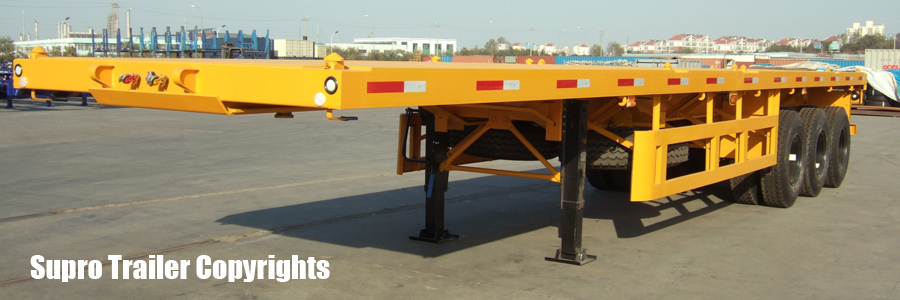

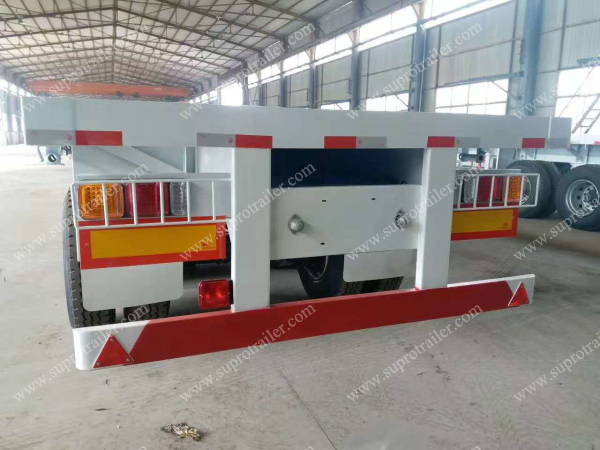

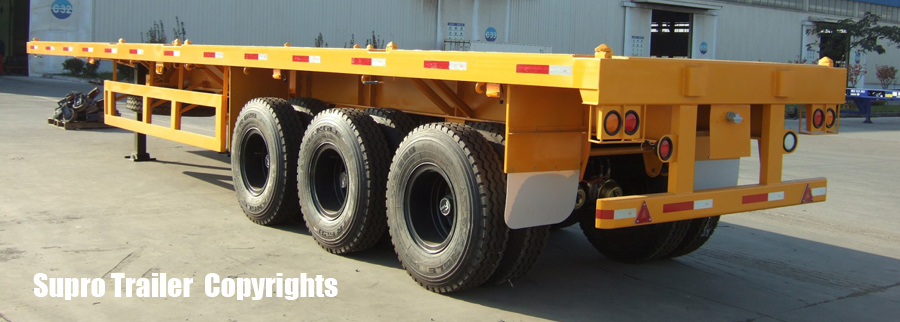

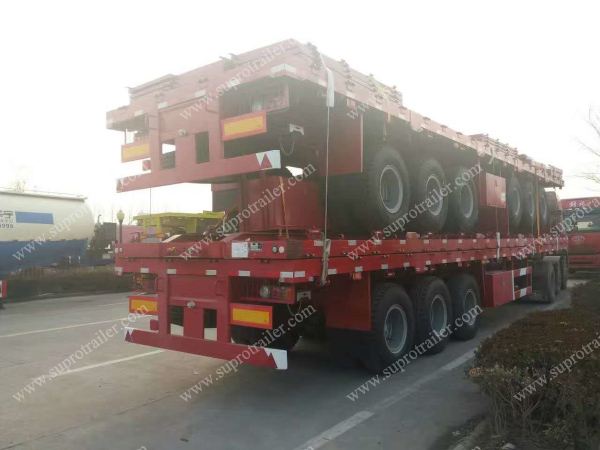

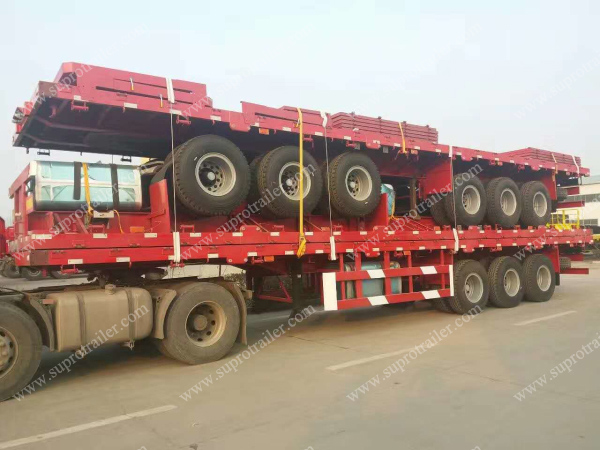

Flatbed Container Trailer

The flatbed container trailer has 20ft single axle container trailer, 20ft double axle container trailer, 40ft double axle container trailer and 40ft three axles container trailer.

flatbed container trailer

china container trailer

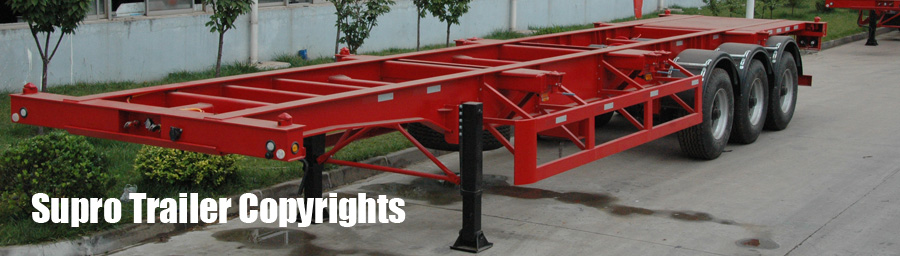

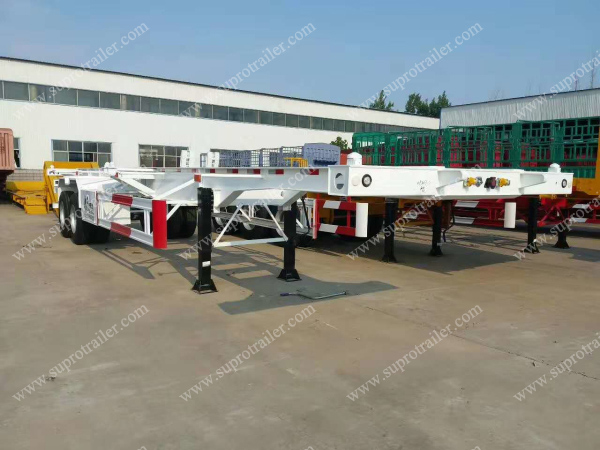

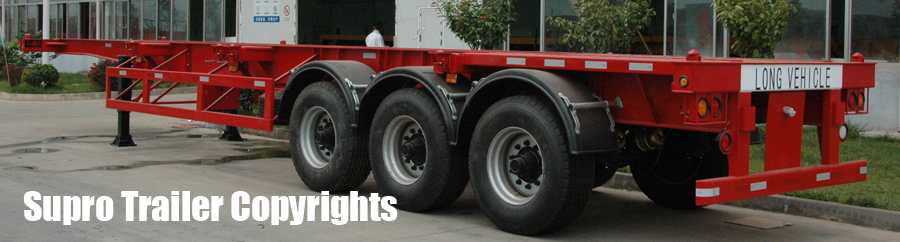

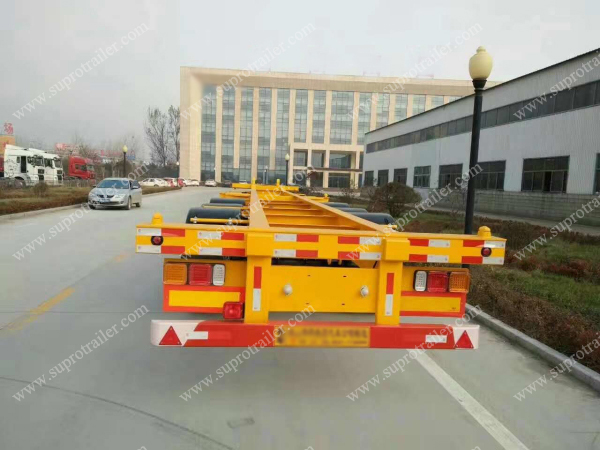

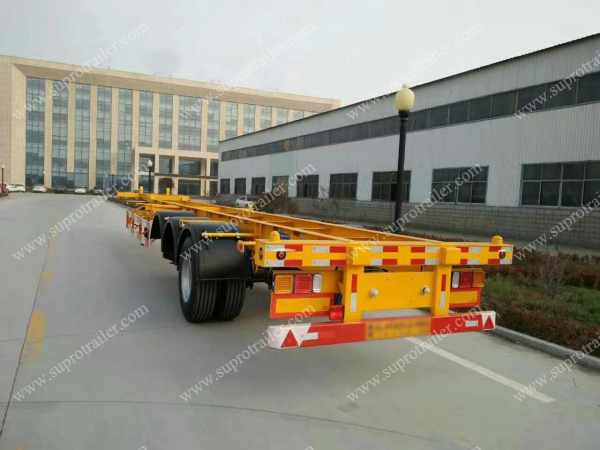

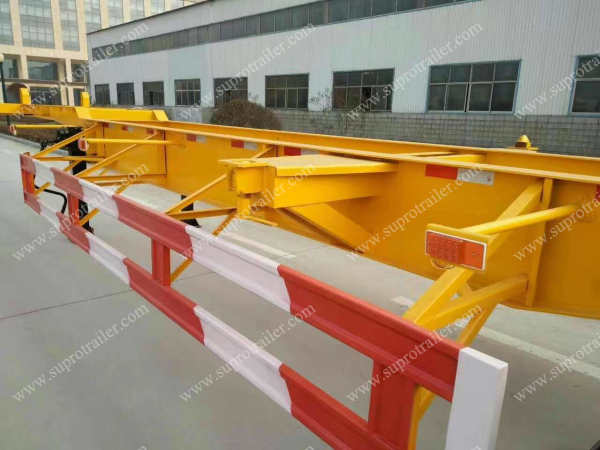

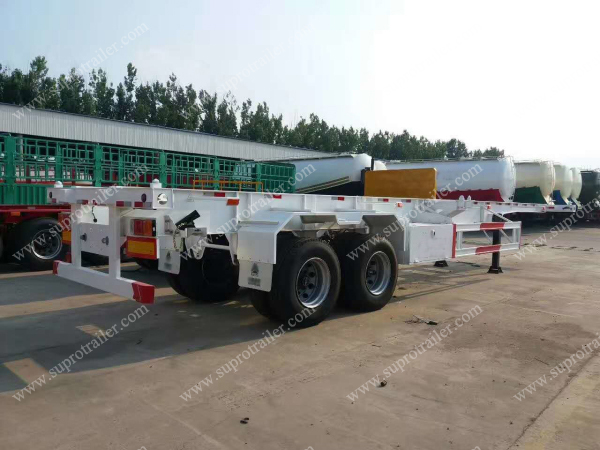

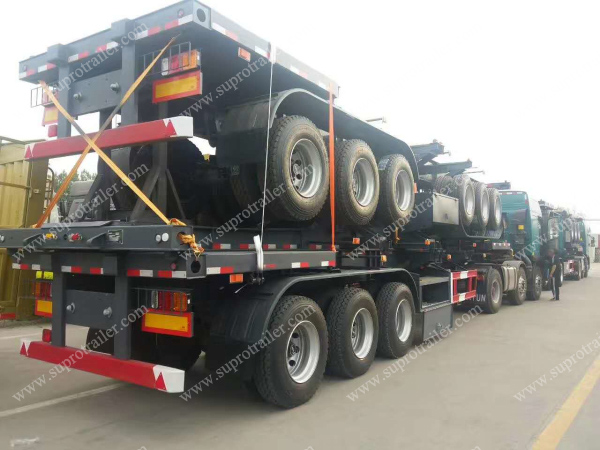

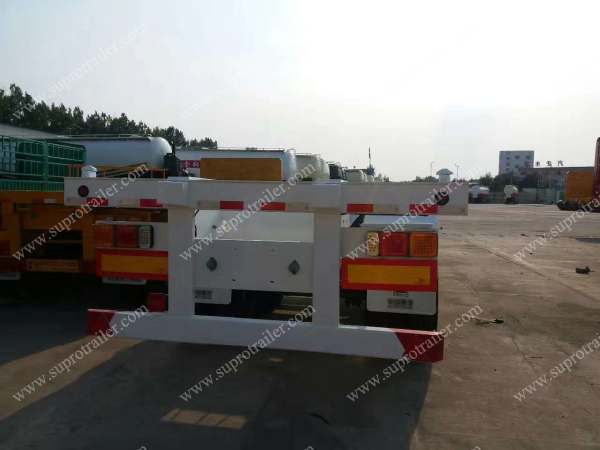

Skeleton Container Trailer

The skeleton container trailer has 20ft single axle container trailer, 20ft double axle container trailer, 40ft double axle container trailer and 40ft three axles container trailer.

skeleton container trailer

container trailer factory

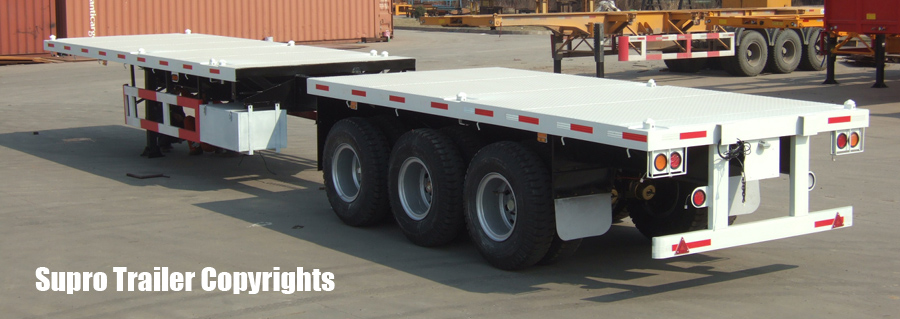

Extendable Container Trailer

The extendable container trailer could extend the length from 40 feet to 45 feet to meet different size containers. Also, Supro Trailer produce other "Extendable trailers" for various cargo. The max. length of the trailer could reach 50m length.

Extendable container trailer

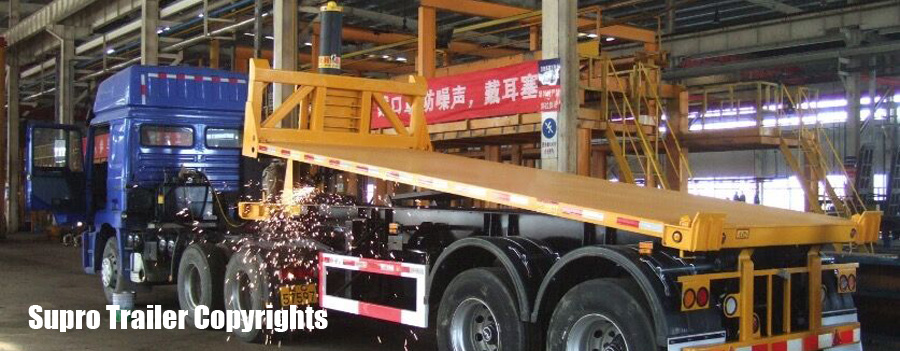

Tipper container trailer

Supro Trailer could produce Rear tipper container trailer, and Dump tipper container trailer.

tipper container trailer

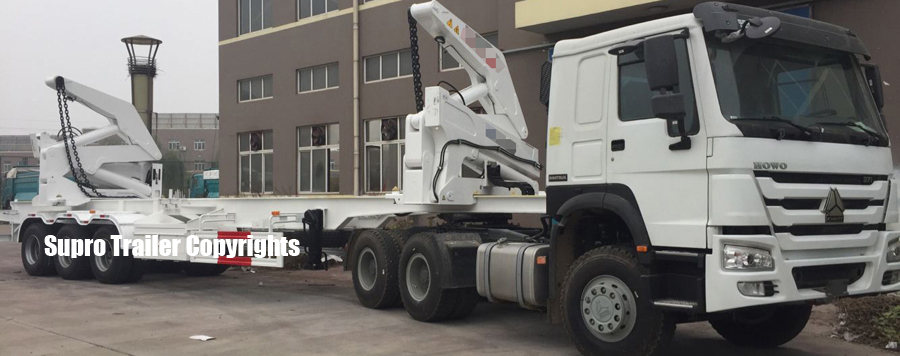

Side Loader Container Trailer

side loader container trailer


Supro Trailer workshops of the Flatbed Semi Trailer

Supro Trailer has a modernzing factory workshpes and automatic production line of the semi trailers. We have Robot arm welding, Automatic sanding and painting, 3D loading test laboratory etc. So that Supro Trailer provide high stardard quality semi trailers to the globe market!


Supro Trailer Workshops Video



Robot Arm Welding

flatbed trailer welding

Container Trailer Specification Sheet

container trailer factory


Type:

20ft/40ft Container Trailer

Delivery time:

30 days against advanced payment

Payment term:

T/T, 30% deposit, 70% before delivery.

Specification:

Outside Dimensions (LxWxH)

7000*2500*1550 mm - 20ft container trailer

12500*2500*1560 mm - 40ft container trailer

King Pin

2.00’’ traction pin, bolts in type.

Suspension

Mechanical suspension, American design

Steel Spring

10pcs leaf spring

Landing Gear

28T, manual operation

Axle

Axle No./ weight/ brand

13T axles Fuwa



Tire&Wheel:

Tire specs

1200R22.5

Rim

8.25R22.5 rim

Twist locks

twist locks

Spare Tire Carriers

1 set





Frame: (specs. and materials)

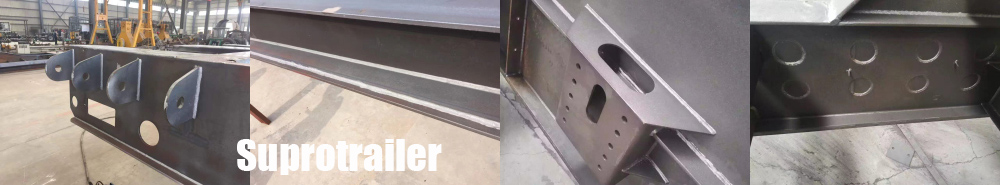

Main beam

Heavy duty and extra durability designed; Opting for high tensile steel Q345B, welding by automatic Submerged-Arc processes.

500mm Height "I" beam, Top Flange 12mm; Middle Flange 6mm; Bottom Flange 14mm.

Brake:

Brake system

Two double and two single brake chamber

Electrical:

Electrical:

Voltage: Chinese Standard 24V; Receptacle: 7 ways (7 wire harness); LED light



Painting

Color according to the requirement of the buyer

Tools box

One piece, Length 1 m





Side Loader Container Trailer Specification Sheet

side loader container trailer


Item

Parameters

Product

3 axles 20ft and 40ft sidelifter container trailer

Function

Lifting 40ft container or 20ft container

Crane

Max. lifting capacity

37000kg

Crane brand

MQH37A

GVW

40000kg

Max. working range

4000mm

Max. stabilizer outreach

3200mm

Curb mass

14500kg

Mass of sidelifter

7250kg

Overall height

2500mm

Overall length

1020mm

Max.pressure of hydraulic system

28Mpa

Hydraulic System

Engine model

NO ENGINE

Engine Code Number

1J486-13000

Hydraulic Pump

Gear type Casappa Italy

Direction Control Valves

AMCA Holand

Electric control system

Remote Control

NBB Germany

Voltage

12v

Electrical socket

Receptacle: 7 ways (7 wire harness)

Braking system

Dual Line braking system

Trailer Chassis

Outline dimension of semi-trailer(L×W×H)

14100×2500×4000mm

Outline dimension of sidelifter(L×W×H)

1020×2500×2490mm

Front overhang / Rear overhang

-/2370mm

Approach angle/Departure angle

-/13°

Axle Brand

FUWA 3*13Ton Axle

Axle Number

Three

Container twist locker

4 Screw type

King pin

2 inch ISO size
