Side Loader Container Trailer for Zambia
Author:Supro Trailer

Supro Container Trailer

Supro Trailer produce high quality standard normal 20 feet container trailer and 40 feet container trailer with competitive price. And also, Supro Trailer produce special container trailers such as Extendable container trailer ( from 40ft to 50ft ), Side loading container trailer, Dump container trailer etc. We welcome custom on container trailers.

Side Loading Container Trailer

Supro Trailer cooperate with XCMG, Zoomline and Sany company to custom the cranes from them, and the lifting ability of the crane is able to reach 40 tons cargo! Supro Trailer use remote controller to operate the crane. And also Supro equip Japanese brand engine for the side loading container trailer.

Specificatioins of the Supro side loading container trailer

Item

Parameters

Product

3 axles 20ft and 40ft sidelifter container trailer

Function

Lifting 40ft container or 20ft container

Crane

Max. lifting capacity

37000kg

Crane brand

MQH37A

GVW

40000kg

Max. working range

4000mm

Max. stabilizer outreach

3200mm

Curb mass

14500kg

Mass of sidelifter

7250kg

Overall height

2500mm

Overall length

1020mm

Max.pressure of hydraulic system

28Mpa

Hydraulic System

Engine model

NO ENGINE

Engine Code Number

1J486-13000

Hydraulic Pump

Gear type Casappa Italy

Direction Control Valves

AMCA Holand

Electric control system

Remote Control

NBB Germany

Voltage

12v

Electrical socket

Receptacle: 7 ways (7 wire harness)

Braking system

Dual Line braking system

Trailer Chassis

Outline dimension of semi-trailer(L×W×H)

14100×2500×4000mm

Outline dimension of sidelifter(L×W×H)

1020×2500×2490mm

Front overhang / Rear overhang

-/2370mm

Approach angle/Departure angle

-/13°

Axle Brand

FUWA 3*13Ton Axle

Axle Number

Three

Container twist locker

4 Screw type

King pin

2 inch ISO size

Suspension system

Leaf spring suspension

Tow chain

IGUS (imported)

Tire Type and quantity

12R22.5  12pcs

Landing gear

28T

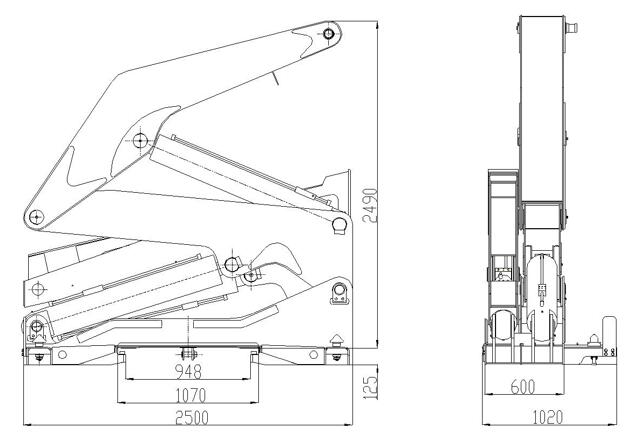

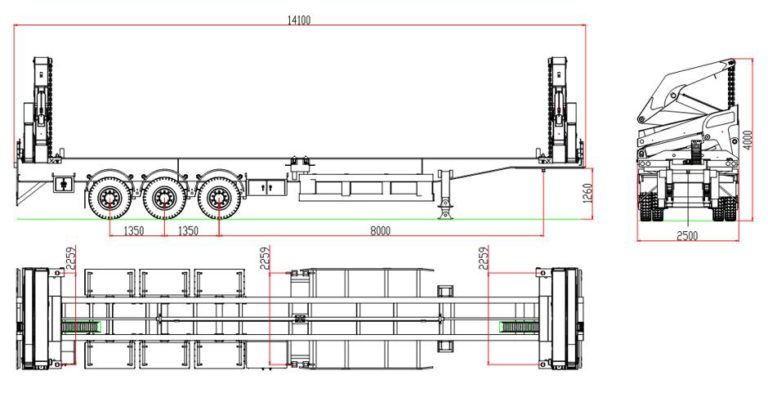

drawing of the side loader container trailer

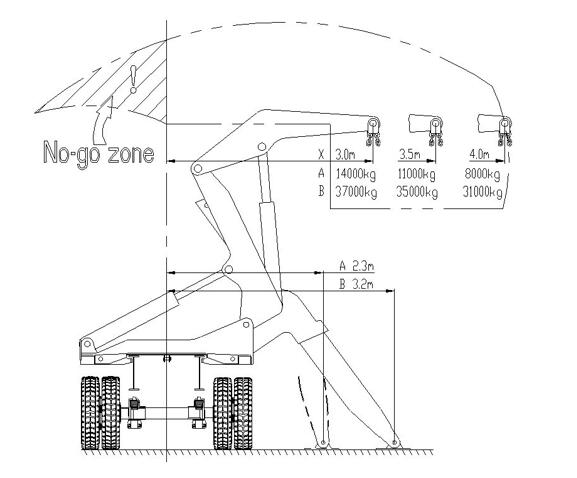

drawing of the side loading container trailer

drawing of the side lifter container trailer

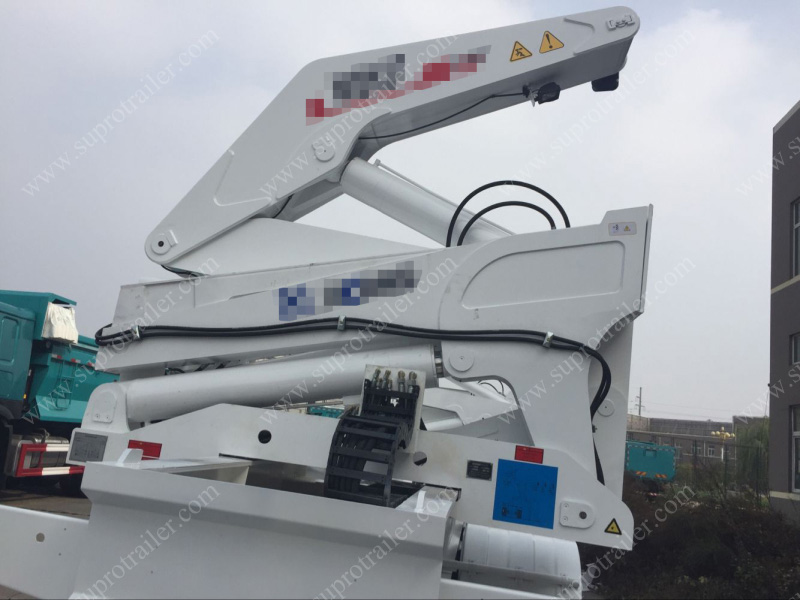

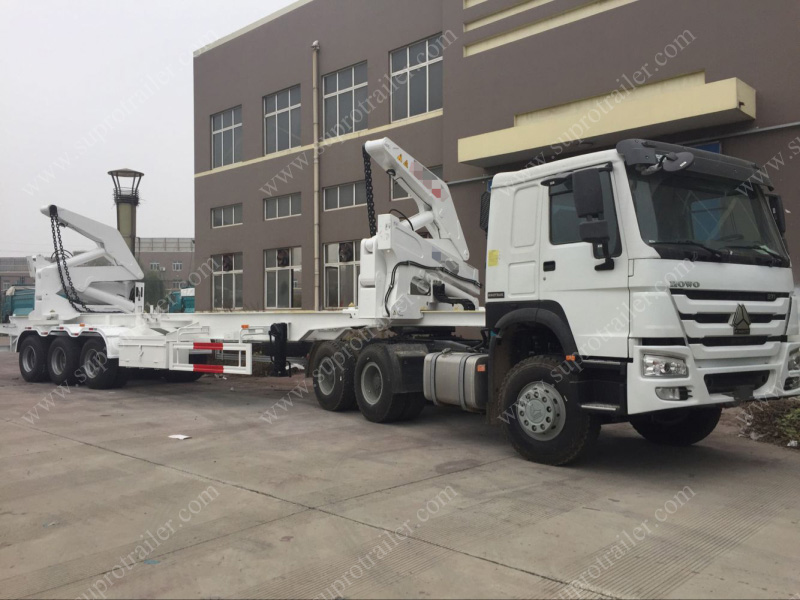

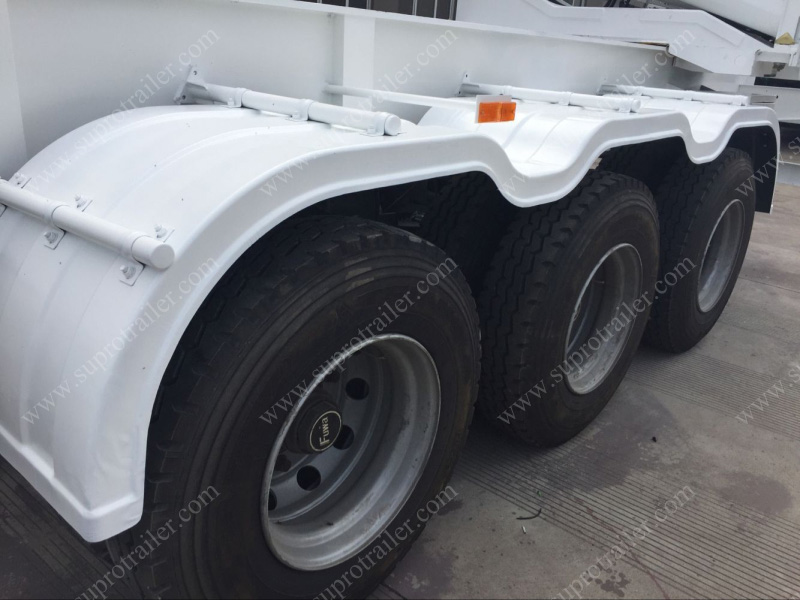

side loading container trailer

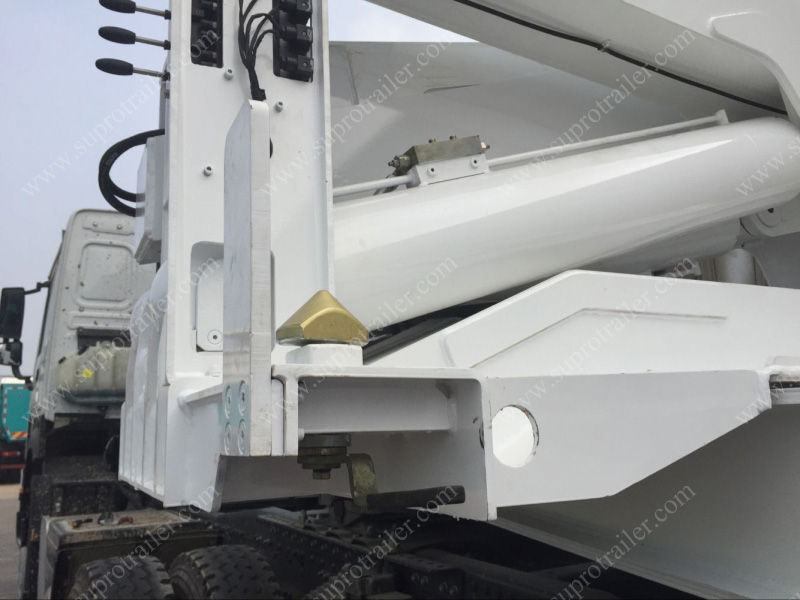

side loading container trailer

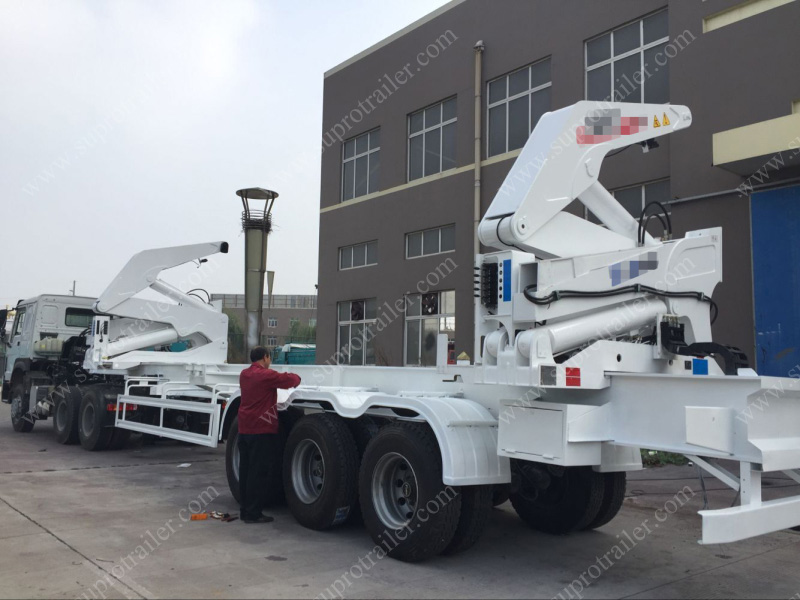

side loading container trailer

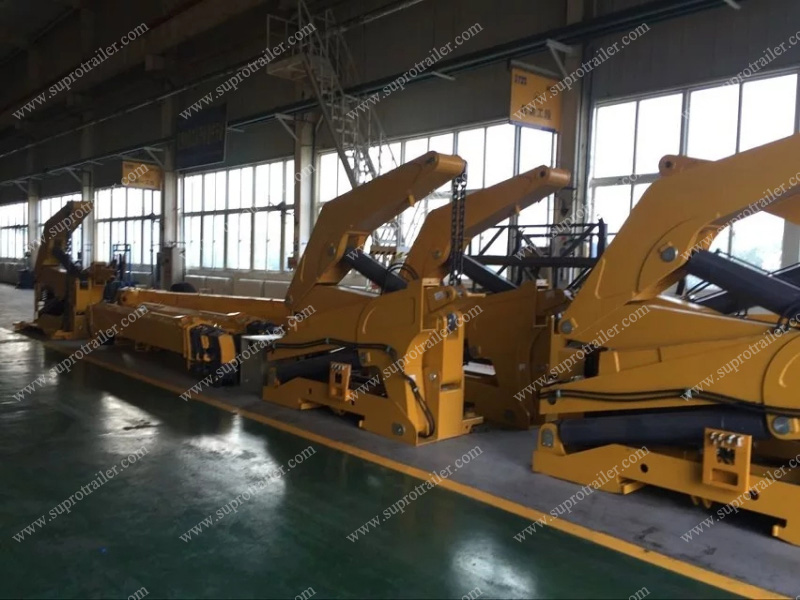

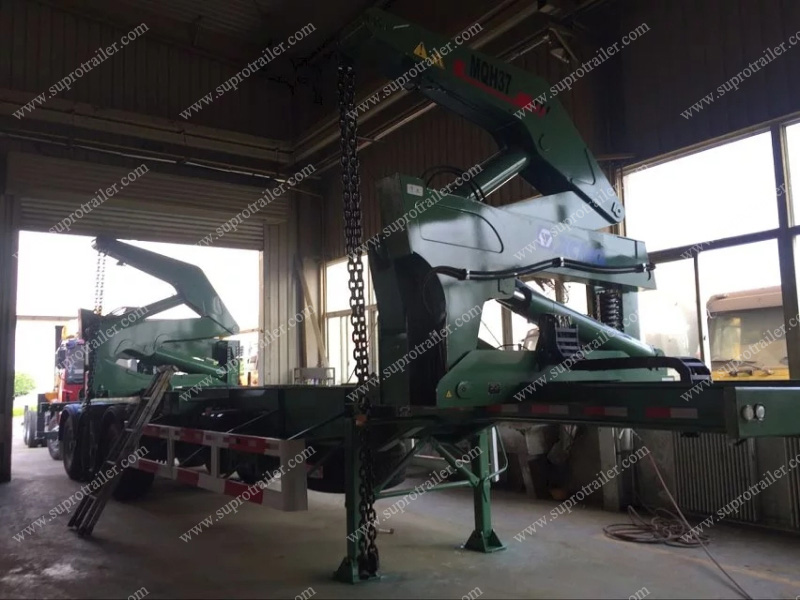

Side loader container trailer

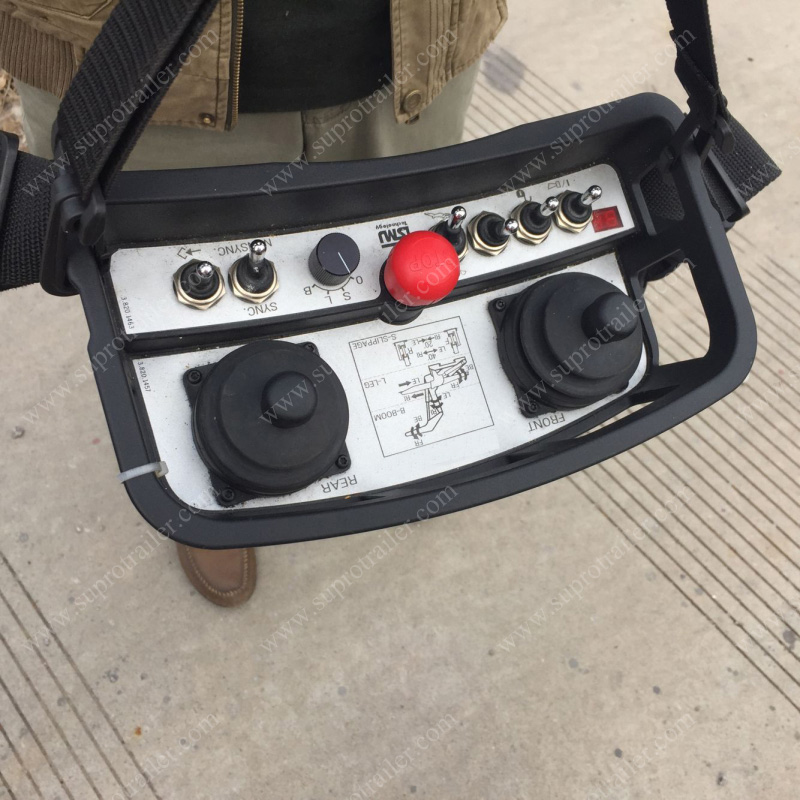

Remote controller of the side lifting container trailer

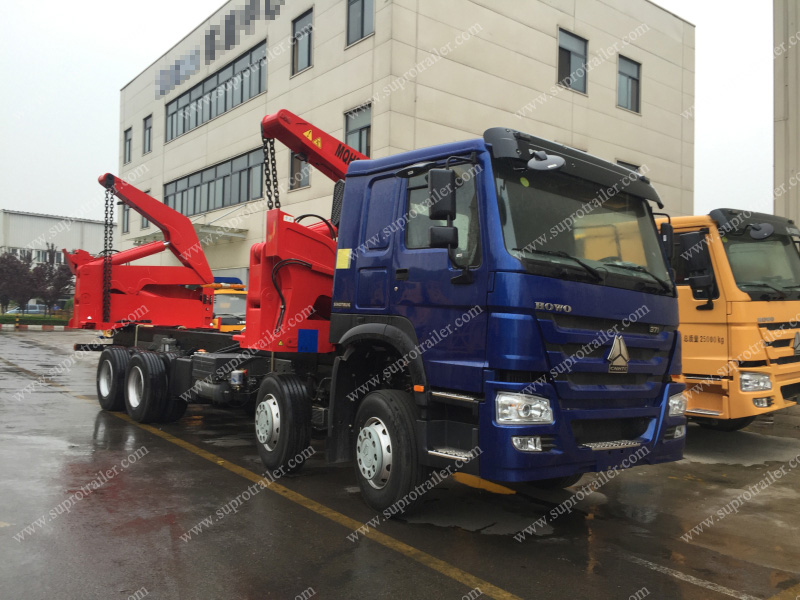

Side loader container trailer



Side loader container trailer

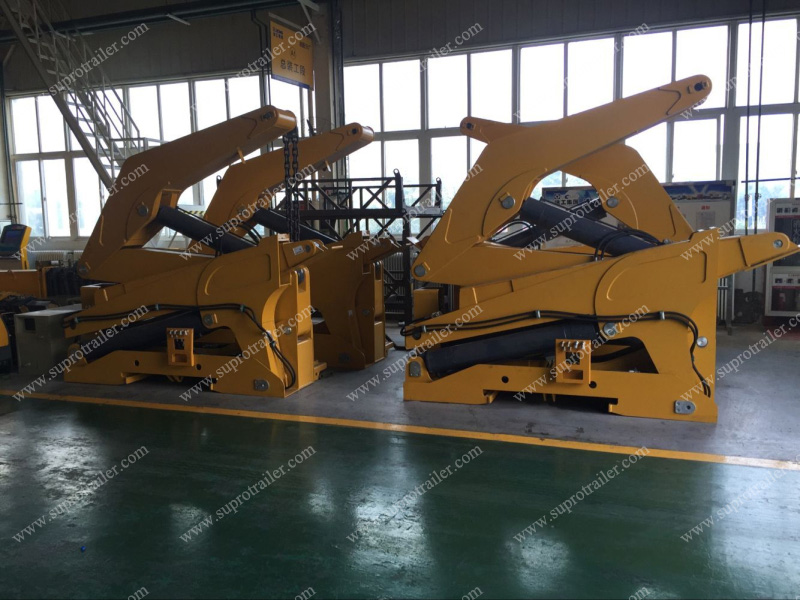

side lifter container trailer



Side loader container trailer



Side loader container trailer



Side loader container trailer
