1. Supro SPMT Introduction

▣Supro Trailer is a professional manufacturer of SPMT trailer, and we produce the Supro SPMT against on Goldhofer and Scheuerle technology. Supro Trailer has over 100 axle lines SPMT experience every single year so we have over 60% domestic market rate! Supro Trailer provides high cost peformance and stable quality performance SPMT trailer for overseas market! And we lead the SPMT technology in the wide world market!

Supro - Scheuerle SPMT Vedio▼

2. Specification of the Supro - Scheuerle SPMT

2.1 Width- 2430mm SPMT▼

1 Payload at 0.5 km/h--------------------------approx. 140,000 kg

2 Dead weight of transporters----------------approx. 20,000 kg

3 Gross weight of transporter-----------------approx. 160,000 kg

4 Axle Line-----------------------------------------4

5 Wheel bogies per axle line------------------2

6 Number of wheel bogies---------------------8

7 Wheel bogie load 0.5 km/h------------------approx. 8 x 20,000 kg

Wheel bogie load 1 km/h--------------------approx. 8 x 16,000 kg

8 Driving Wheel Bogies-------------------------2

9 Brake Wheel Bogies--------------------------4

10 Tires---------------------------------------------16x 355/65-R15

11 Max. Traction per bogie--------------------80kN

12 Gradient Ability fully loaded --------------5%

13 Max. speed fully loaded--------------------Approx. 0.5 km/h

14 Max. speed unloaded-----------------------approx. 5 km/h

15 Platform height lowest----------------------1.140mm

16 Platform height in driving condition------1.490 mm

17 Axle load compensation--------------------± 350mm

18 Wheel bogie distance-----------------------1,400 mm

19 Wheel bogie track----------------------------1,450 mm

20 Platform width---------------------------------2,430 mm

21 Platform length--------------------------------5,600 mm

2.2 Width - 3000mm SPMT▼

1 Payload at 0.5 km/h--------------------------approx. 213,000 kg

Payload at 1 km/h----------------------------approx. 189,000 kg

2 Dead weight of transporters---------------approx. 27,000 kg

3 Gross weight of transporter----------------approx. 240,000 kg

4 Axle Line----------------------------------------6

5 Wheel bogies per axle line-----------------2

6 Number of wheel bogies--------------------12

7 Wheel bogie load 0.5 km/h-----------------approx. 12 x 20,000 kg

Wheel bogie load 1 km/h-----------------approx. 12 x 18,000 kg

8 Driving Wheel Bogies------------------------4

9 Brake Wheel Bogies--------------------------8

10 Tires---------------------------------------------48x 215/75-R17.5

11 Max. Traction per bogie--------------------80kN

12 Gradient Ability fully loaded --------------9%

13 Max. speed fully loaded--------------------Approx. 0.5 km/h

14 Max. speed unloaded-----------------------approx. 5 km/h

15 Platform height lowest----------------------1.150mm

16 Platform height in driving condition------1.450 mm

17 Axle load compensation--------------------± 300mm

18 Wheel bogie distance-----------------------1,500 mm

19 Wheel bogie track----------------------------1,800 mm

20 Platform width---------------------------------3,000 mm

21 Platform length--------------------------------9,000 mm

3. Photos of the Supro - Scheuerle SPMT

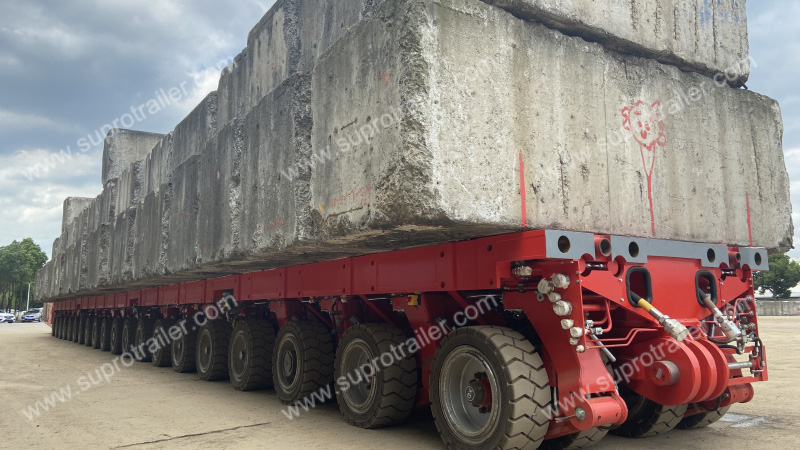

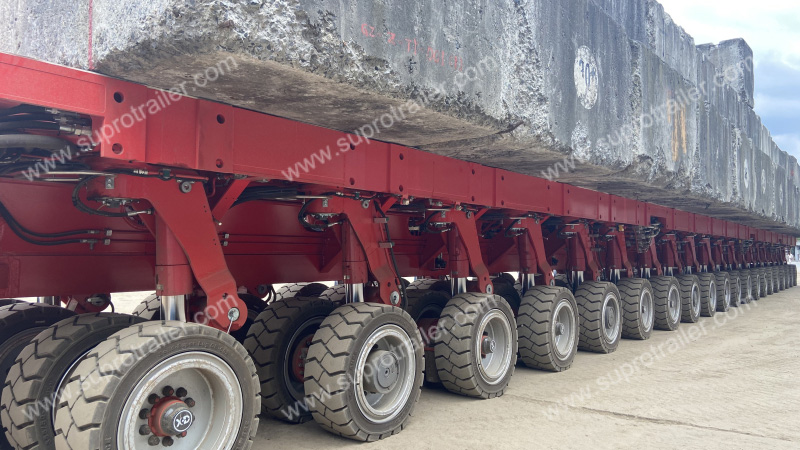

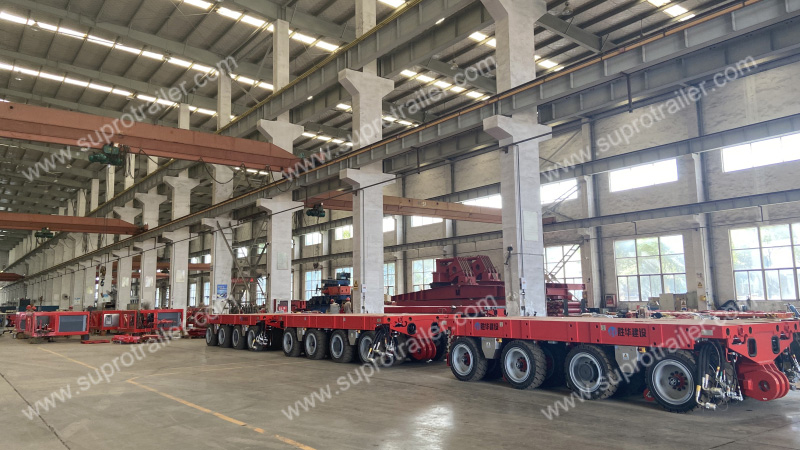

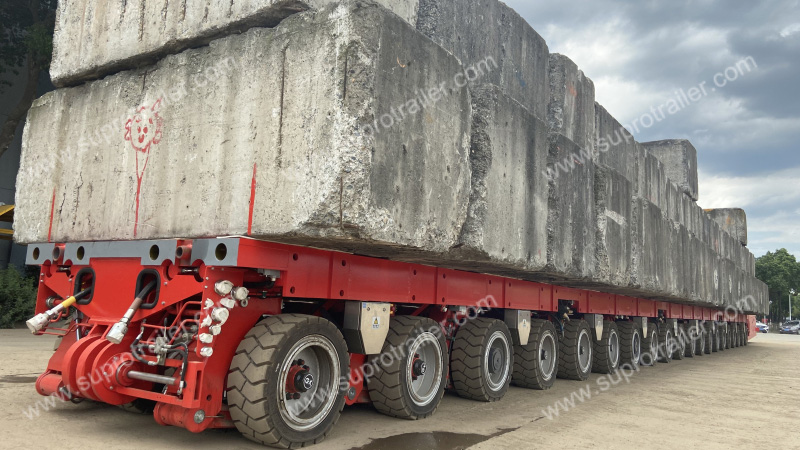

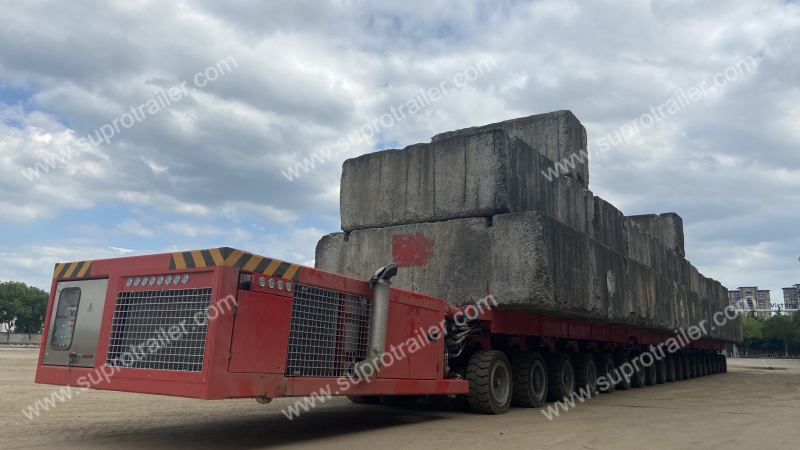

3.1. Overview of the Supro SPMT ▼

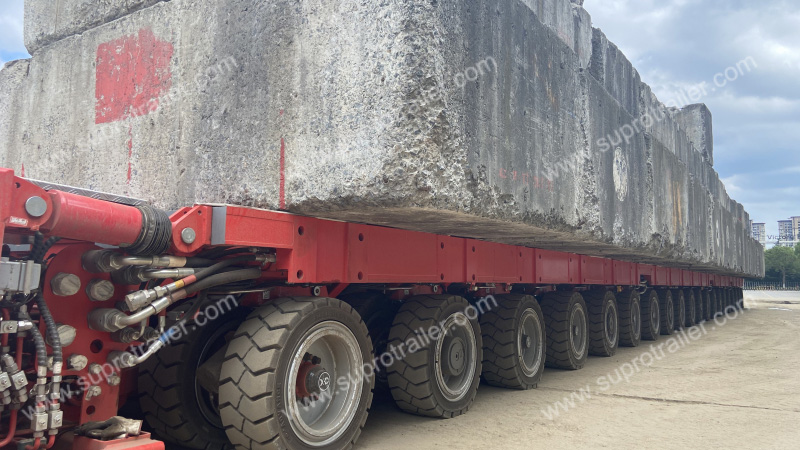

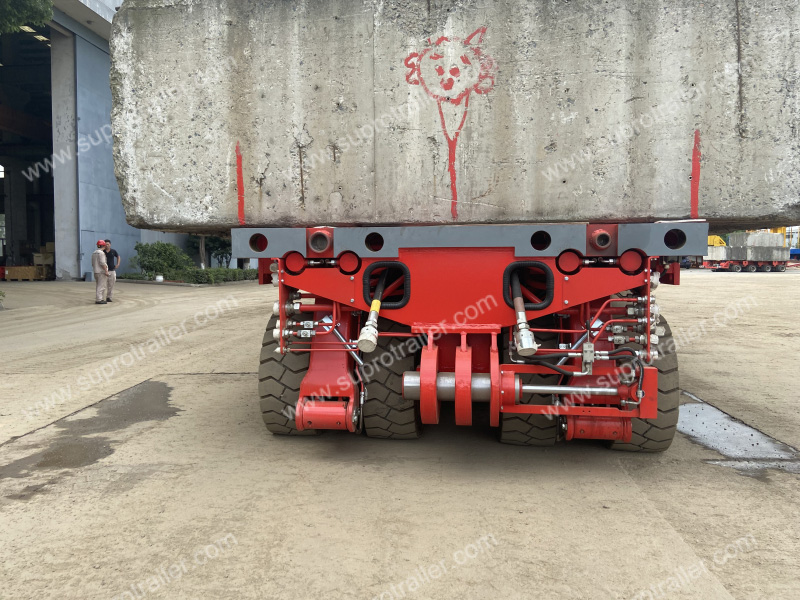

Rear view of the Supro - Scheuerle SPMT▼

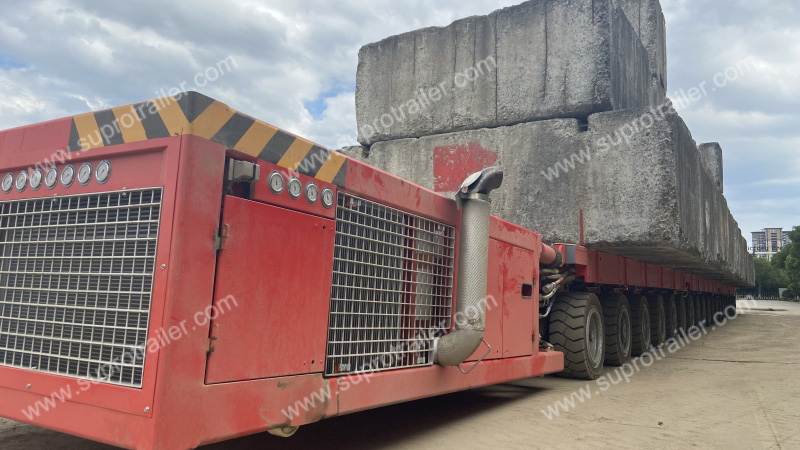

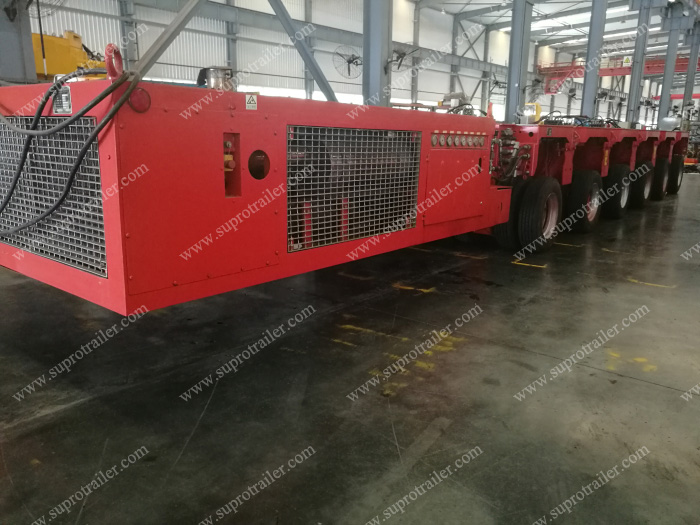

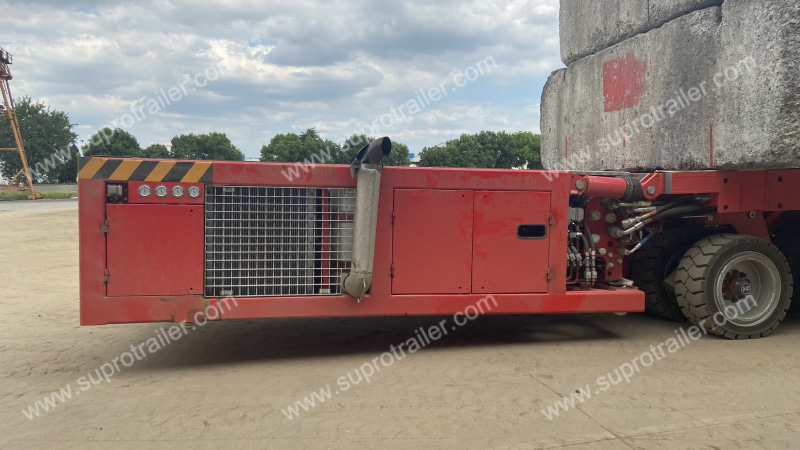

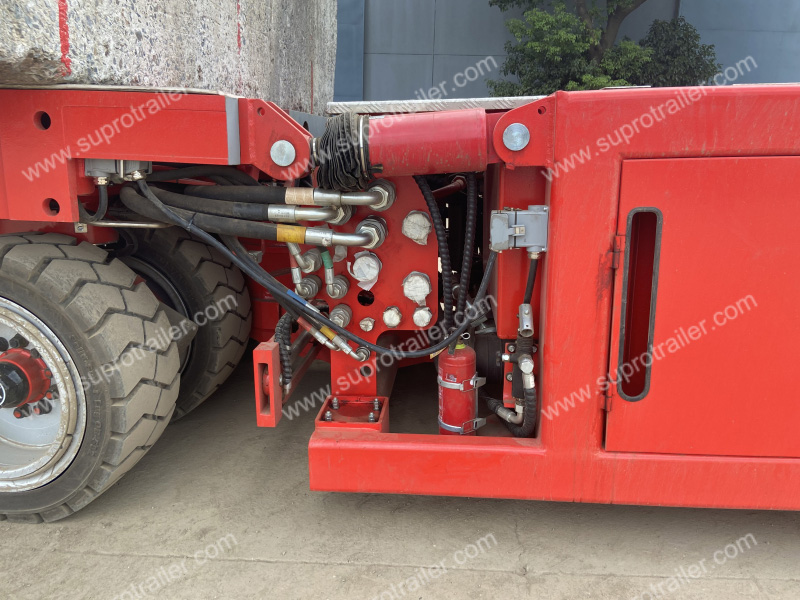

3.2 Supro - Scheuerle SPMT Power pack ▼

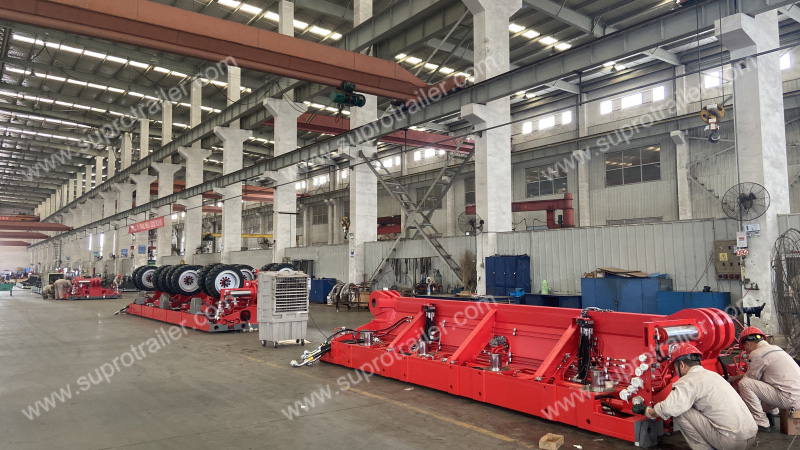

3.3 Manufacturing of Supro - Scheuerle SPMT▼

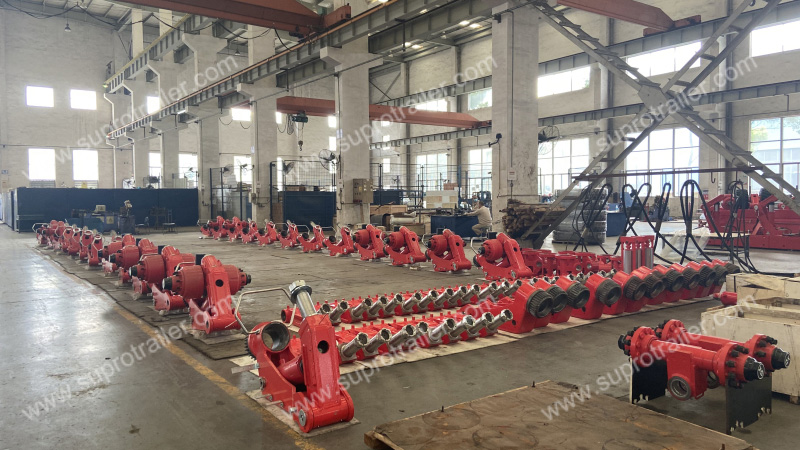

3.4 Axles of Supro - Scheuerle SPMT Trailer▼

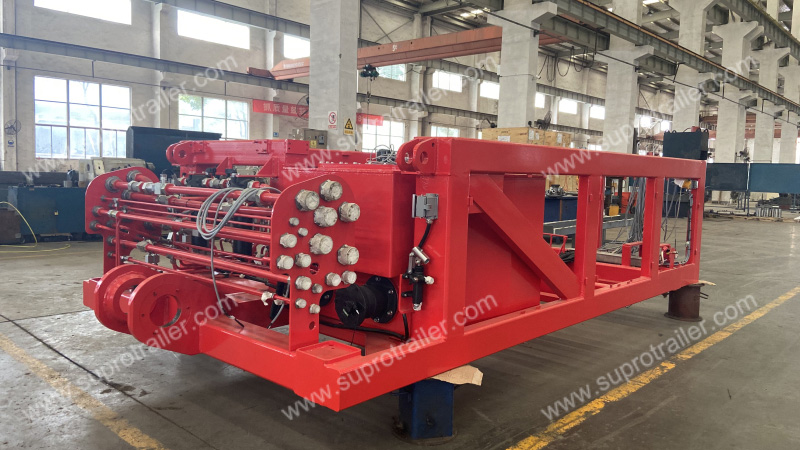

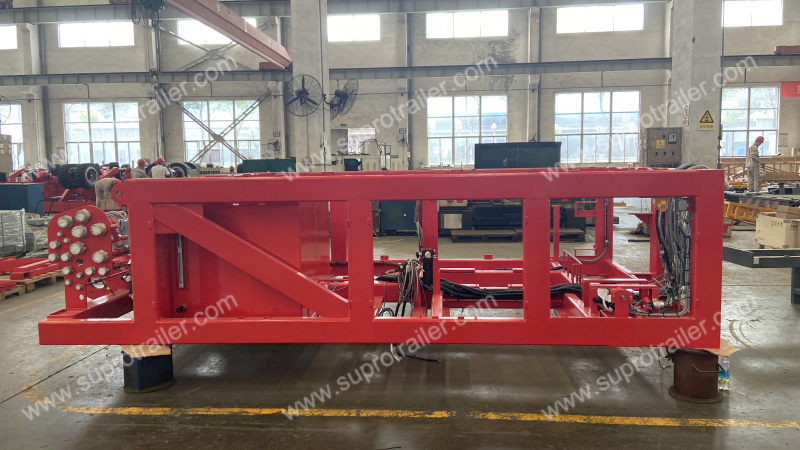

3.5 Assembly of Supro - Scheuerle SPMT PPU▼

3.6 Not only the Scheuerle structure SPMT, but also we make the SPMT from the Goldhofer technology.▼

For more information of Supro SPMT, please visit our "Self propelled modular transporter" product information!
