(ST10AE) 10 Axles Air Supsension Extendable Low Bed Trailer

Author: Supro Trailer   Date: 2021.04.14

Air Suspension Multi axles low bed trailer- Not Only the height adjustable function, but also has automatic steering system and telescoping beam!

Now days, the delivery cargo be more biger and heavier, and also the country transport policies be more strict, it has limited loading capacity of each axle or tire. So the axles amouts of the low bed trailer should be increased. The multi axles low bed trailer should have steering system to make the small turning radius, and save the swear of the tire. Also the length of the trailer should be longer to meet the longer cargo transport demands.

If you are going to buy the multi axles low bed trailer from the European, the price is very expensive! And also the system of the European transporter is very advanced and complex, so the maintenance and repair is a big problem in future. It is not suitable for developing countries. But the local manufacturers has few experience on the multi axleslow bed trailer are not able to produce the stable quality of it.

Supro Trailer manufactures multi axles low bed trailer to solve the problems! And also we use air supsension of the multi axles low bed trailer, it not only has a good ability on transport balance, but also can jake up the height of the trailer.

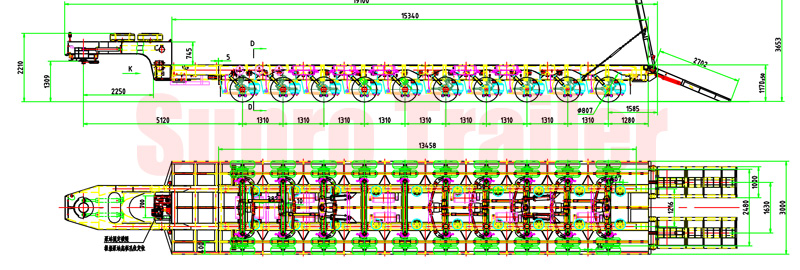

Drawing of the Multi axles (10 axles) low bed trailer (closed length. The length and telescoping beam welcome any customization)

drawing of 10 multi axles low bed trailer

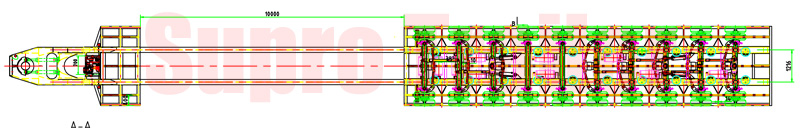

Telescoping beam of the 10 axles low bed trailer

technology drawing of multi axles low bed trailer

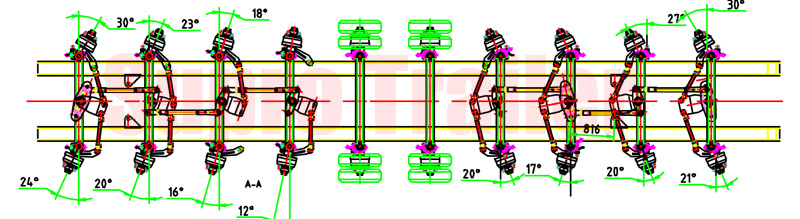

Steering system of the multi axles low bed trailer

steering system of the multi axles low bed trailer

Specifications of the multi axles ( 10 axles ) low bed trailer

1.1 Rated loading capacity ------------------------------------ 120 tons

1.2 Dimension (Length*Width*Height)-------------------- 19.1m*3m*2.2m

1.3 Loading platform dimension(L*W*H)------------------ 15.34m*3m*1.17m

1.4 Dead weight -------------------------------------------------- 25 tons

1.5 Height of gooseneck ---------------------------------------- 2040mm

1.6 Axle distance(mm) ------------------------------------------ 5125+1310*9

1.7 Main beam dimension:

Extendable structure. 550mm height, upper plate 20mm, down plate 20mm, middle plate 12mm, Q690 steel.

1.8 Tyre distance --------------------------------------------------2480mm

1.9 Rear suspension-----------------------------------------------1580mm

2.0 Tyre specification --------------------------------------------- 235/75R17.5

2.1 Rim specification ----------------------------------------------6.75/17.5

2.2 Suspension ------------------------------------------------------ Air suspension 350

2.3 Bearing ----------------------------------------------------------- C2000

2.4 Track pin --------------------------------------------------------- 90#

2.5 Power pack ------------------------------------------------------ 14KW

2.6 Rated working pressure -------------------------------------- 21.5Mpa

2.7 Diesel model ---------------------------------------------------- KM290F

2.8 Hydraulic pump -------------------------------------------------10MCY14-1B

2.9 Travelling speed ------------------------------------------------Empty 80KM/h, Full loading 50km/h

3.0 Travelling ground clearence ----------------------------------120mm above

Main Components of the Multi axles ( 10 axles) low bed trailer

Axle -------------------------Chinese 11 tons steering axle, and 13 tons fixed axle

Tyre -------------------------Triangle Tyre or other Chinese famous brand Tyre

Rim --------------------------Zhengxing

Track pin --------------------Jost

Suspension -----------------Ruide Shida MS13A0

Power pack ----------------- Kaima

Hydraulic suspension ----- Weili

Multi way valves------------ Qiangtian DC4

Braking pump --------------- Ruili 30/30

Hose pipes-------------------- Manuli

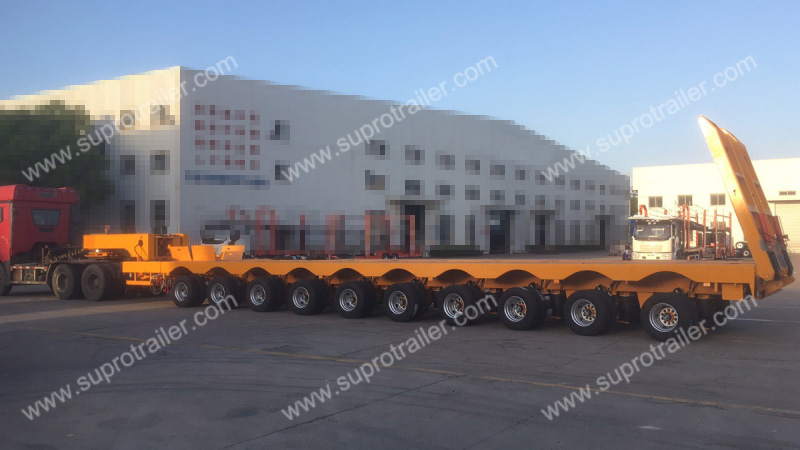

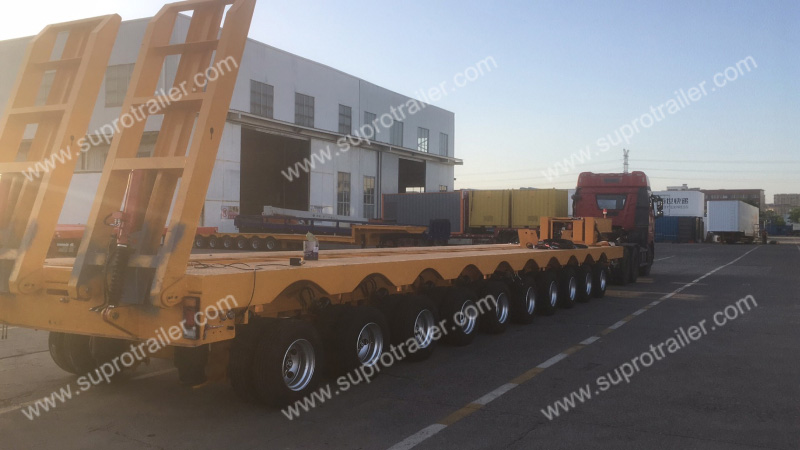

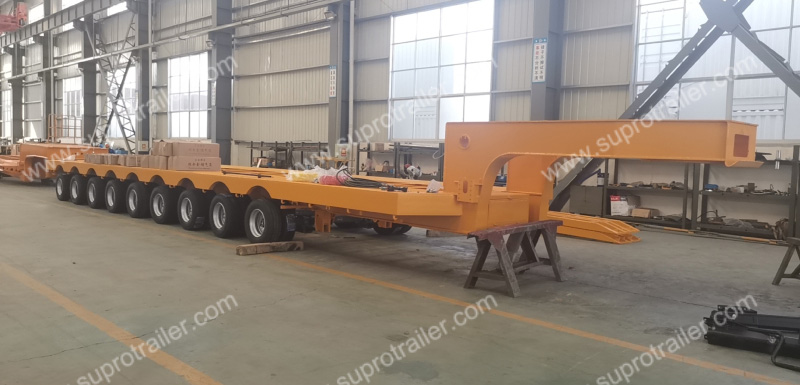

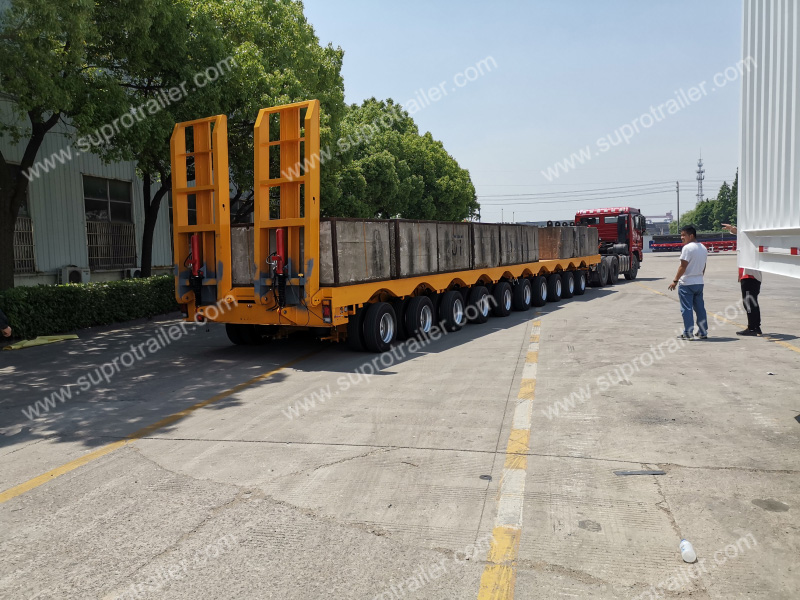

Photos of the Multi axles ( 10 axles) low bed trailer

10 axles multi axles low bed trailer

10 axles multi axles low bed trailer

10 axles multi axles low bed trailer

10 axles multi axles low bed trailer

Video of the 10 Axles Mutli axles low bed trailer
