Mechanical Suspension Multi Axles Low Bed Trailer

Author: Supro Trailer   Date: 2021.04.15

Multi axles ( 10 axles) mechanical suspension low bed trailer - Automatic steering and also has telescoping beam!

Now days, the delivery cargo be more biger and heavier, and also the country transport policies be more strict, it has limited loading capacity of each axle or tire. So the axles amouts of the low bed trailer should be increased. The multi axles low bed trailer should have steering system to make the small turning radius, and save the swear of the tire. Also the length of the trailer should be longer to meet the longer cargo transport demands.

If you are going to buy the multi axles low bed trailer from the European, the price is very expensive! And also the system of the European transporter is very advanced and complex, so the maintenance and repair is a big problem in future. It is not suitable for developing countries. But the local manufacturers has few experience on the multi axleslow bed trailer are not able to produce the stable quality of it.

Video of 9 Axles Mechanical Suspension Low bed trailer

Video of 10 Axles Mechanical Suspension Low bed trailer

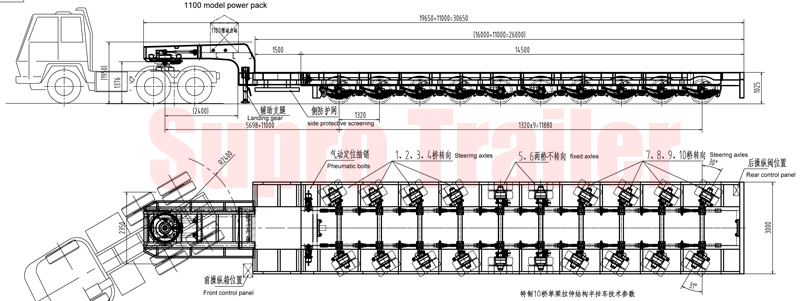

Drawing of the ST10SA multi axles low bed trailer

technical drawing of multi axles low bed trailer

Specifications of the multi axles low bed trailer

1.1 Dimension -----------------------------------------19650*3000*1950(gooseneck)/1010 cargo platform.

1.2 Totally weight -------------------------------------105800kg(just be refer)

1.3 Dead weight ---------------------------------------25800kg

1.4 Rated loading capacity --------------------------80000kg ( at closed length)

1.5 Axle distance ( at closed length) --------------5700+(11000)+1320*9mm

1.6 Wheel distance ------------------------------------2850mm

1.7 Axles --------------------------------------------------11 tons/ 2pcs, 11 tons steering axles/ 8pcs

1.8 Tyre ---------------------------------------------------235/75R17.5, 40pcs

1.9 Rim ----------------------------------------------------7.5*17.5,40pcs

1.10 Steering angle ------------------------------------30°

1.11 Min. ground clearence -------------------------150mm

1.12 Braking chamber ---------------------------------T25 double chambers, 20pcs

1.13 Emergency relay valve --------------------------Webco, 3pcs

1.14 Kingpin-----------------------------------------------90#

1.15 Suspension ----------------------------------------- Spring suspension/ 20pcs

1.16 Steering Cylinder ------------------------------------90/50 -2pcs , 110-40-4pcs

1.17 Control panel ------------------------------------Front control panel and rear control panel( manual operation and remote control)

1.18 Hydraulic power pack ----------------------------- 1100 mode/1 set

1.19 Electric system --------------------------------------24V

2. Introduction of multi axles low bed trailer

2.1 The closed length of the trailer is 19.65m, width is 3m, height is 1010mm. The loading length is 16m, and has 11m telescoping beam.

2.2 It is hydraulic gooseneck, equip control mechanism of the steering axles.

2.3 Mechanical suspension.

2.4 The vehicle has 10 axles, and the 5th and 6th are fixed axle. The 1th, 2th, 3th, 4th, 7th, 8th, 9th, are steering axles. The tyre is 235/75R17.5. (The trailer has long telescoping beams, and different length of the pipes. So it may has issues of the steering non-synchronous. Please be well noted.)

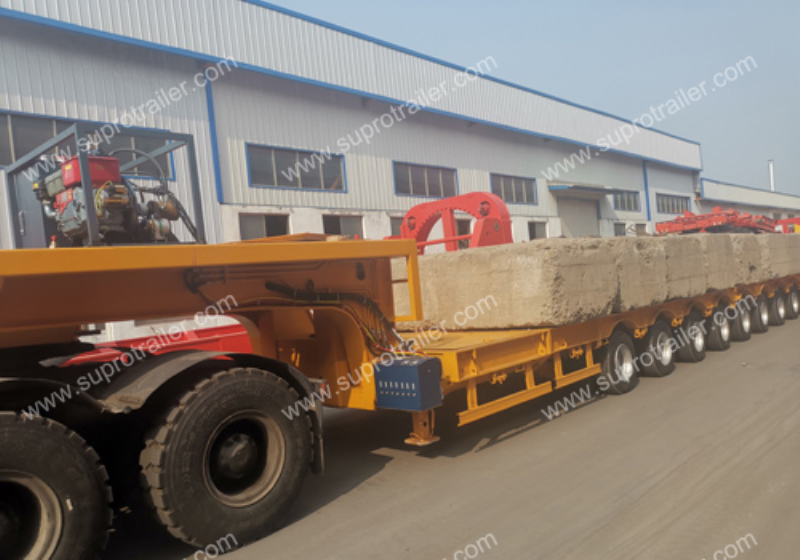

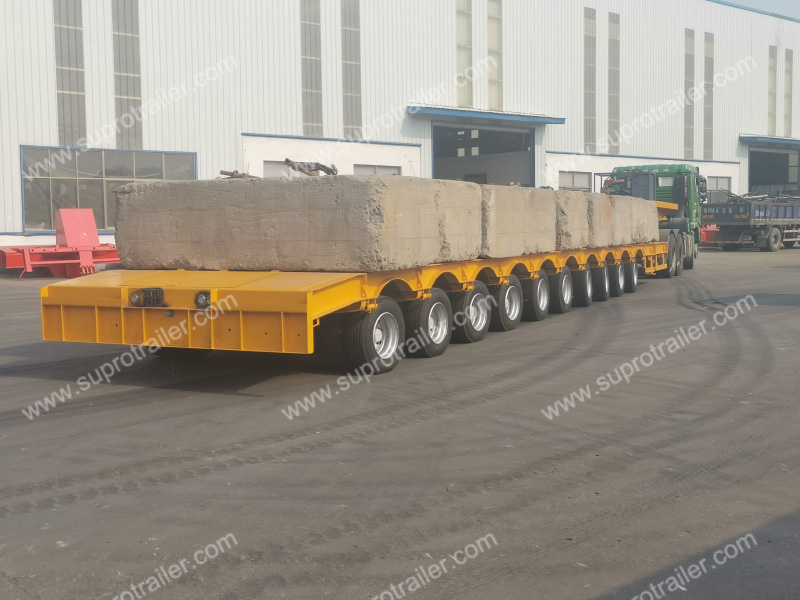

Photos of the 10 alxes mechanical suspension low bed trailer

10 axles low bed trailer

10 axles low bed trailer
