Learn about Supro Cusotmized Low Bed Trailer

Supro Trailer is a professional manufacturer of customized semi trailers and we customized the drop side low bed trailer with a drop side dolly trailer which can extendable the loading capacity of the trailer. And also we customize the low bed trailer be Extendable low bed trailer, Detachable gooseenck low bed trailer, Folding gooseneck low bed trailer etc. We welcome your inquiry of Supro low bed trailer.

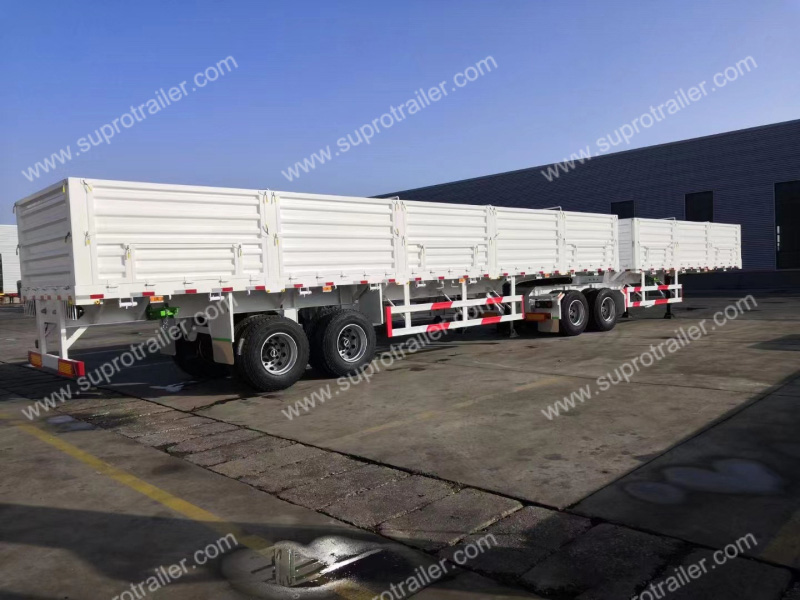

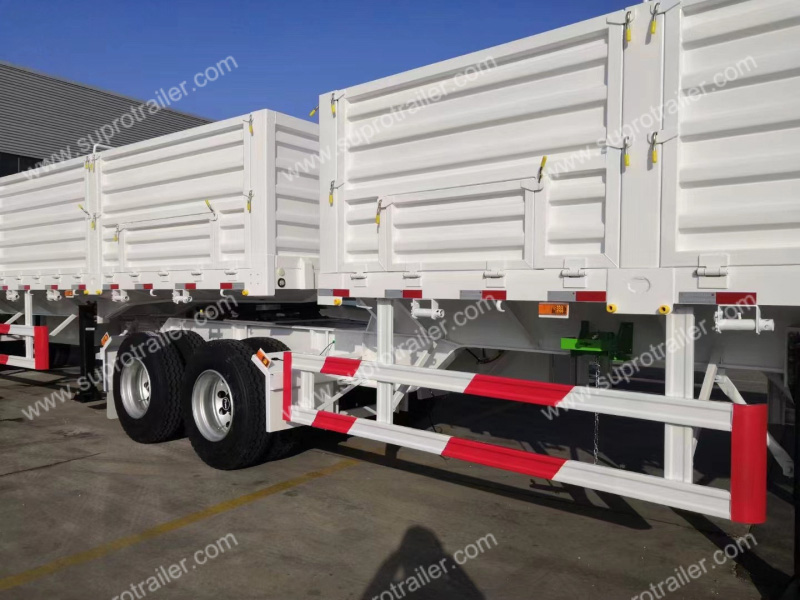

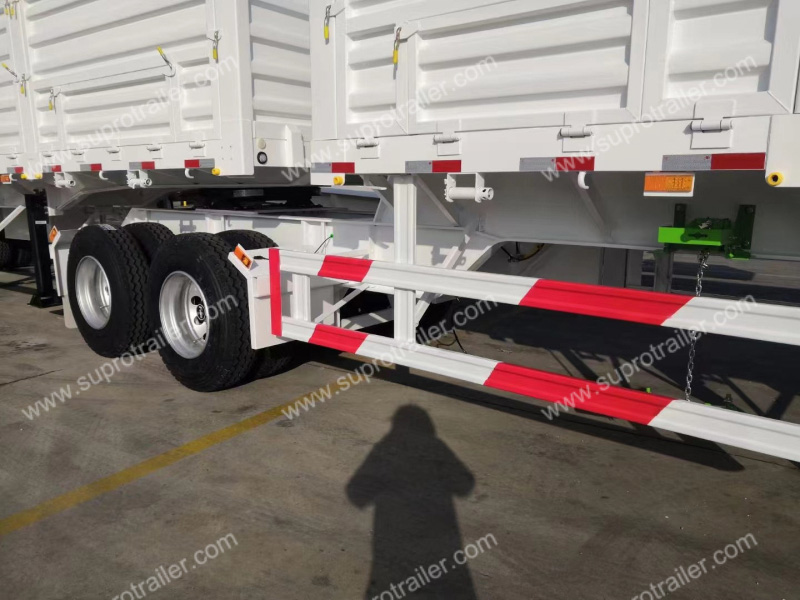

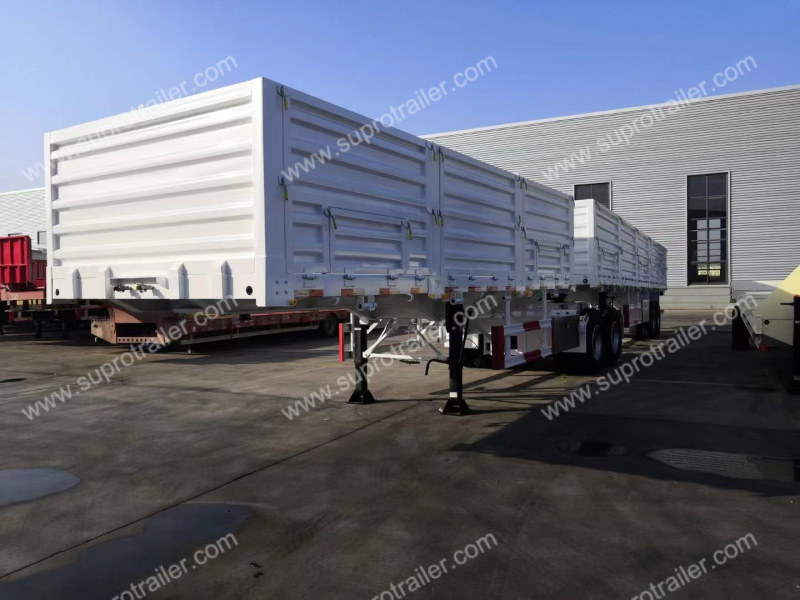

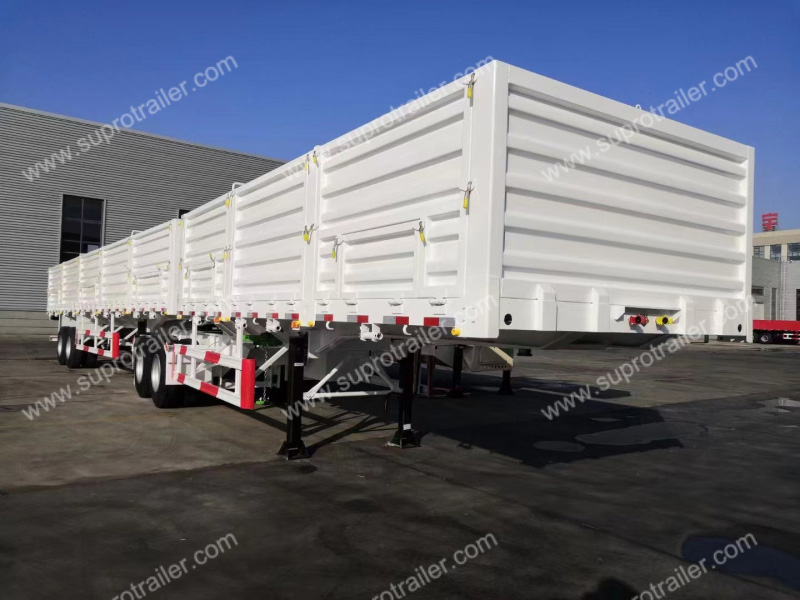

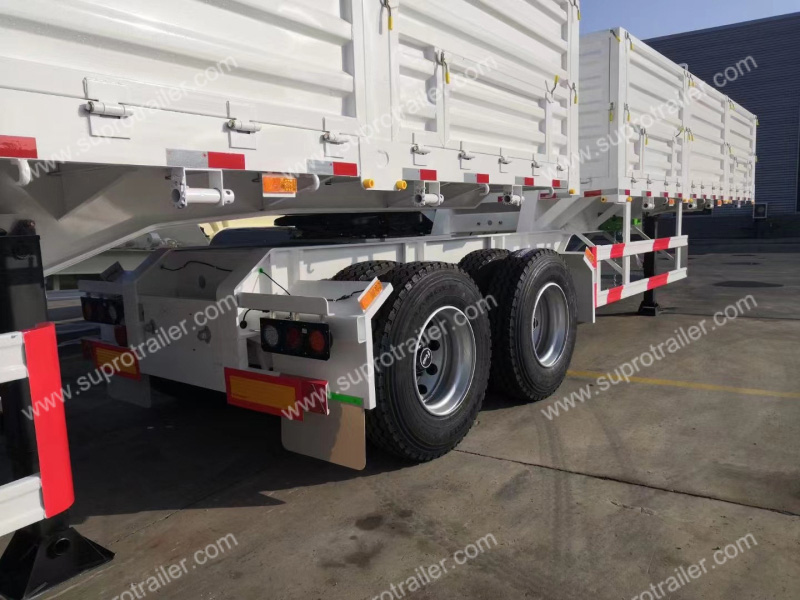

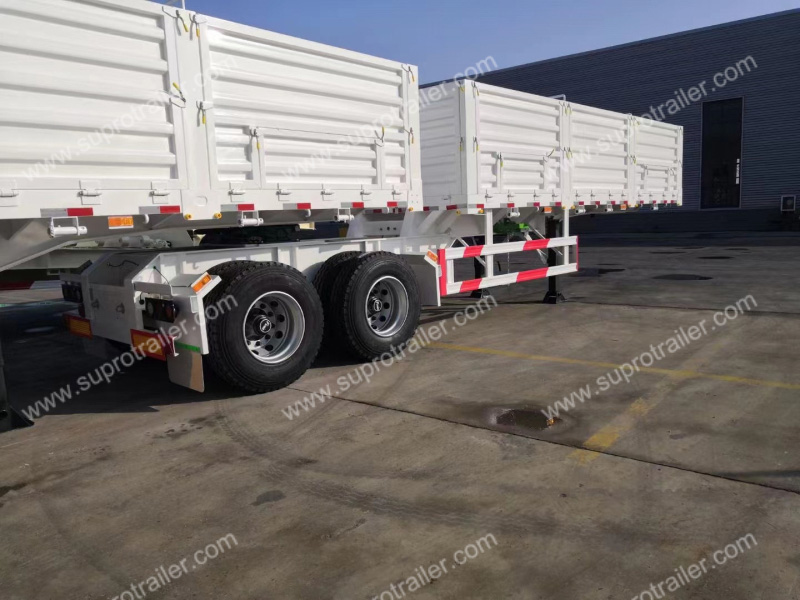

Configurations of Drop side low bed trailer with Drop side Dolly trailer

1. Structure: 2 axles Drop side low bed trailer and 2 axles Drop side dolly trailer

2. Dimension: 20m*3m*1.7m

3. Dead weight: 12 Tons

4. Loading capacity: 100 tons

5. King pin: 50# and 90# be option

6. Suspension: Mechanical suspension, American design

7. Steel spring: 10pcs leaf spring, 10mm thickness,90mm width

8. Height of the side wall: 600mm

9. Axle No./ weight/ brand: 2 axles + 2 axles *13T Chinese axle

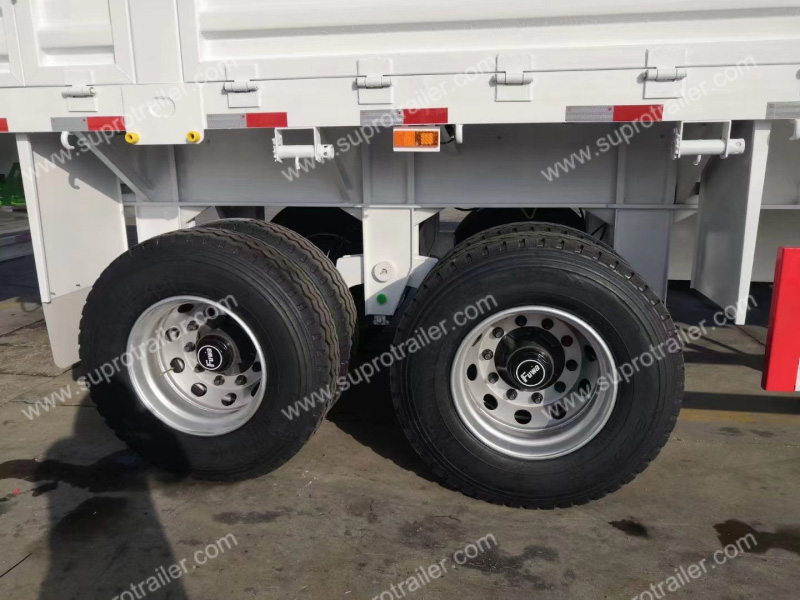

10. Tire specs: 10.00R22.5

11. Rim: 7.0R22.5

12. Number of Tire: 16pcs

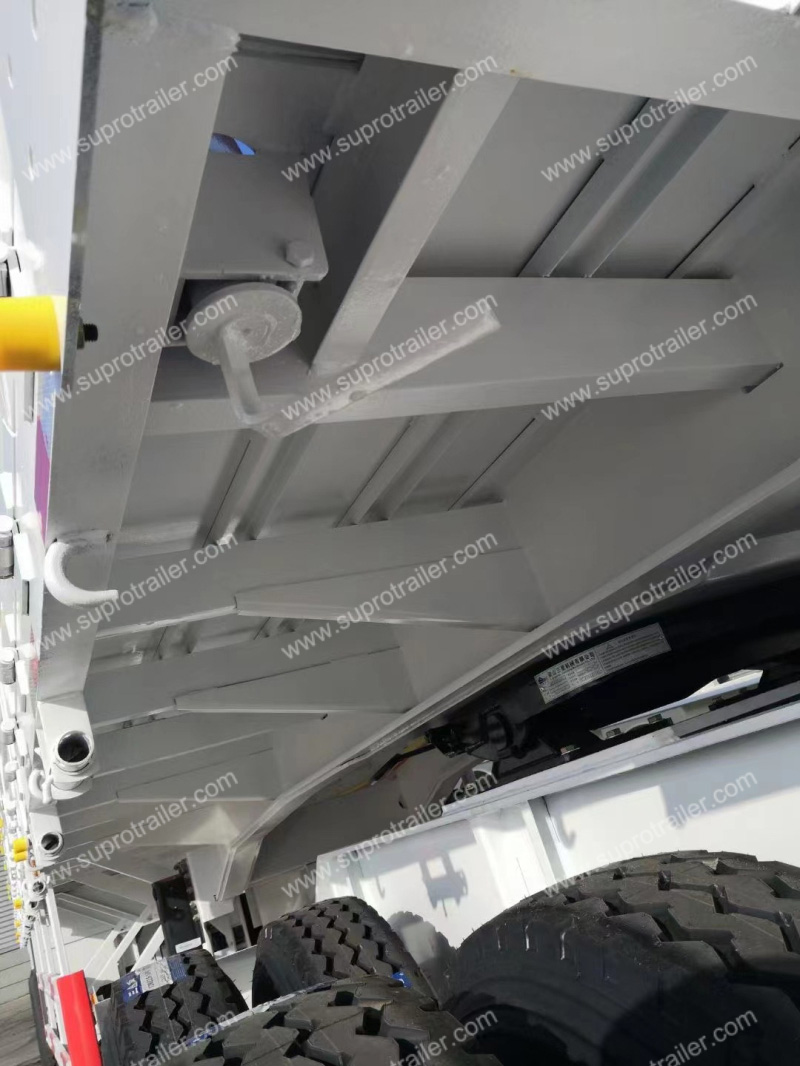

13. Main beam: Heavy duty and extra durability designed; Opting for high tensile steel Q550B, welding by automatic Submerged-Arc processes.

500mm Height "I" beam, Top Flange 18mm, width 200mm; Middle Flange 10mm; Bottom Flange 20mm, width 200mm.

14. Side beam: 30# “I” beam

15. Platform: 4 mm chequer plate

16. Landing Gear: JOST Standard 28ton
