Supro Girder Bridge Trailer

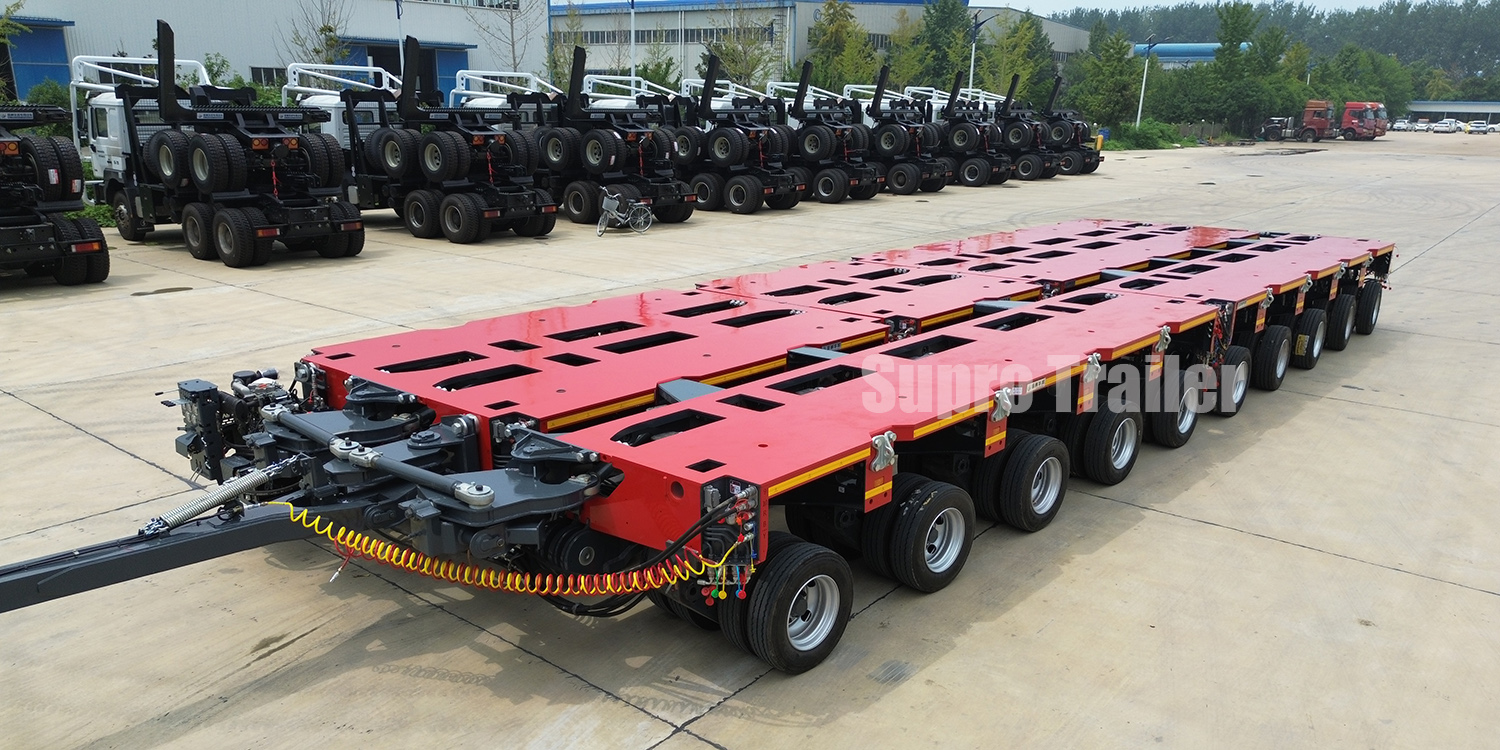

Supro Trailer Produce the Girder bridge for the small and heavy cargo transport, such as the Transformer. The Girder bridge combine with Hydrualic modular trailer ( we could make our Girder bridge to combine with Goldhofer, Nicolas and Scheuerle modular trailer).

Drawing of the Girder bridge

Before study the Supro Girder bridge, we suggest to start the reading from the overall of the Girder bridge.

The Girder bridge has main five sections.

1. The Front supporting cylinder and platform.

It has a supporting cylinder and an operation platform.

2. The middle loading beam and side beams.

The Girder bridge has a weight sharing beams on the modular trailer. Then after the weight sharing beam, it is side beams. And in the middle of the Girder bridge, it is loading beams which has hang beams.

3. Hang beams.

The hang beams load the cargo, and the positions are flexible.

4. Width adjustable cylinders

The width of the loading beams is adjustable by the middle cylinders.

5. Rear supporting cylinder and steering cylinders.

The rear part of the Girder bridge is a big cylinder to lift the Girder bridge, and also it has fours steering cylinders to help the steering.

Drawing of the Supro Girder bridge

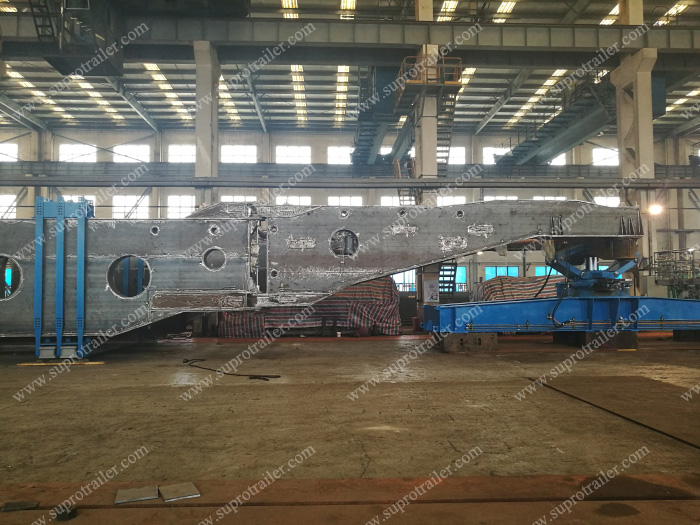

Overall View of the Supro Girder Bridge

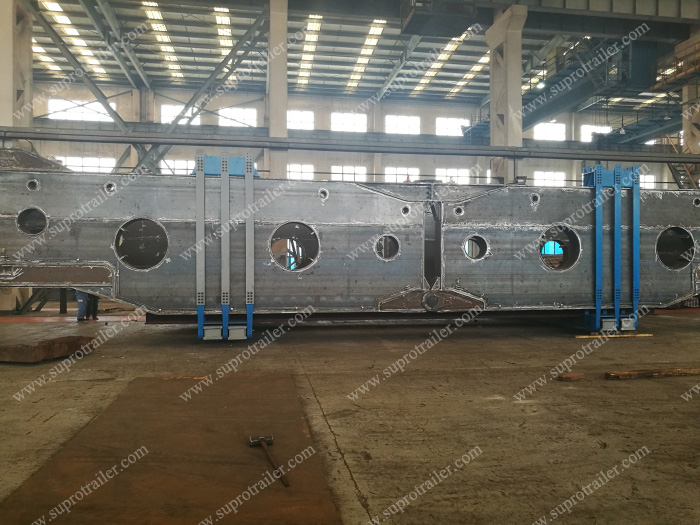

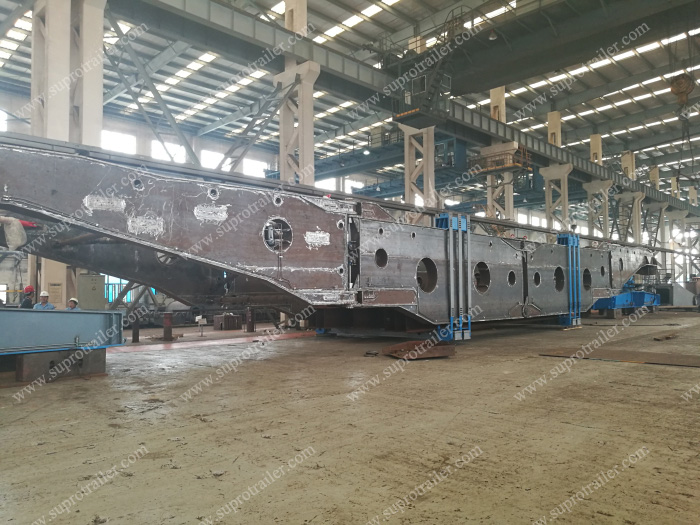

The middle beams of the Girder bridge has two sections. One is side beam, and another one is loading beam. The loading beam has hang beams among of it. The hang beams are loading the cargo.

The loading beams has 2pcs, and it combined with high strength bolts.

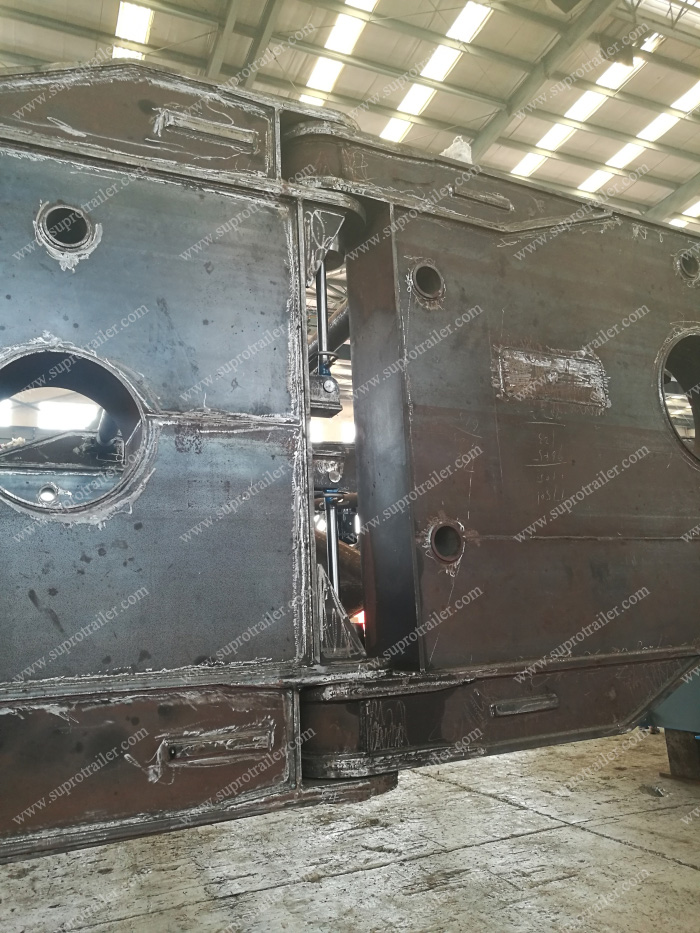

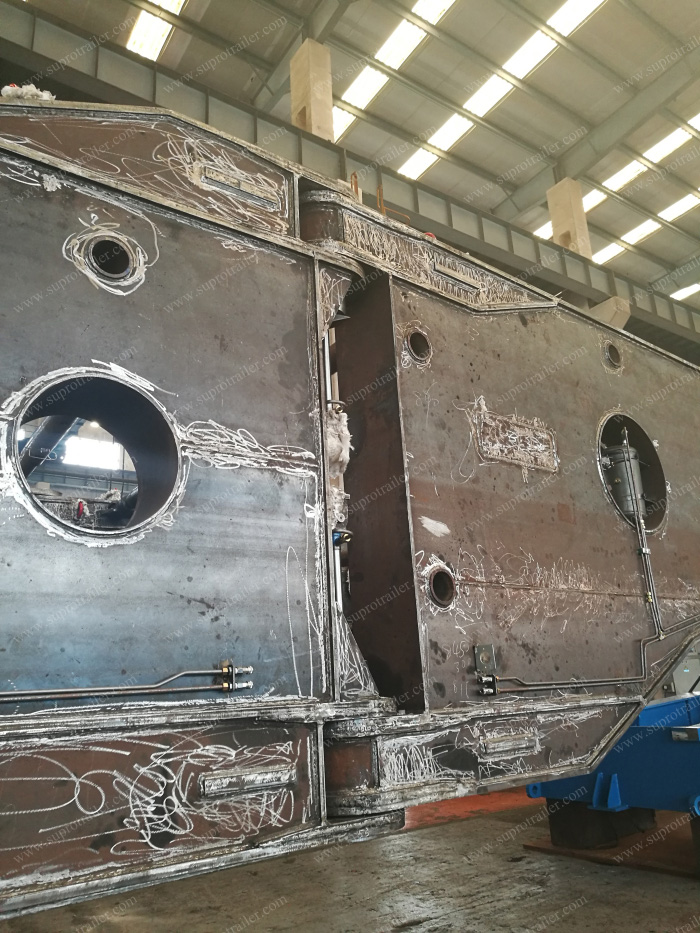

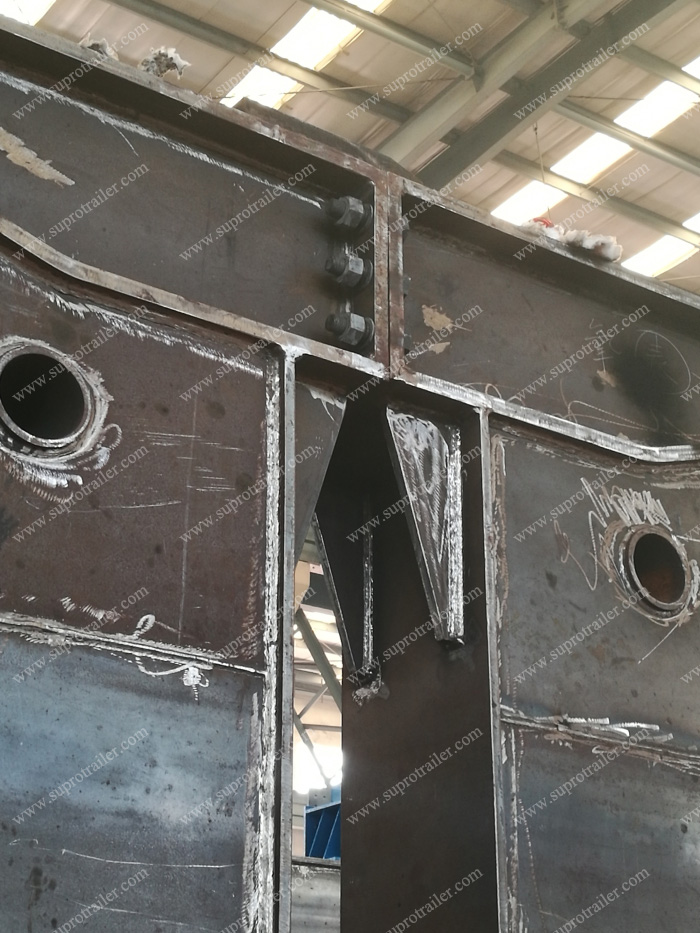

The loading beam combined with side beam by high strength bolts.

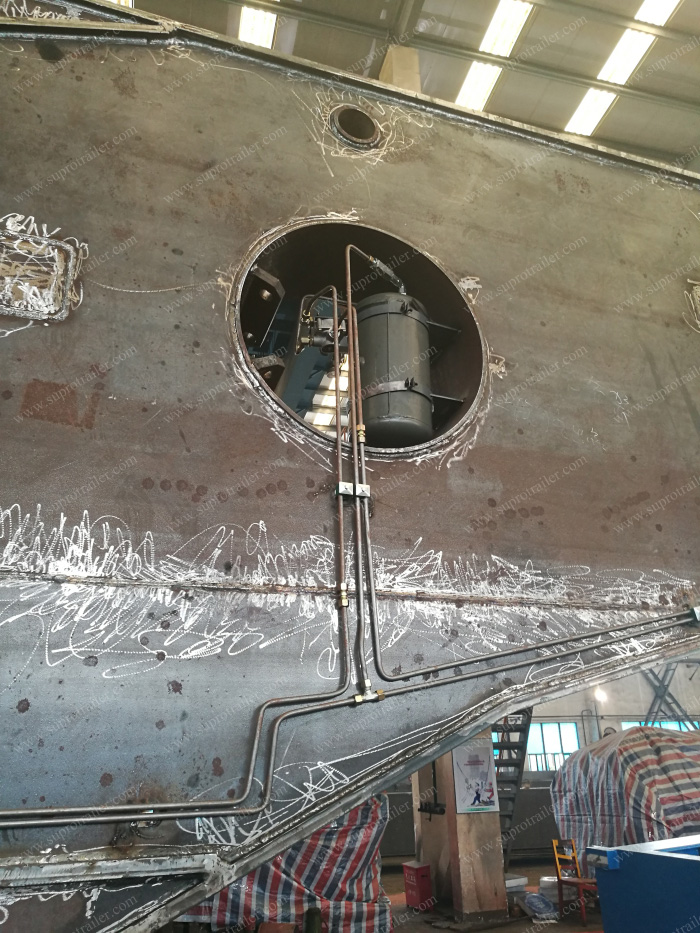

Air tank of the hydraulic system and air system.

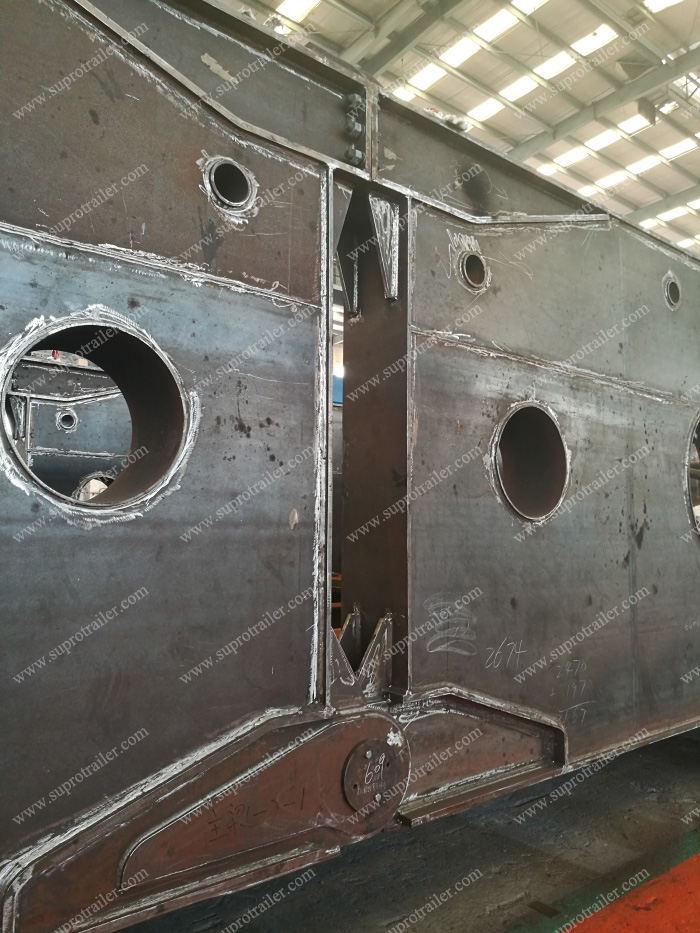

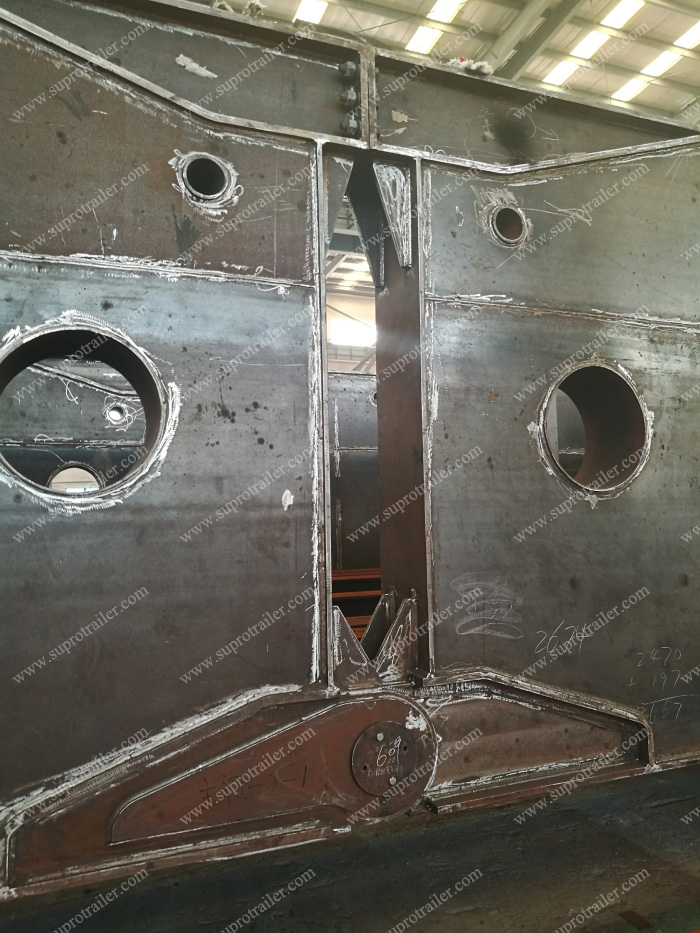

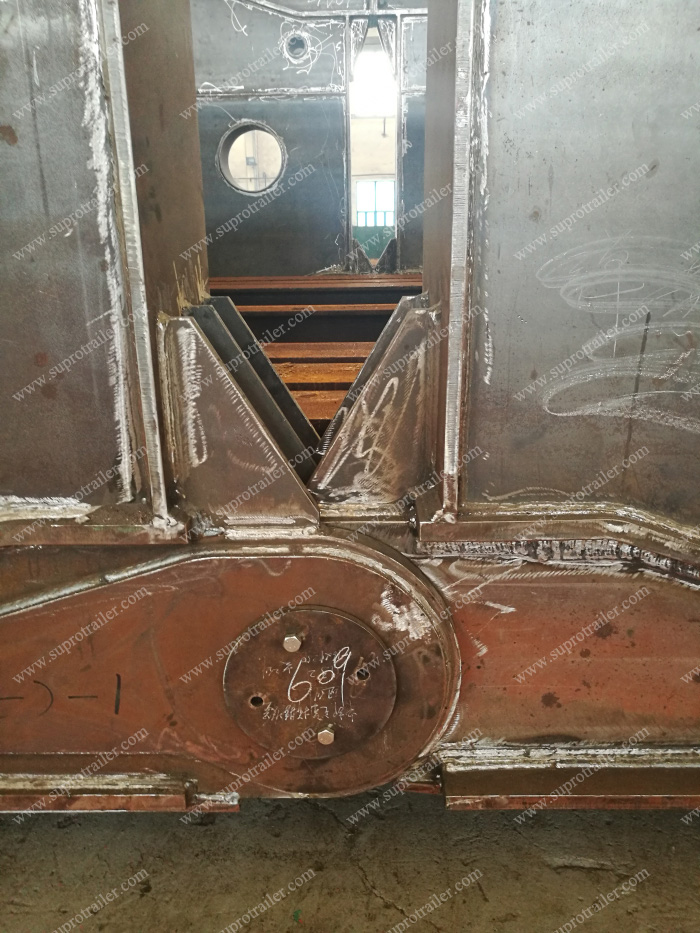

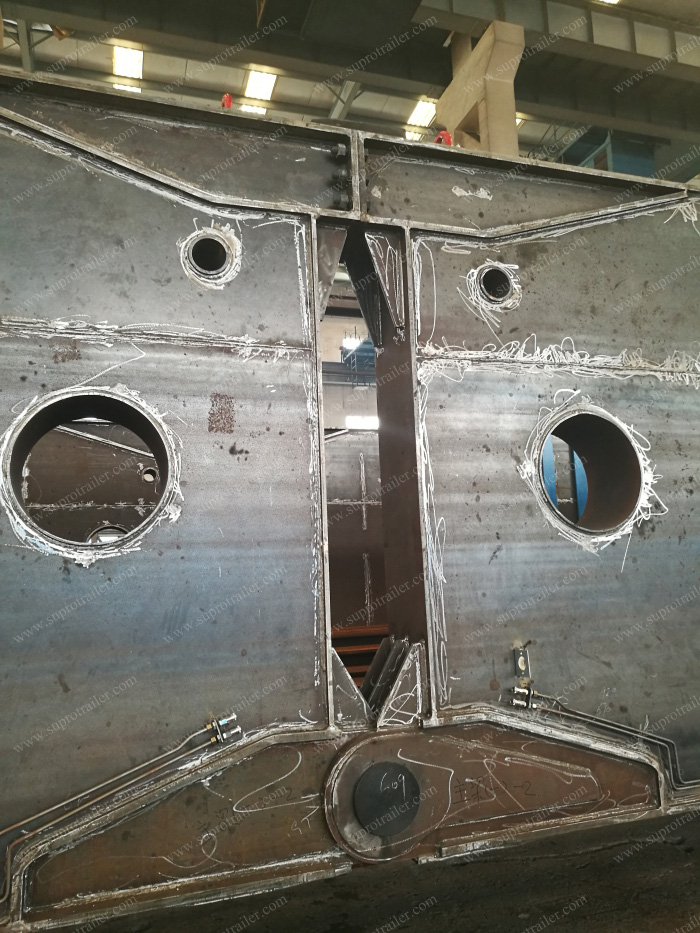

Combination between then loading beam and side beams

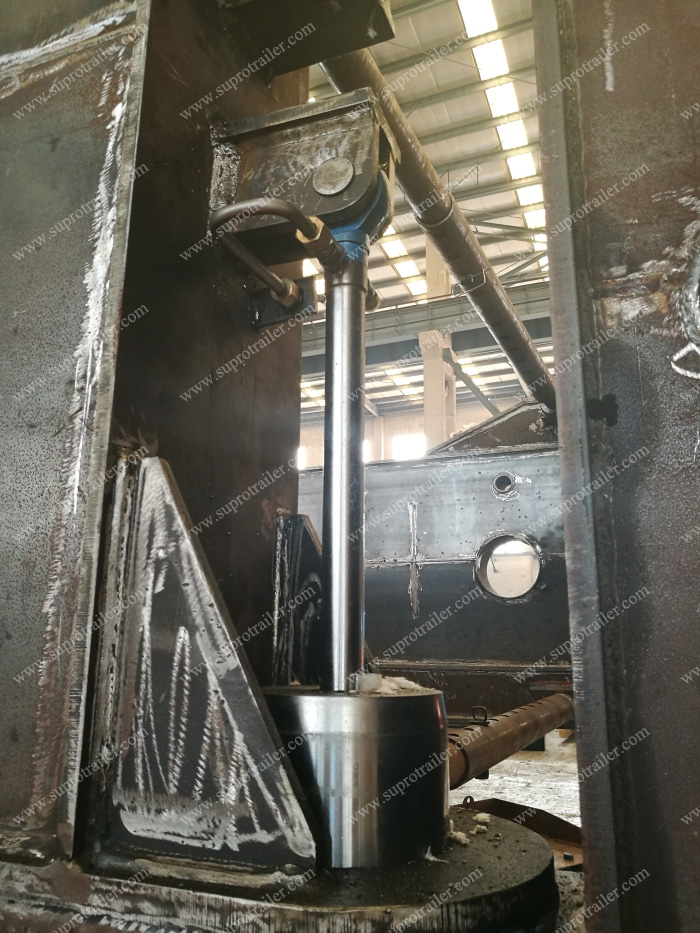

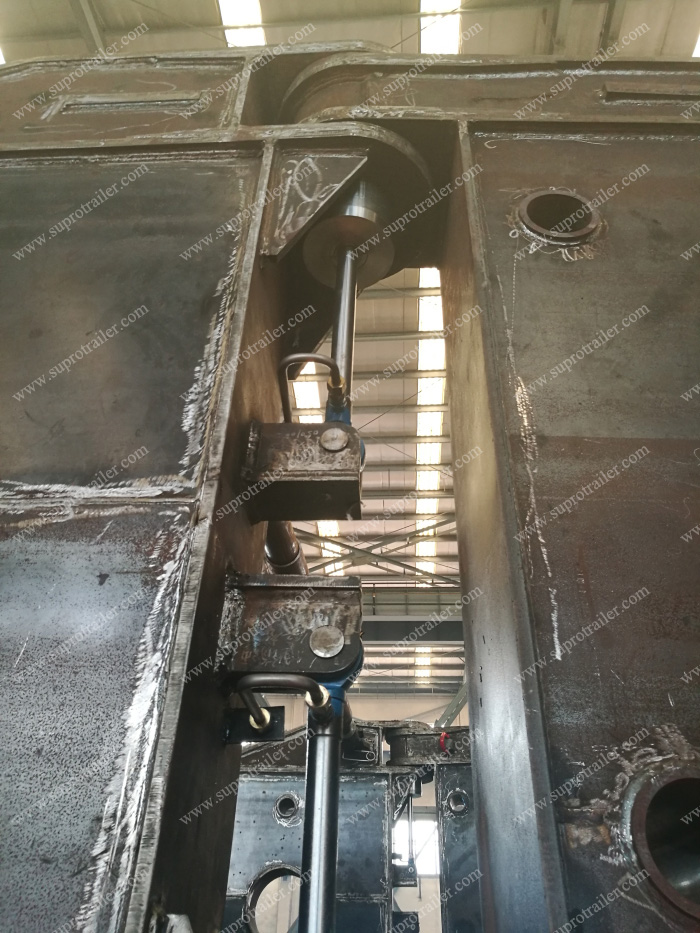

Hydraulic system of the combination between loading beam and side beam

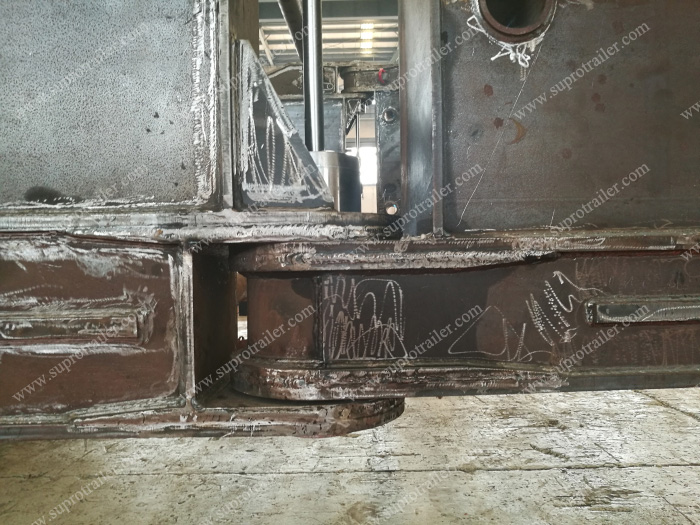

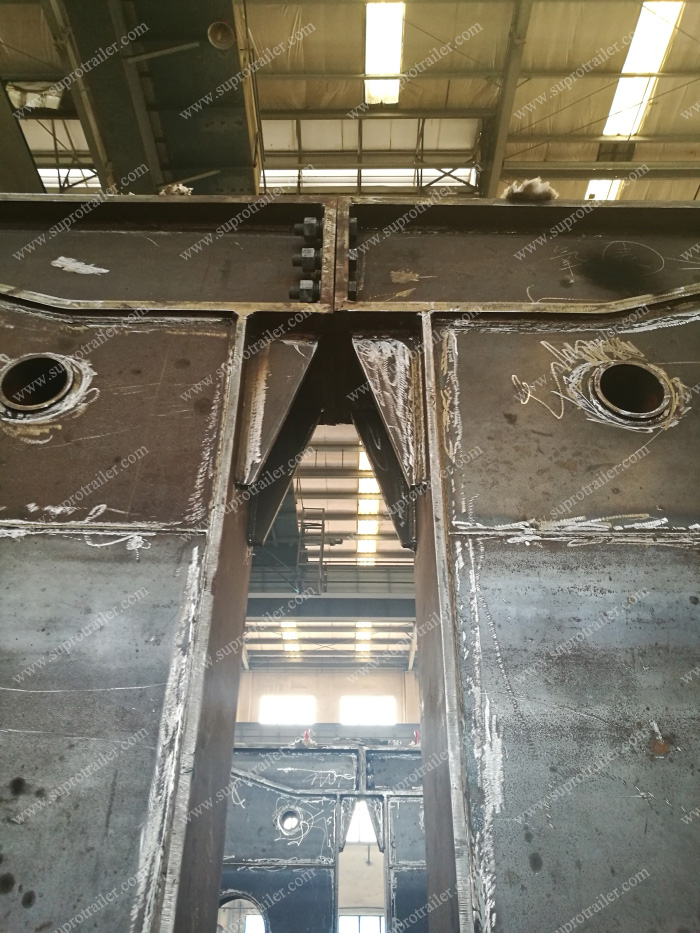

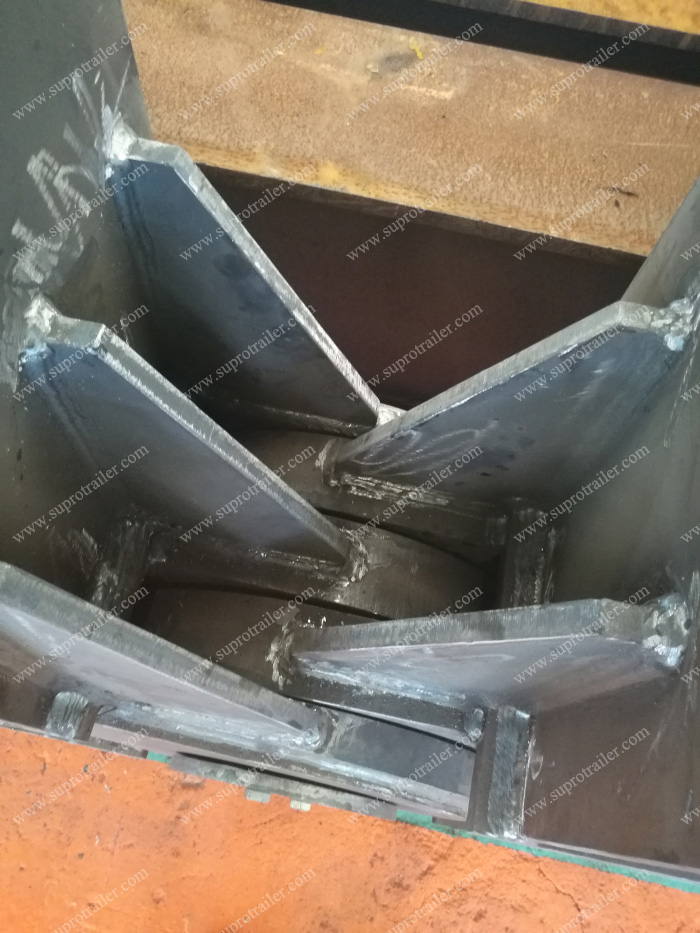

Combination between the 2pcs of the loading beams.
