Supro Trailer Welcome Any Tooling Customization for Your Special Semi Trailer!

❒Now days, the cargo of heavy transport is more heavier and be more oversize.So you need to use some toolings to help the oversize transport! Supro Trailer is the export to design and manufacture those toolings!

❒Supro Trailer has a professional engineer team to design the suitable toolings for your trailer. Whatever the Normal semi trailer or Hydraulic system semi trailer.

❒Supro Trailer has a strict quality control system to inspect the manufacturing of the transporters and provides good quality toolings and heavy transporters for overseas clients!

180 Tons Girder bridge for Dolly Semi Trailer

❒Our client is going to buy a new girder bridge to combine with their dolly trailer, and also they want to use a cross beam in the middle of the girder bridge to load the over width cargo. Also the load capacity should be 180 tons. The original ideas as below drawing shows.

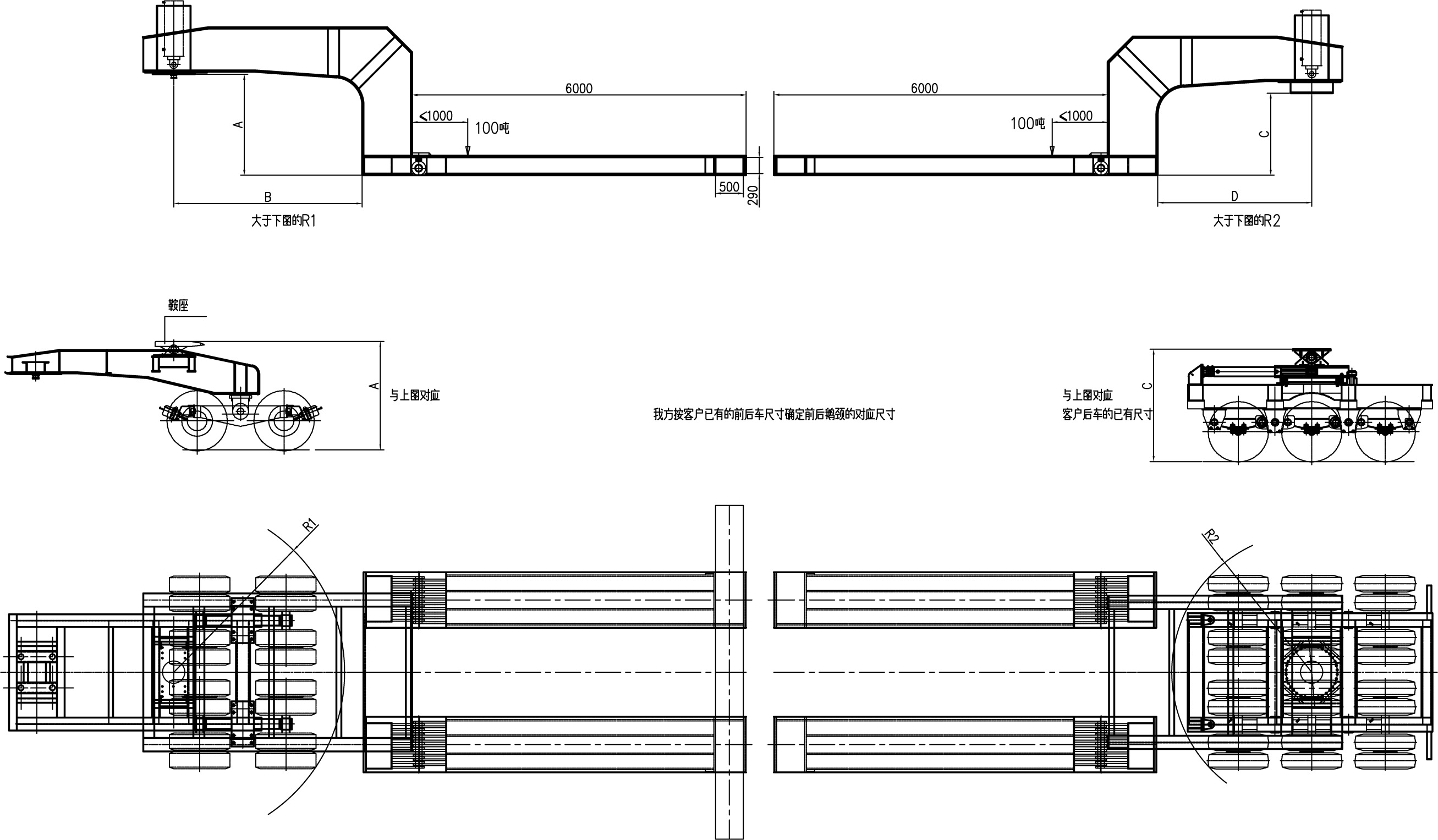

Original drawing of the client`s idea▼

❒After the discussion between our engineer team, we have denied the cross beam idea for over width cargo, cause it can not bear 180 tons cargo! It is not safe. But we suggest to use a combined plate for the oversize transport!

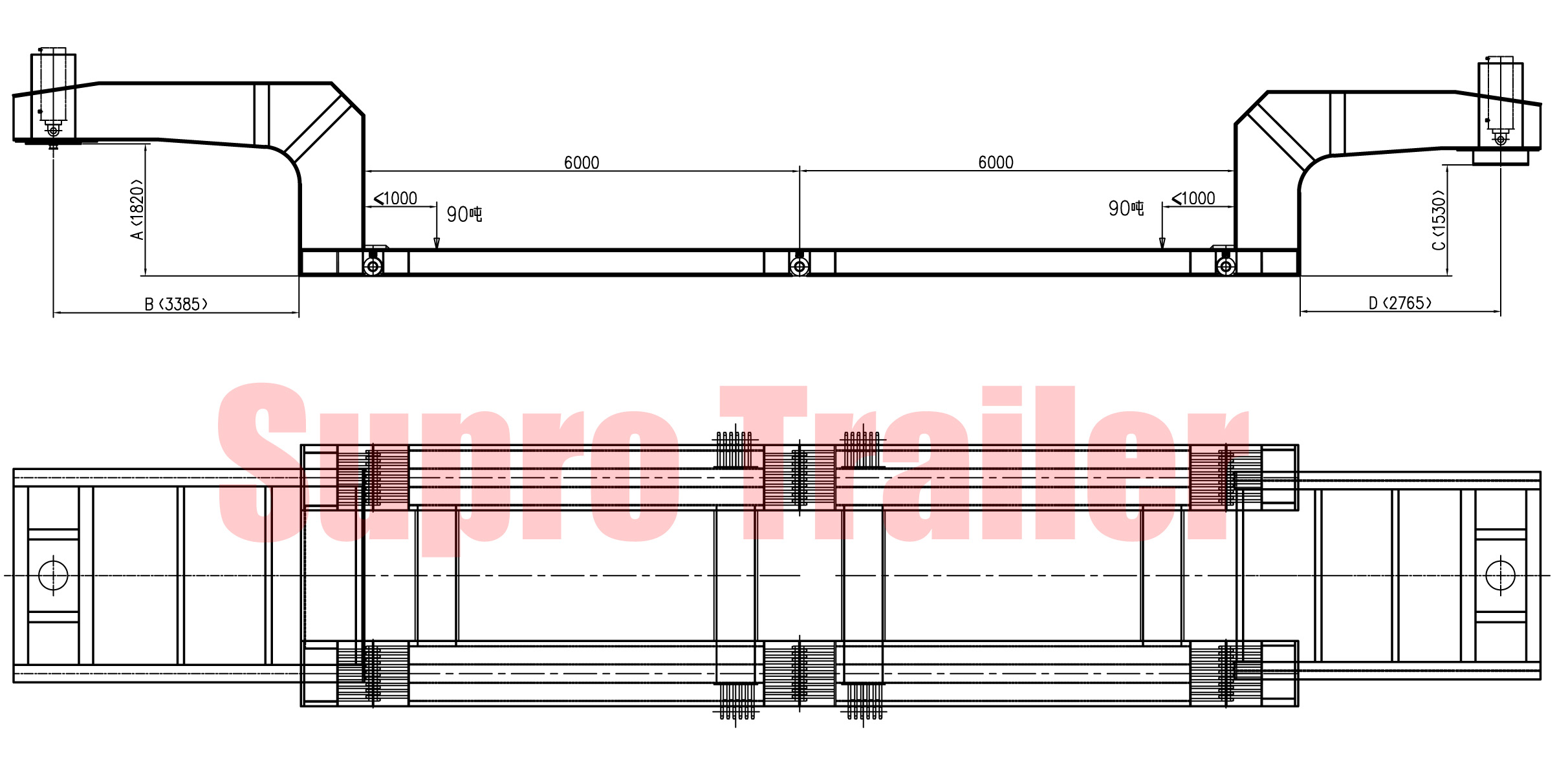

Final girder bridge drawing▼

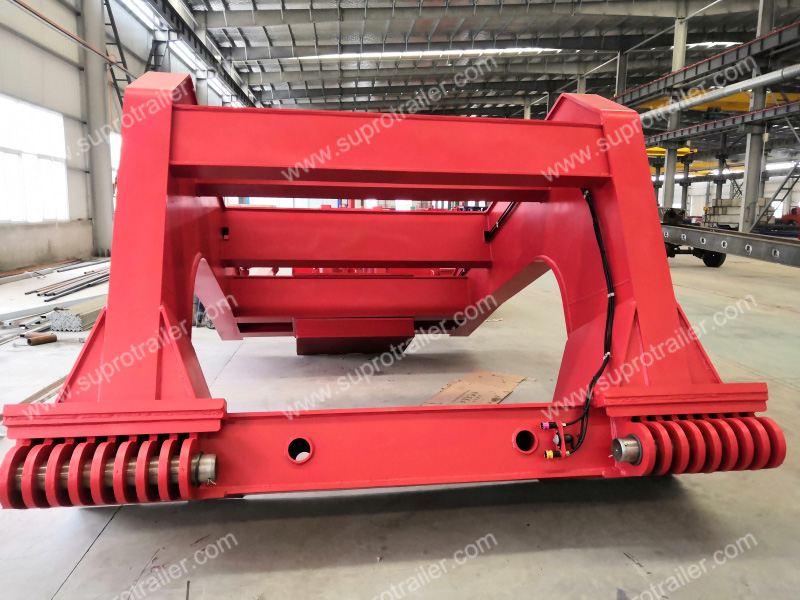

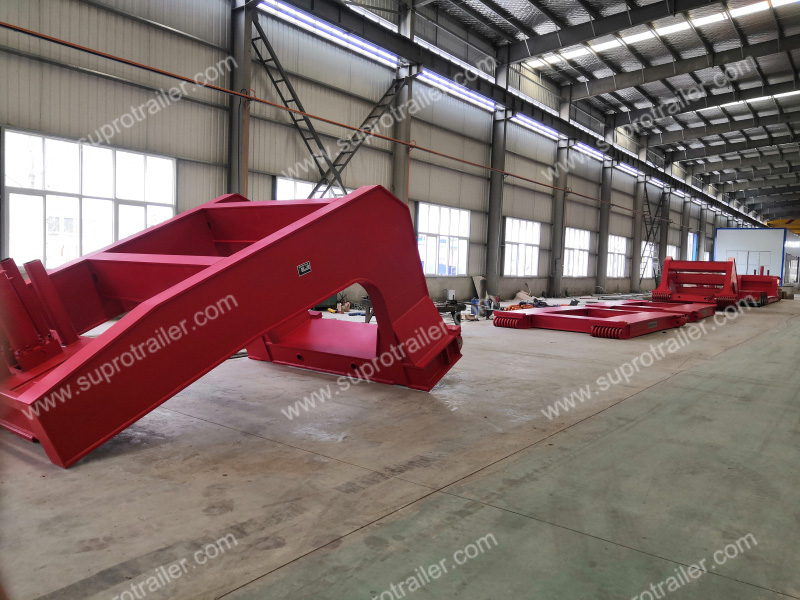

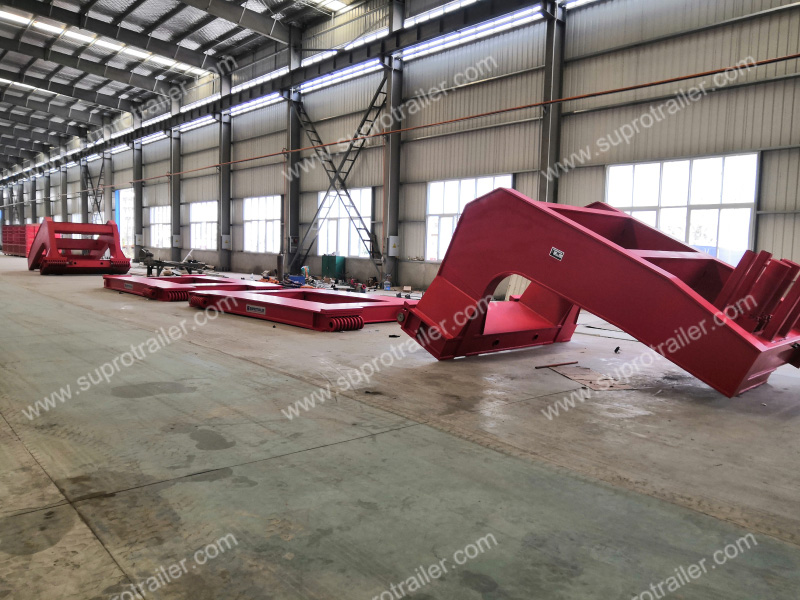

Overview of the finished Girder bridge▼

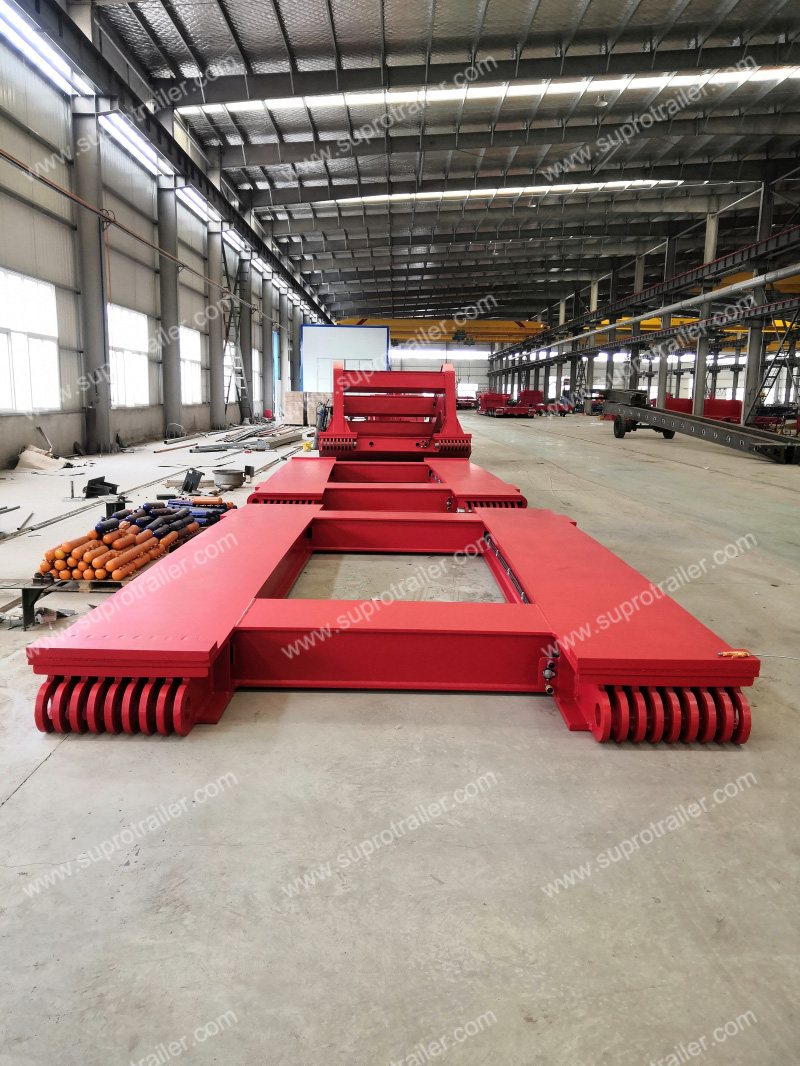

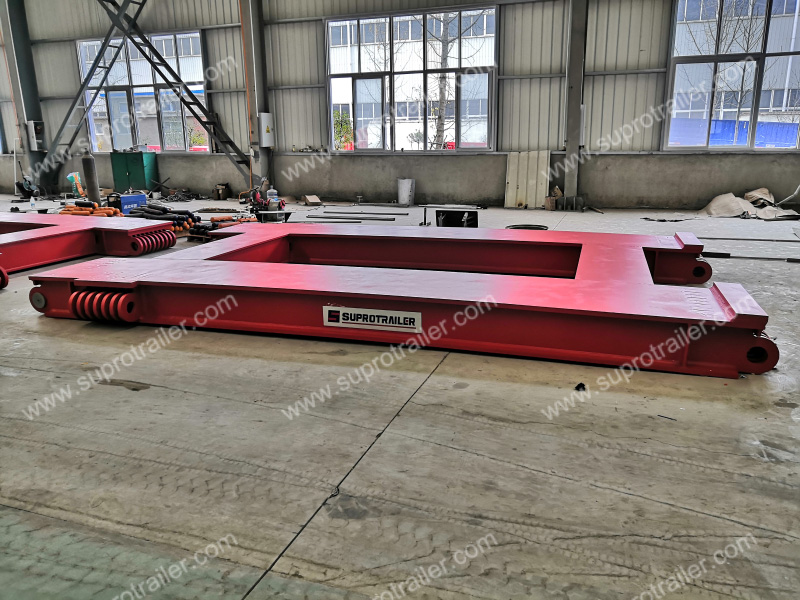

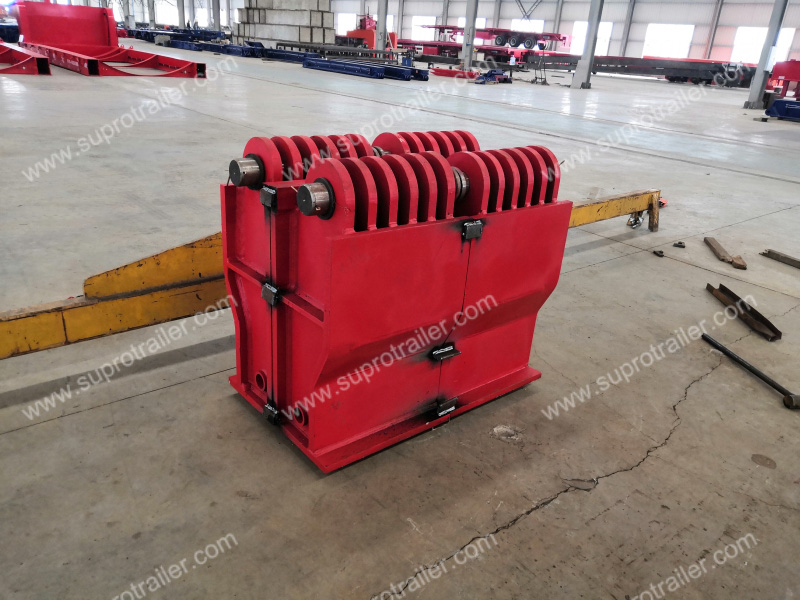

Widen plates for the middle combination files, which can meet over width cargo, and also meet 180 tons cargo! (4pcs welded together for sea freight) ▼

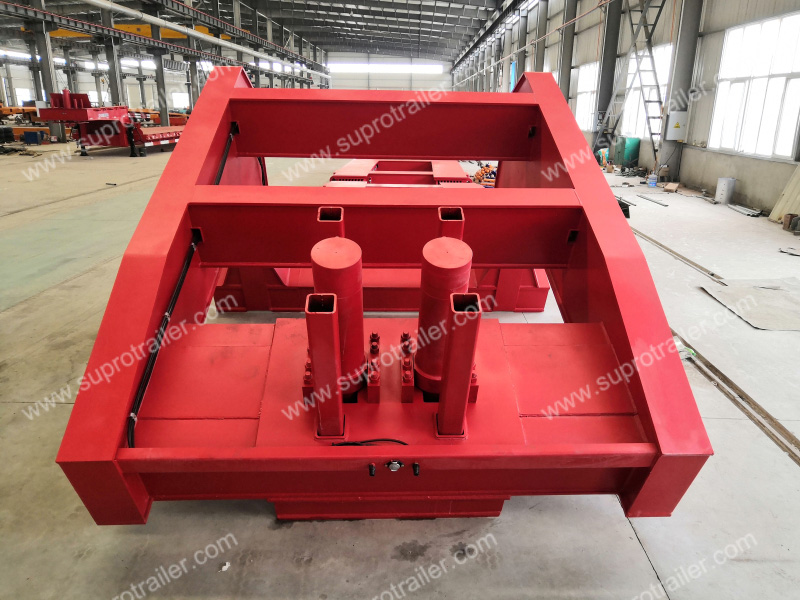

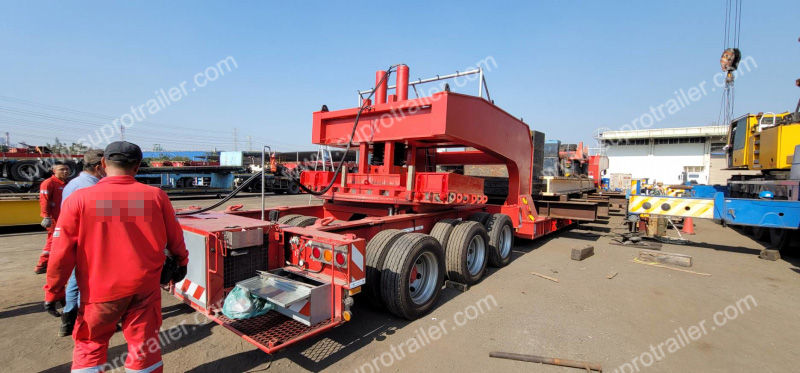

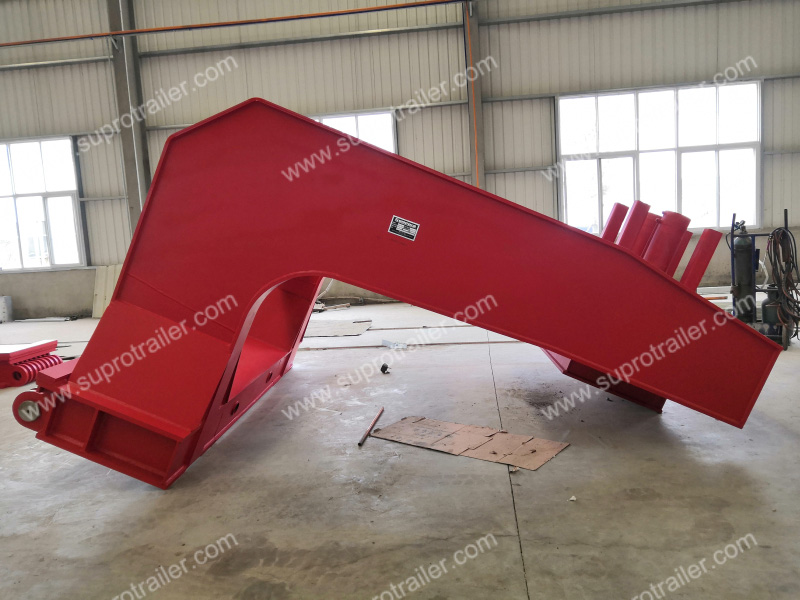

Hydraulic gooseneck with 2pcs lifting cylinders - 800mm lifting distance. ▼

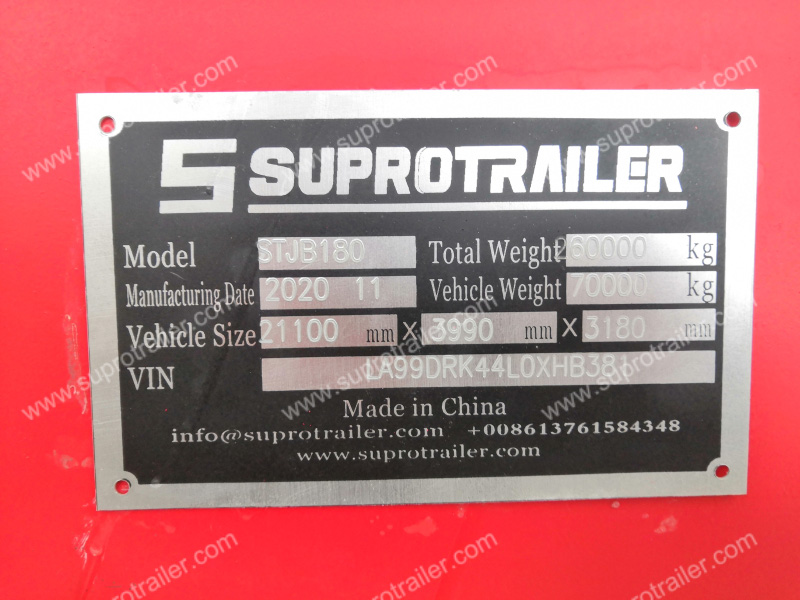

Vehicle identification plate▼

Cargo flatbed platform▼

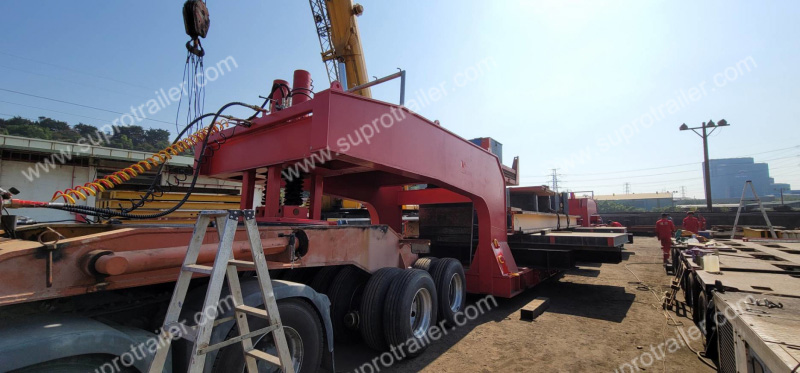

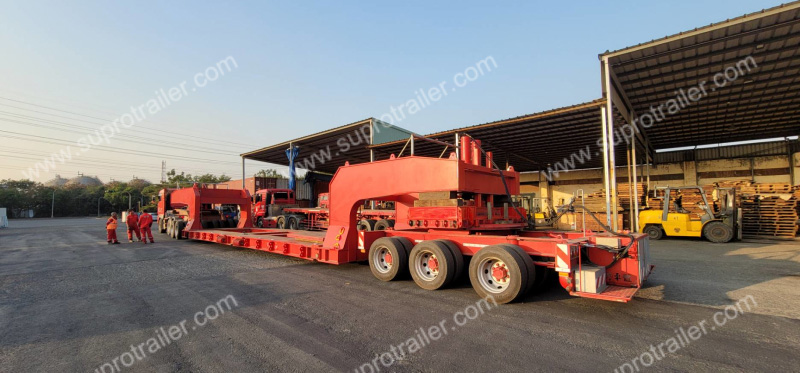

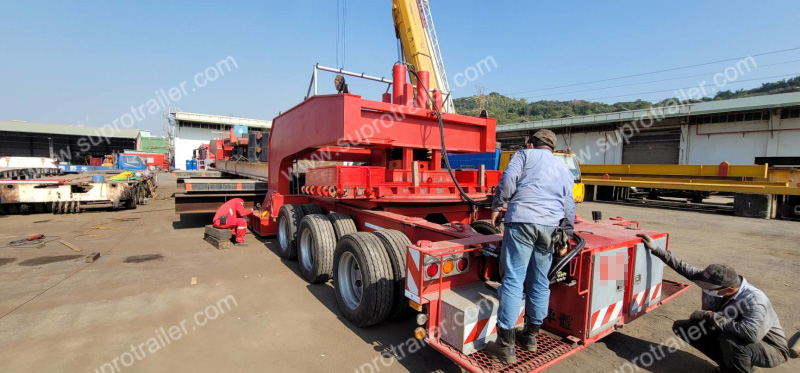

Finished assembly in client`s yard▼

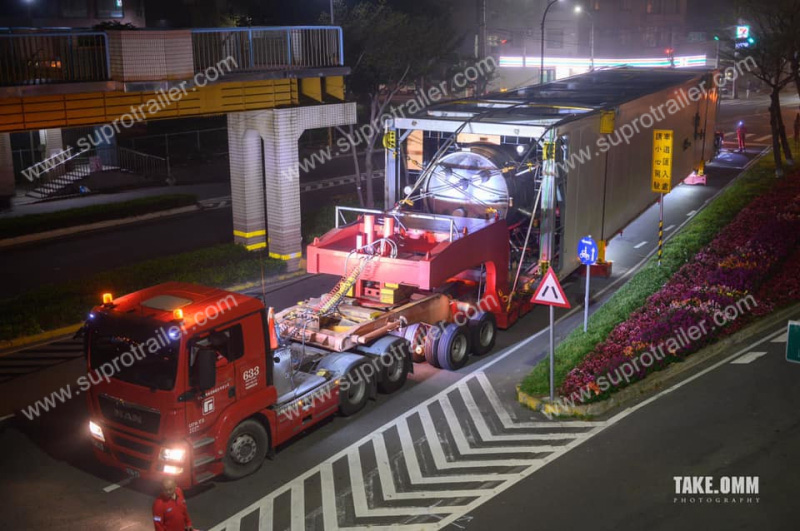

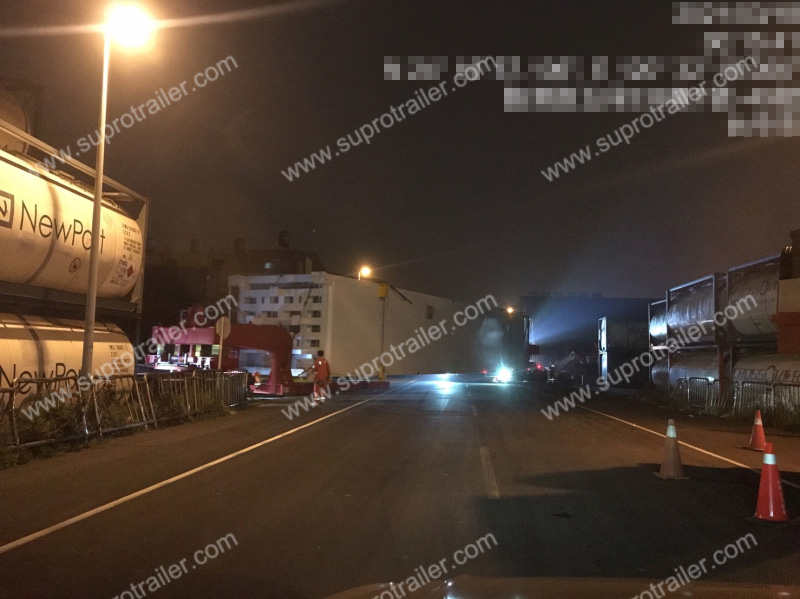

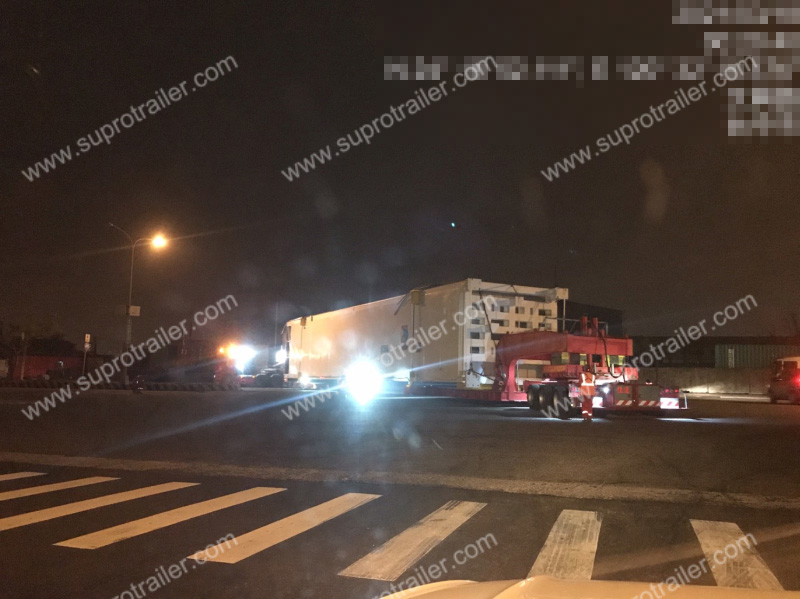

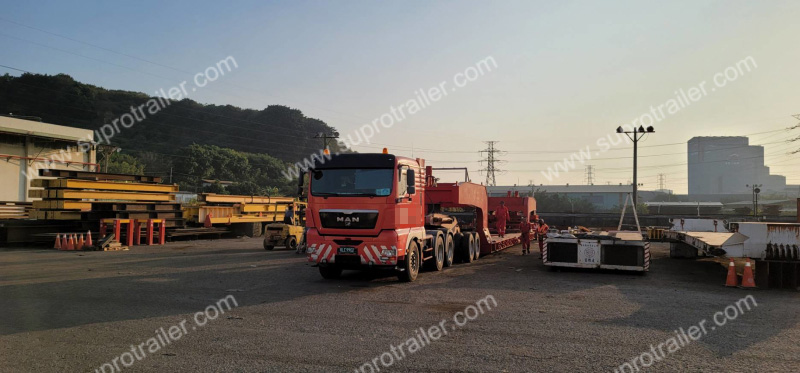

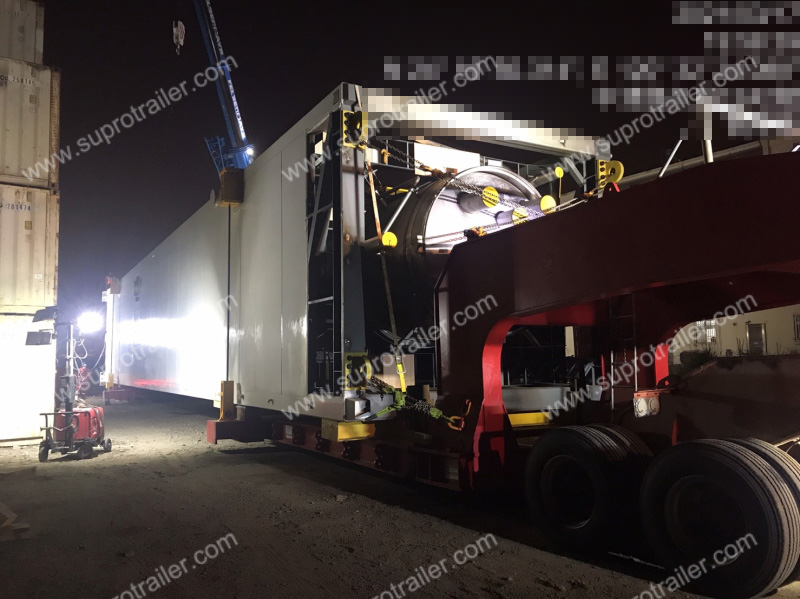

Working photos of the Girder bridge▼
