Performance Case

8 Axles Goldhofer SPMT for Argentina
Author:Supro Trailer

Supro Trailer- Self propelled modular transporter

Supro Trailer is a professional heavy transporter manufacturer in China, we produce hydraulic modular trailer and Self propelled modular transporter. And also, we made the transporters to combine with Germany Goldhofer trailer, Nicolas trailer and Scheuerle trailer.

And also, we are able to make a self propelled transporter to have a driven room - Shipyard Transporter

Goldhofer SPMT

Supro Trailer produce the Self propelled modular trailer to combine with the Goldhofer SPMT, and also, we could provide respective PPU for your SPMT trailer.

Supro Trailer could produce the Self propelled modular trailer to combine with Goldhofer SPMT, Nicolas SPMT and Scheuerle SPMT.

For the detail information of Supro SPMT Trailer, please visit the production information of it.

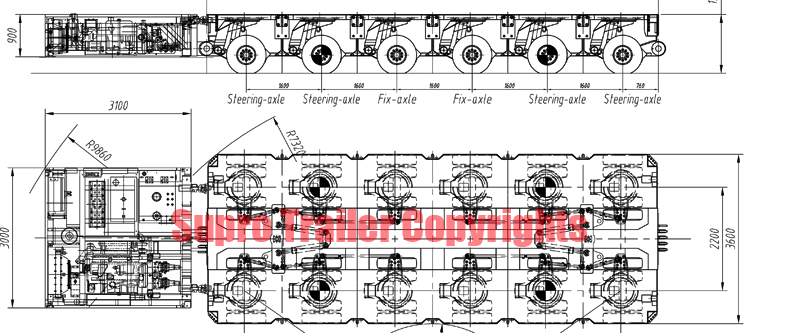

Specifications of Goldhofer SPMT

1.1 Payload at 5 km/h----------------------------approx. 240,000 kg

1.2 Dead weight of transporters----------------approx. 27,000 kg

1.3 Gross weight of transporter-----------------approx. 267,000 kg

1.4 Axle Line----------------------------------------6

1.5 Wheel bogies per axle line-------------------2

1.6 Number of wheel bogies---------------------12

1.7 Wheel bogie load 5 km/h--------------------approx. 6x 45,000 kg

1.8 Driving Wheel Bogies------------------------2

1.9 Brake Wheel Bogies--------------------------8

1.10 Tires-------------------------------------------48x 235/75-R17.5

1.11 Max. Traction per bogie--------------------80kN

1.12 Gradient Ability fully loaded ----------------8%

1.13 Max. speed fully loaded---------------------Approx. 5 km/h

1.14 Max. speed unloaded------------------------approx. 10 km/h

1.15 Platform height lowest-----------------------1.000mm

1.16 Platform height in driving condition--------1.300 mm

1.17 Axle load compensation----------------------± 300mm

1.18 Wheel bogie distance-------------------------1,600 mm

1.19 Wheel bogie track-----------------------------2,200 mm

1.20 Platform width---------------------------------3,600 mm

1.21 Platform length--------------------------------9,600 mm

goldhofer spmt trailer

Goldhofer SPMT  Spmt trailer

Self propelled modular trailer

Advatanges of Supro Trailer.

1.Abundant Experience on Hydraulic modular trailer. We started to produce heavy duty trailer since 1942 year, and we produced the first modular trailer in China. Our modular trailer can combine with Goldhofer THP/SL, Nicolas MDED, Scheuerle, Cometto etc.

2.Advanced technology. Supro Trailer has owned design on modular trailer. The load capacity can reach 50 tons per axle lines. This is much higher than Goldhofer modular trailer

3.High quality system. Supro trailer can get throught the CE certification of hydrulic trailer. We exported our trailers to Russia, England, France, Germany etc.

4.Professional technician team. Supro egnineers can design some toolings for your modular trailers. Such as spacer, gird bridge, drop deck bed, loading sharing beam, turntable etc.

5.The cost performance of Supro extendable trailer is much higher than Europe companies. Our price is much better, and the quality is good.
